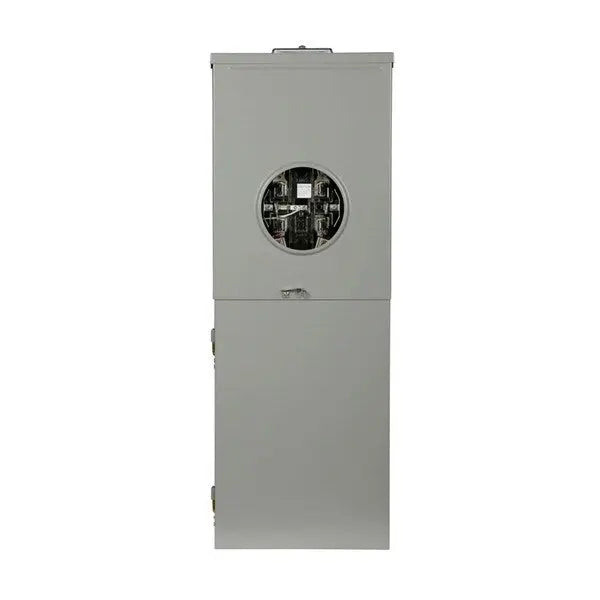

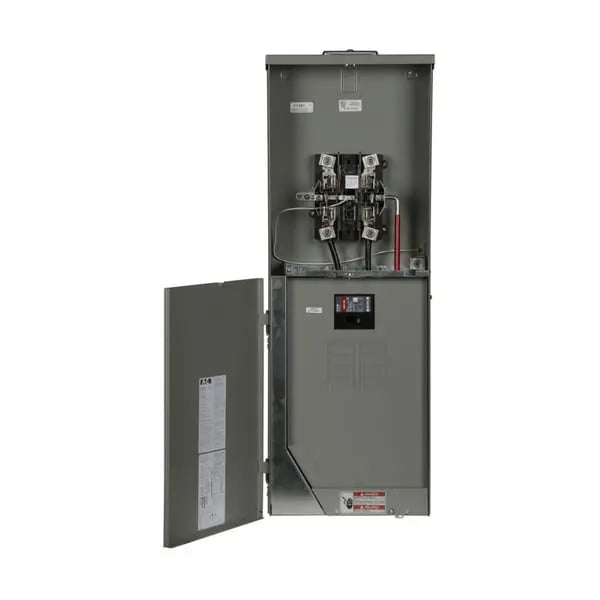

MBX816B200BTS - Eaton Resi Meter Breaker

The Eaton Residential Meter Breaker All-In-One unit combines metering and main breaker functions into a compact, weather-resistant enclosure—ideal for residential installations. With a 200A rating and durable aluminum construction, this all-in-one solution supports both bottom and top feed options for versatile installation.

This unit features a five-jaw socket, supports single-phase systems, and is designed for ringless metering applications. The integrated lever bypass offers utility personnel safe and easy access for meter servicing. Designed for use with Eaton BR breakers, it simplifies power distribution and provides secure, code-compliant operation.

Key Features:

• Type: Residential Meter Breaker, All-In-One
• Amperage: 200 A
• Material: Aluminum
• Enclosure Rating: NEMA 3R (Outdoor Rated)
• Feed: Bottom and Top Feed
• Wire Range: 6-350 KCMIL
• Interrupt Rating: 22 Kaic
• Socket: Five-Jaw
• Phase: Single-Phase
• Voltage: 120/240 VAC
• Mounting: Surface
• Breaker Compatibility: Used with BR Breakers
• Bypass Type: Lever Bypass
• Spaces/Circuits: 8 Circuits, 16 Spaces
• Metering Style: Ringless

This Eaton all-in-one meter breaker unit is a smart, streamlined solution that simplifies utility metering and load center setup for residential builds or upgrades.

Documents:

Brochures
Eaton Emergency Disconnect Options at a Glance

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - MBX816B200BTS
