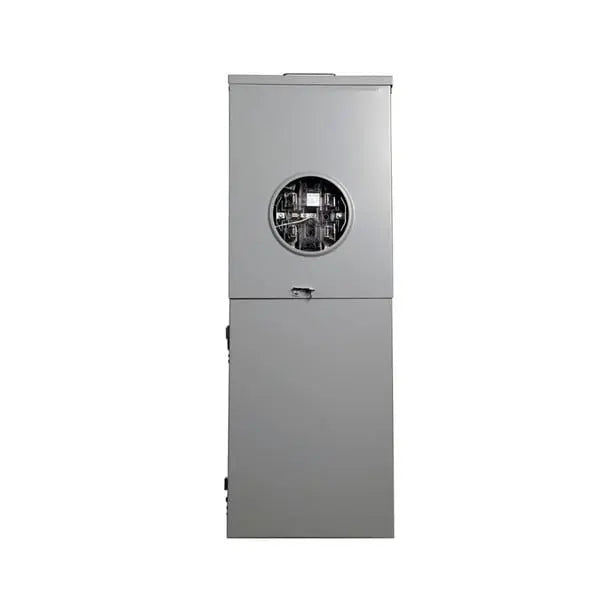

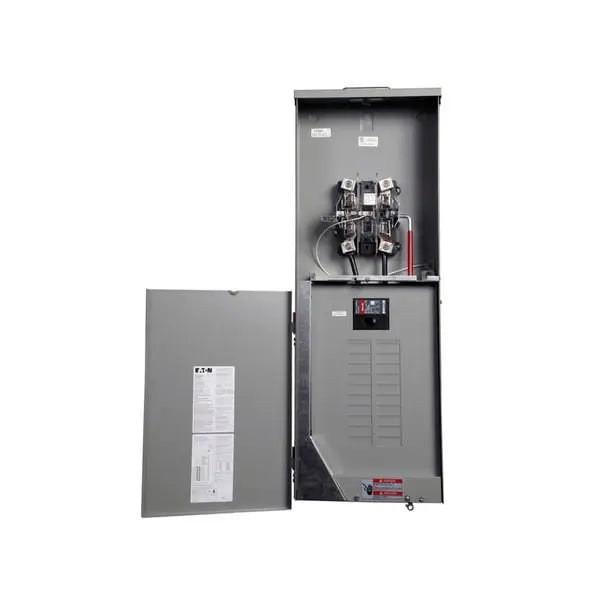

MBX2040B200BTS - Eaton Resi Meter Breaker

The Eaton Resi Meter Breaker is a high-performance, all-in-one solution designed for residential and light commercial applications. With a 200A rating and NEMA 3R protection, this meter breaker ensures reliable operation in both indoor and outdoor environments. It features a four-jaw configuration, making it ideal for single-phase systems and offers top and bottom mounting options for flexible installation.

This unit supports wire sizes from 6 AWG to 350 KCM22, with a Kaic rating of 22 kA, providing a secure and durable connection for your electrical system. Designed to be used with BR breakers, it operates at 120/240 VAC and includes a lever bypass for added safety and convenience.

Key Features:

• Type: Resi Meter Breaker, All-In-One
• Amperage Rating: 200 A
• Material: Aluminum
• Protection Rating: NEMA 3R (Weatherproof for outdoor use)
• Mounting: Surface Mount, Top and Bottom
• Wire Size Compatibility: 6-350 KCM22
• Kaic Rating: 22 kA
• Breaker Compatibility: Compatible with BR Breakers
• Voltage: 120/240 VAC
• Phase: Single-Phase
• Jaw Configuration: 4 Jaws
• Design: Ringless, Lever Bypass included
• Application: Residential and light commercial use

This Eaton Resi Meter Breaker offers a comprehensive, durable, and efficient solution for metering and circuit protection in residential and light commercial settings, ensuring both performance and safety.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - MBX2040B200BTS
