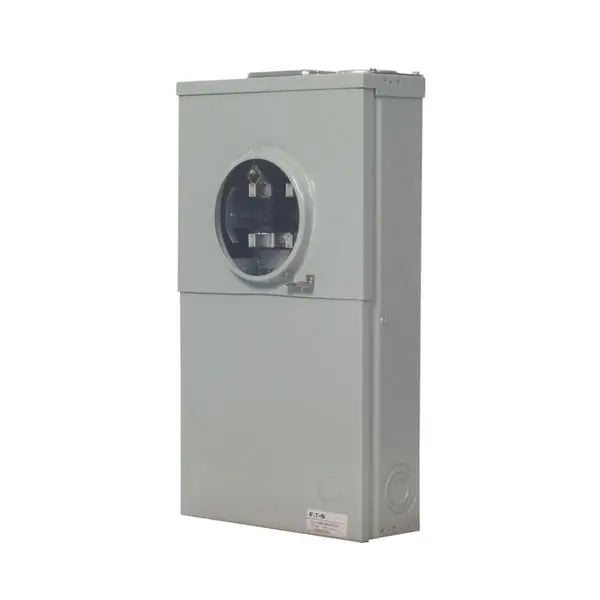

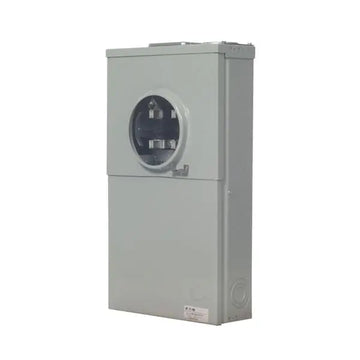

MBT48B200BTSBL - Meter Breaker

Meter Breaker is designed for reliable and efficient power distribution in residential and commercial applications. With a 200 A amperage rating, it supports 120/240 V systems and is suitable for 1-phase configurations. The aluminum bus material ensures superior conductivity and durability. This surface-mount unit provides a top/bottom feed, offering flexibility in installation.

Key Features:

• Amperage Rating: 200A
• Voltage Rating: 120/240V
• Phase: 1-Phase
• Bus Material: Aluminum
• Wire Size: 6 AWG to 350 Kcmil
• Dimensions: 14.44 in (Height) x 14.44 in (Width) x 4.94 in (Length)
• Weight: 33 LB
• Feed Type: Top/Bottom Feed

This meter breaker is a robust solution for ensuring safe and efficient power management in various applications, offering both convenience and reliability.

Documents:

Specifications and datasheets
Eaton Specification Sheet - MBT48B200BTSBL
