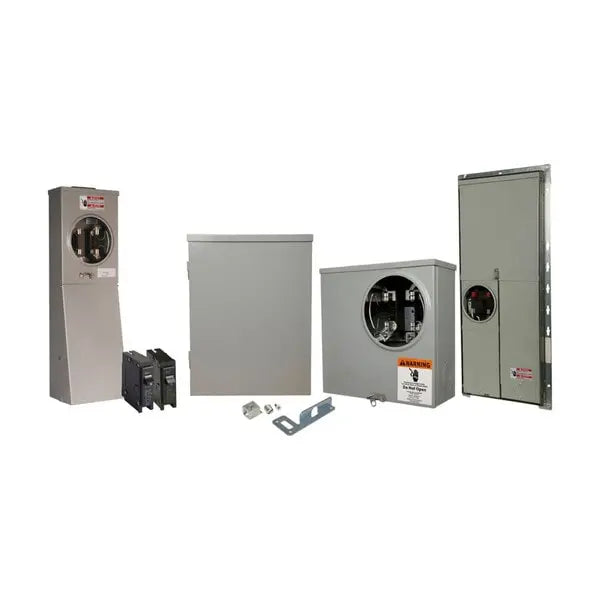

MBE4040PV200BTS - Eaton Solar Power Center Meter Breaker Type BR Solar-Ready 200A Copper Bus 225 Ampere Galvanized Steel Enclosure Overhead/Underground 22 Kaic Surface Mounting Single-Phase 120/240V

The Eaton Solar Power Center Meter Breaker is a robust, solar-ready solution designed for residential solar energy systems. Built with durability and versatility in mind, this Type BR meter breaker supports both overhead and underground feed applications, making it ideal for various installation requirements.

With a 200A main breaker and a 225A copper bus, this unit ensures reliable performance and optimal conductivity. Housed in a galvanized steel enclosure rated for surface mounting, it offers enhanced protection in demanding environments. The unit also meets the demands of modern solar installations with a high interrupt rating of 22 Kaic.

Key Features:

• Type: Solar Power Center Meter Breaker (Type BR)
• Solar Compatibility: Solar-Ready
• Amperage: 200 A Main Breaker
• Bus Material: Copper, 225 Ampere Rating
• Enclosure Material: Galvanized Steel
• Enclosure Rating: NEMA 3R (Outdoor Rated)
• Feed Options: Overhead/Underground
• Interrupt Rating: 22 Kaic
• Mounting: Surface Mount
• Phase: Single-Phase
• Voltage: 120/240 V

This Eaton Solar Power Center offers a complete and compliant solution for integrating solar energy into residential electrical systems, combining safety, efficiency, and ease of installation.

Documents:

Specifications and datasheets
Eaton Specification Sheet - MBE4040PV200BTS
