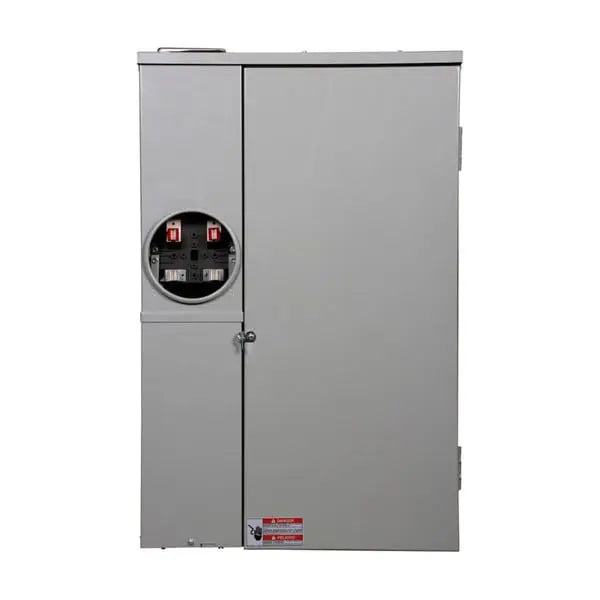

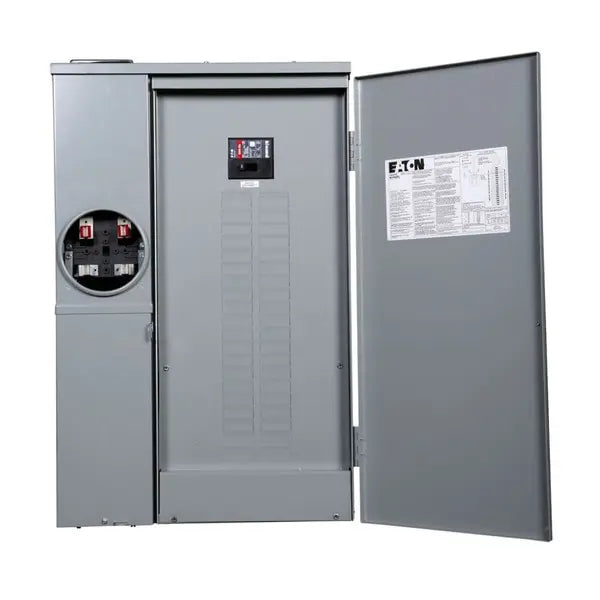

MBE4040B200TS - Meter Breaker

The Meter Breaker Combination Unit is a versatile solution designed for residential and light commercial metering applications. This all-in-one unit integrates both a meter socket and a load center, simplifying installation and enhancing efficiency. With a 200 Amp main capacity, aluminum bus construction, and support for up to 40 poles and circuits, it’s built to handle substantial electrical loads while maintaining a compact footprint.

Key Features:

• Product Type: Meter Breaker Combination Unit
• Main Amperage: 200 Amps
• Voltage Rating: 120/240V AC
• Breaker Type: BR Breaker Compatible
• Bus Material: Aluminum for lightweight durability
• Poles/Circuits: 40 Poles / 40 Circuits
• Wire Size Range: 6 AWG to 250 kcmil
• Meter Socket: 1 socket, 4 jaws
• Overall Dimensions:
• Height: 34.17 inches
• Width: 2.25 inches
• Length: 5.31 inches
• Weight: 57 lbs
• Application: Ideal for residential service entrance applications

This meter breaker is engineered for ease of installation and long-term performance, making it a dependable choice for utility metering and power distribution.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - MBE4040B200TS
