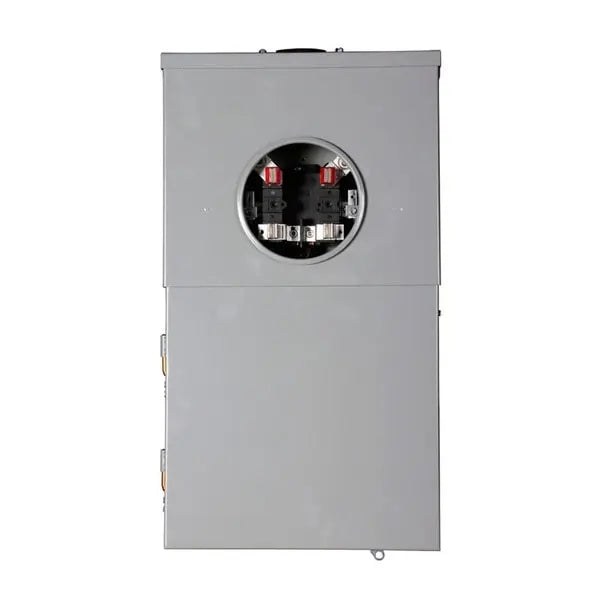

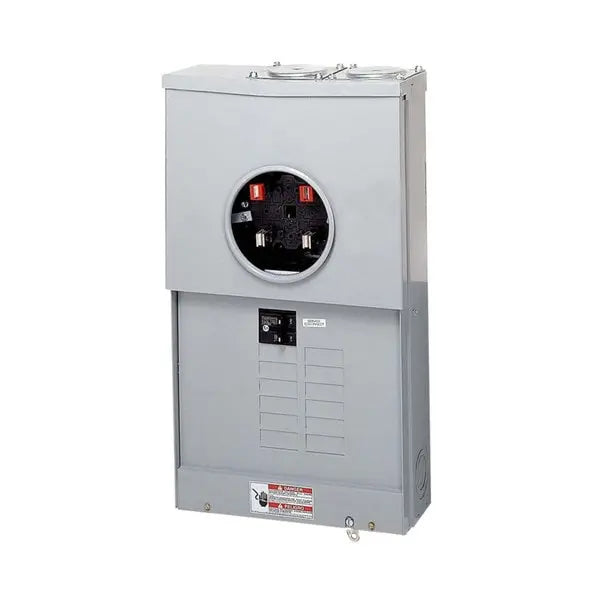

MBE1224B100TS - Eaton Meter Breaker Euserc Type BR

The Eaton Meter Breaker EUSERC Type BR is a versatile and reliable all-in-one unit designed to provide electrical metering and circuit protection for residential applications. Featuring the BR2100 main breaker with a 100A rating, this meter breaker is designed for 120/240V single-phase systems. The unit includes 12 spaces and 24 circuits, offering ample capacity for residential power distribution. The four-jaw ringless meter socket is ideal for utility metering, and the unit’s 10 kAIC short-circuit rating ensures safe and reliable operation. Constructed with an aluminum bus for enhanced conductivity, this meter breaker is designed for overhead feed applications and is surface-mountable for convenient installation.

Key Features:

• Product Type: Meter Breaker EUSERC Type BR
• Main Breaker: BR2100, 100A, 120/240V
• Meter Socket: Four-jaw, ringless socket for utility metering
• Spaces & Circuits: 12 Spaces, 24 Circuits
• Short-Circuit Rating: 10 kAIC (Maximum available short-circuit current)
• Bus Material: Aluminum bus for reliable conductivity
• Conductor Size: 14-1/0 AWG for line and load terminals
• Mounting Type: Surface mounting for easy installation
• Feed Type: Overhead feed configuration
• Socket Type: One socket for utility metering
• Box Size: C
• Application: Residential service and distribution, 120/240V single-phase

This Eaton Meter Breaker is a durable and efficient solution for residential electrical systems, combining metering and protection in one convenient unit for overhead feed installations.

Documents:

Catalogs
Residential and Light Commercial, Metering Products, Volume 1 Tab 4

Specifications and datasheets
Eaton Specification Sheet - MBE1224B100TS
