MB816B200BTSG - Eaton Resi Meter Breaker

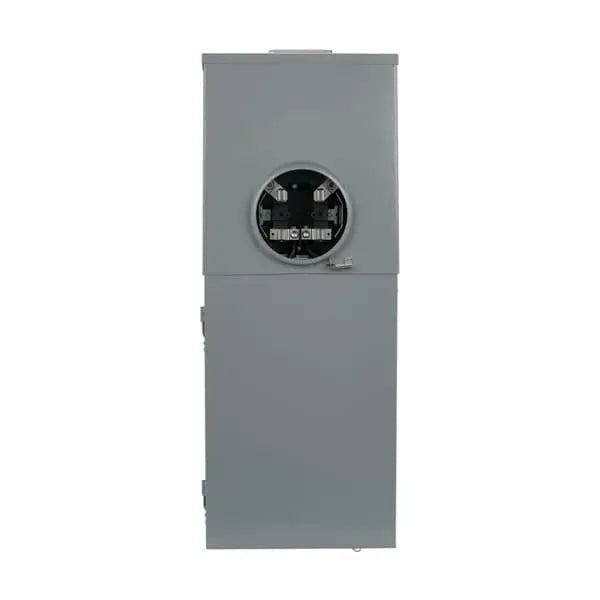

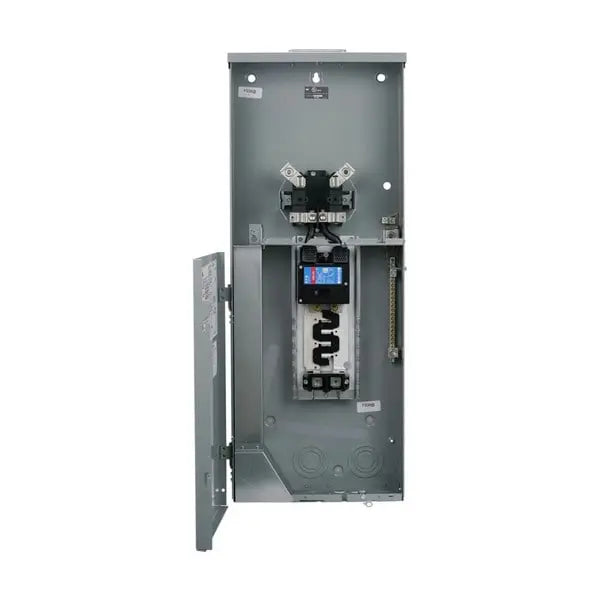

The Eaton Residential Meter Breaker – All-In-One (FTL) is a compact, reliable solution that combines metering and circuit protection in a single enclosure, designed for residential applications. This 200A ringless meter breaker supports single-phase, 120/240 VAC systems and is compatible with BR breakers. Constructed with a durable aluminum bus, it features a NEMA 3R rated enclosure for outdoor use and allows for top and bottom feed flexibility. The unit supports surface mounting, includes a four-jaw meter socket, and offers a 10kAIC interrupting rating for dependable fault protection. It accommodates 6–350 KCMIL conductors and accepts a CSR2200 main breaker.

Key Features:

• Product Type: Residential All-In-One Meter Breaker
• Amperage Rating: 200 A
• Voltage Rating: 120/240 VAC
• Phase: Single-Phase
• Mounting: Surface Mount
• Enclosure Type: NEMA 3R (Outdoor Rated)
• Feed Type: Top and Bottom Feed
• Bus Material: Aluminum
• Interrupt Rating: 10 kAIC
• Breaker Compatibility: BR Series, Main Breaker CSR2200
• Meter Socket: Four-Jaw, Ringless
• Circuit Spaces: 8
• Wire Range: 6–350 KCMIL
• Application: Residential Metering and Loadcenter in One Compact Unit

The Eaton Resi Meter Breaker – All-In-One provides a streamlined, code-compliant solution ideal for modern residential installations requiring durable, space-saving electrical distribution.

Documents:

Brochures
Eaton Emergency Disconnect Options at a Glance

Specifications and datasheets
Eaton Specification Sheet - MB816B200BTSG
