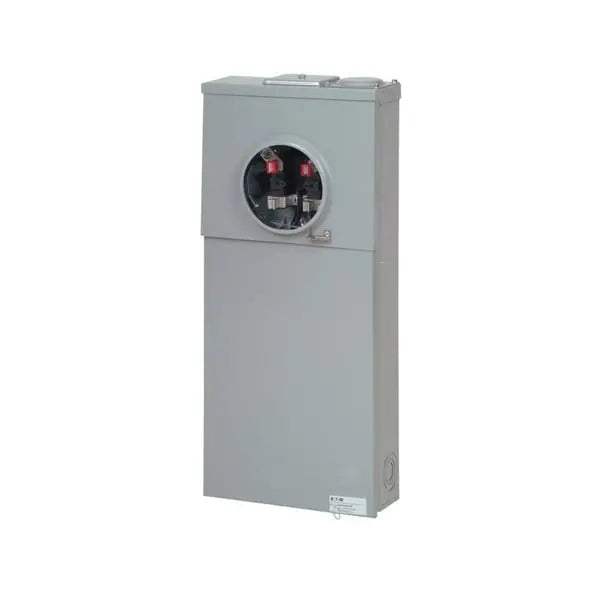

MB816B200BTSBL - Meter Breaker

The Meter Breaker is a high-performance electrical solution designed for residential or light commercial use. Rated for 200A and capable of handling 120/240V AC, this surface-mount meter breaker features 4 jaws for secure metering connections. With a robust aluminum bus material, it offers excellent conductivity and durability. The unit is built to be compact, with a length of 5.38 inches, width of 14.44 inches, and height of 32.38 inches. Weighing 41 lbs, this meter breaker is designed to provide reliable overcurrent protection while allowing for precise metering.

Key Features:

• Product Type: Meter Breaker
• Amperage Rating: 200 A
• Voltage Rating: 120/240V AC
• Phase Configuration: Single-Phase
• Mounting Style: Surface Mount
• Jaws: 4 Jaws for secure connections
• Material: Aluminum Bus (for enhanced conductivity)
• Dimensions:
• Length: 5.38 inches
• Width: 14.44 inches
• Height: 32.38 inches
• Weight: 41 lbs
• Application: Residential or light commercial metering and circuit protection
• Certifications: UL Listed

The Meter Breaker ensures reliable electrical service with easy installation, making it ideal for secure metering in both new and retrofit installations.

Documents:

Specifications and datasheets
Eaton Specification Sheet - MB816B200BTSBL
