MB816B200BTS - MTR-BRKR BR 8/16 CKT MB 200A BTM/Top Feed Surf MNT

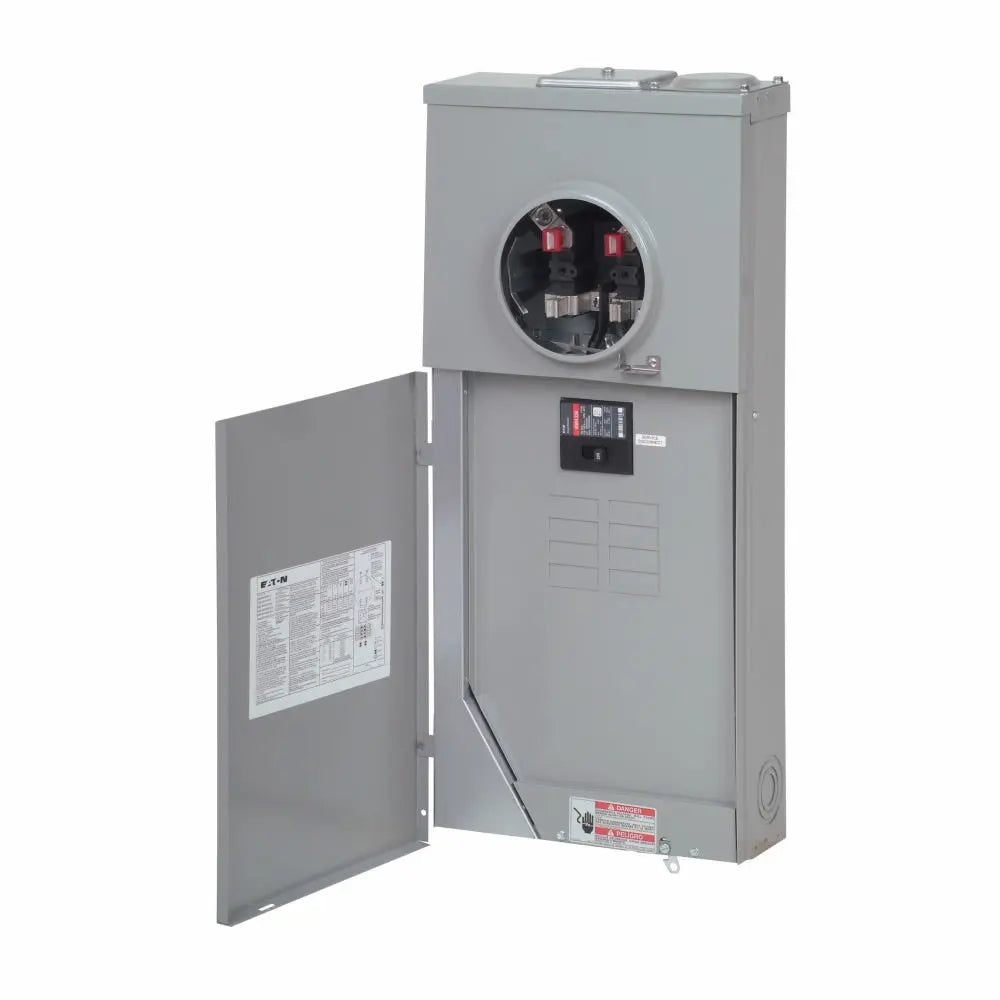

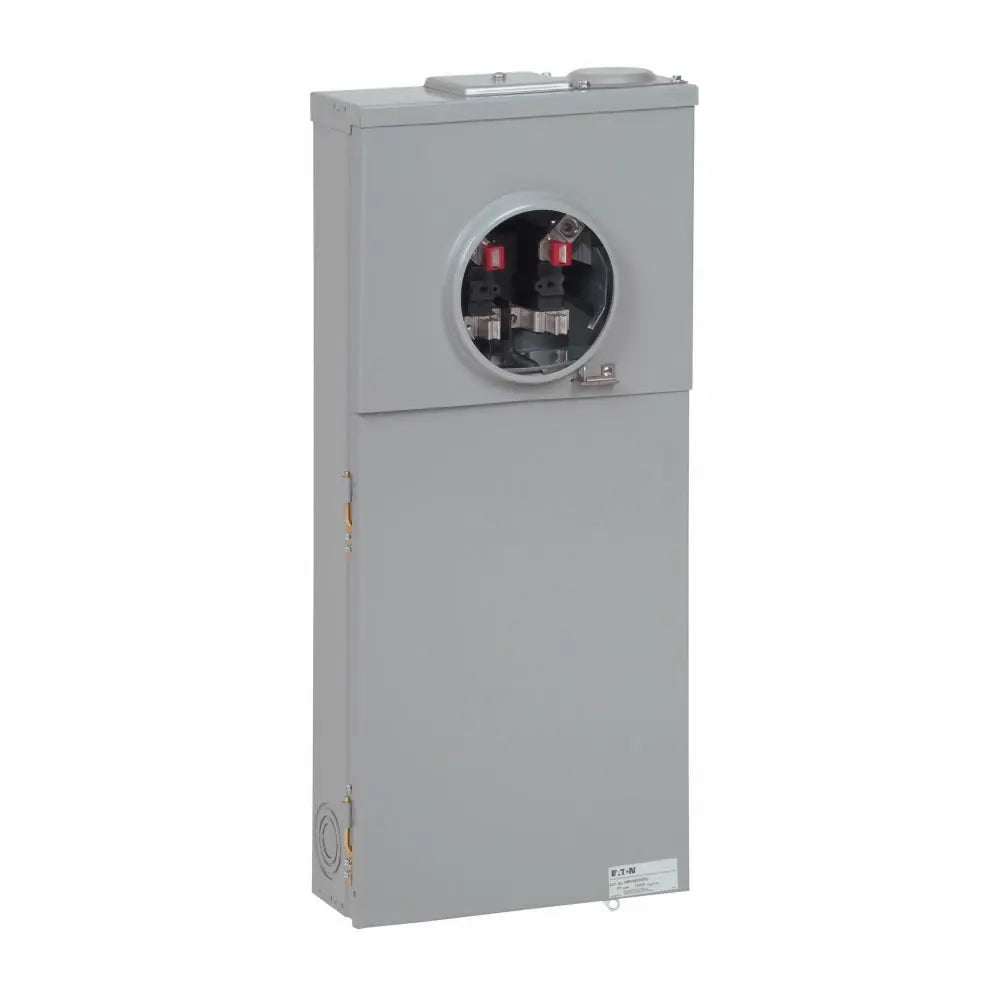

Comprehensive Overview of the MB816B200BTS Surface Mount Meter Socket

MTR-BRKR BR 8/16 CKT MB 200A BTM/Top Feed Surf MNT
Meter Socket, 200 A, 32.38 In Overall Height, Surface Mount, 1 Phase, 14.44 In Overall Width, 5.38 In Overall Length, 16 Circuits, 4 Jaws, 120/240 V Ac, #6 Awg to 350 Kcmil Wire Size, Aluminum Bus Material, Top/Bottom Feed, 40.62 LB

Key Features:

• Accessory type: Meter socket
• Dimensions: 5.38 in × 14.44 in × 32.38 in
• Enclosure type: NEMA 3R
• Feed type: Top / bottom
• For use with: Type BR breakers
• Made in USA: Yes
• Mounting type: Surface mount
• Number of circuits: 16
• Number of jaws: 4
• Overall height: 32.38 in
• Overall width: 14.44 in
• Package quantity: 1 carton
• Standards met: UL Listed


Documents:

Specifications and datasheets
Eaton Specification Sheet - MB816B200BTS

Robust Design and Electrical Capacity

The MB816B200BTS surface mount meter socket is engineered to provide reliable electrical service with its 200-amp capacity. Designed to support 8 to 16 circuit breakers, it offers versatility for various residential and commercial applications. Its robust build ensures long-term durability while maintaining safety standards required for meter sockets. This product supports both bottom and top feed configurations, which makes it highly adaptable for different installation needs. The durable housing is made to withstand environmental stresses, providing excellent protection for internal components and enabling consistent service performance.

Flexible Installation Features

This surface mount meter socket is designed with installer convenience in mind. The dual feed capabilities allow technicians to choose between bottom or top feed wiring, depending on the existing infrastructure and site requirements. Its surface mount design simplifies installation on wall surfaces without the need for recessed mounting boxes, reducing labor and material costs. The compact size ensures that the unit fits in tight spaces while offering easy access for meter reading and maintenance, making it an efficient choice for modern electrical setups.

Safety and Compliance Assurance

The MB816B200BTS emphasizes protection and compliance by adhering to key industry standards for meter sockets. It features secure breaker compartments to prevent accidental contact with energized parts and is designed to maintain integrity under electrical load stresses. The sealed enclosure helps prevent moisture ingress, reducing the risk of corrosion or electrical faults. This surface mount meter socket is a dependable option that meets electrical code requirements, ensuring peace of mind for both installers and end users looking for safe, up-to-code electrical connections.
