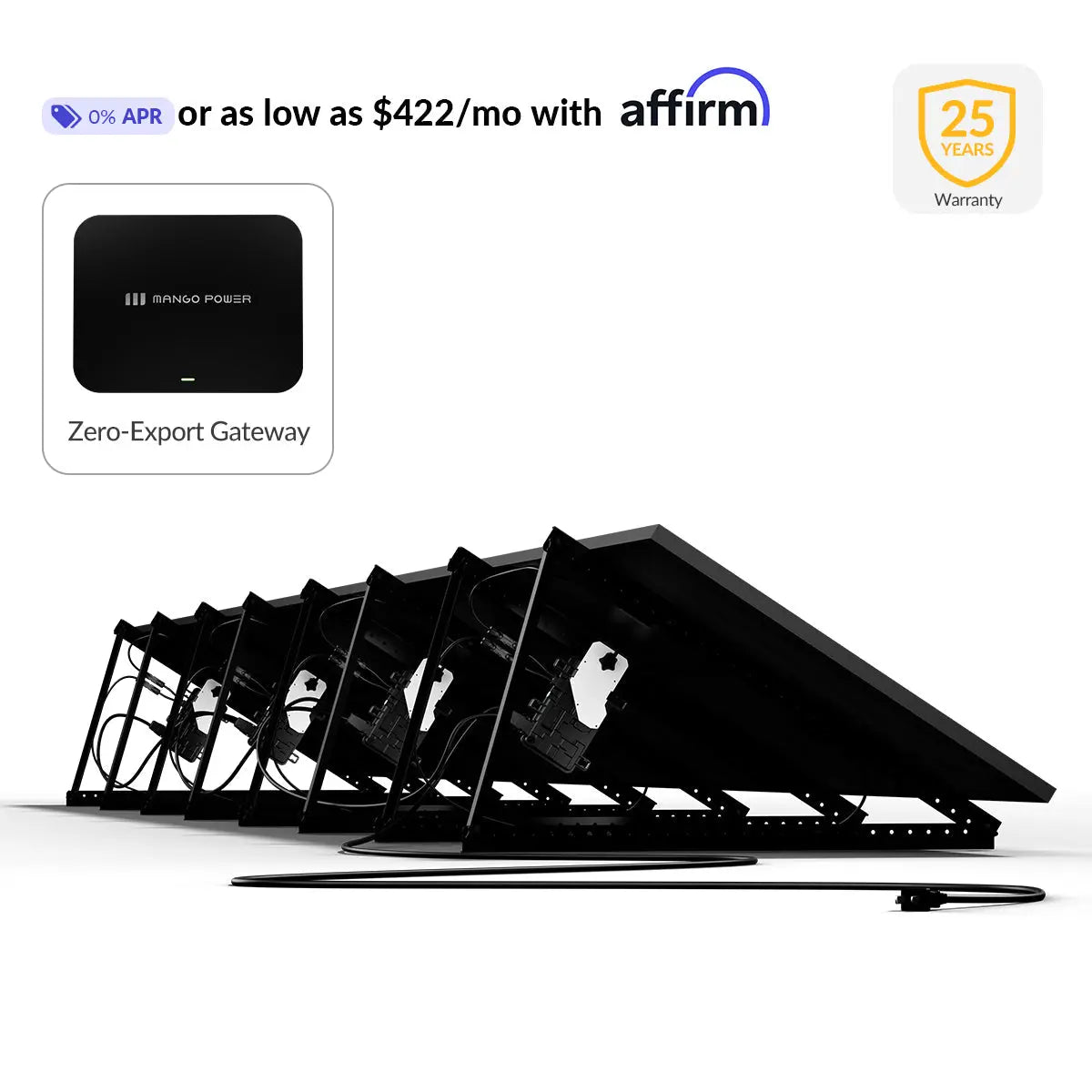

Mango Power S Plug & Play Solar 1200W Kit + Zero-Export Gateway
-
Estimated Delivery:Aug 08 - Aug 12
-
Free Shipping & Returns: On all orders under $50
Mango Power S Plug & Play Solar 1200W Kit + Zero-Export Gateway
Mango Power S Plug & Play Solar 1200W Kit + Zero-Export Gateway
Discover the Mango Power S PIPV, the world's leading single-stage cyclo microinverter. Featuring 97% CEC efficiency and a 25-year lifespan, it offers a no-grounding, hassle-free solution for maximum ROI. Plug into the future of effortless energy today.
Note: The bundle already includes one Smart Gateway Lite.
- 200A Zero-Export Gateway Included: No separate Gateway Smart Meter needed.
- 200ms Anti-Backflow Protection: Automatically limits export to the grid for smarter plug-in solar use.
- Plug & Play Setup: Includes 1200W solar panels, microinverter, stand, cables, Gateway, and App.
- Certified Performance: 97% CEC efficiency, 99.9% MPPT, CEC Listed, CA Rule 21, UL 1741-SA/SB, IEEE 1547:2018, and CSA C22.2.
- Outdoor-Ready Design: IP68-rated microinverter with 25-year warranty.
Key Features
- High-Yield Economic Engine: Save $420 annually, $10,000+ lifetime.
- Full-Spectrum 97% CEC Efficiency: Single-Stage cyclo topology starts earlier and runs later.
- Single-Stage Cyclo Topology: 30% component reduction for 2.5x reliability.
- Smart Gateway Lite: 200A precision whole-home metering with ±0.5% accuracy. Prevent energy backflow.
- 25-Year Operational Integrity: 219,000-hour design life guarantee.
- 99.9% High MPPT in Partial Shade: Independent tracking per panel.
- NEMA Type 6P / IP68 Rating: Operates from -40°F to 149°F, dustproof, waterproof, fanless.
- One-Click Wi-Fi MESH: Self-healing 2.4GHz smart network with 99.9% uptime.
- 100μs Rapid Shutdown (RSD): 300,000x faster than strictest safety codes.
- Net-Zero Contribution: 15-ton CO2 offset over product lifecycle.
Technical Specifications
| Rated Output Power | 1200W |
| PV Operating Voltage | 36V |
| MPPT Voltage Range | 16–60V |
| Peak Power MPPT Voltage Range | 36–55V |
| Number of MPPTs | 1 |
| Nominal Output Power | 280 VA |
| CEC Efficiency | 97% |
| Operating Temperature Range | -40 to +65°C |
| Storage Temperature Range | -40 to +85°C |
| Dimensions | 1675 × 880 × 30 mm |
| Weight | 19.15 kg (42.2 lbs) |
| Enclosure Rating | NEMA Type 6P / IP68 |
| Cooling | Natural convection (fanless) |
| Enclosure Protection Class | Class II double-insulated |
| Altitude | <4000m (<13,123 ft) |
| Warranty | 25 years |
Certifications
CEC Listed | CA Rule 21 (UL 1741-SA) | UL 1741-SB | IEEE 1547:2018 | CSA C22.2
What's Included (4 Boxes)
- 4 × 300W Solar Panels
- 4 × 280W Microinverters (Mango Power S Pro)
- Mounting Stand
- Cables & Connectors
- Smart Gateway Lite (Anti-Backflow, 200A)
- App Access
Warranty
25-Year Warranty on the microinverter. 30-Day Money Back Guarantee. Fast & Free Shipping.
Documentation & Datasheets
- MANGO POWER S PIPV System Datasheet For US (PDF)
- Mango Power S Pro Specsheet - US (PDF)
- PIPV Easy Installation Guide V14 (PDF)
- MANGO POWER Smart Gateway Lite Datasheet (PDF)
- MANGO POWER S-series User Manual - US (PDF)
- Microinverter Quick Installation Guide - US (PDF)
- MANGO POWER Smart Gateway Lite User Manual (PDF)
