Magnum Energy MS4448PAE 4400 Watt 48V Parallel Inverter/Charger 120V/240V
-
Estimated Delivery:Jul 04 - Jul 08
-
Free Shipping & Returns: On all orders under $50

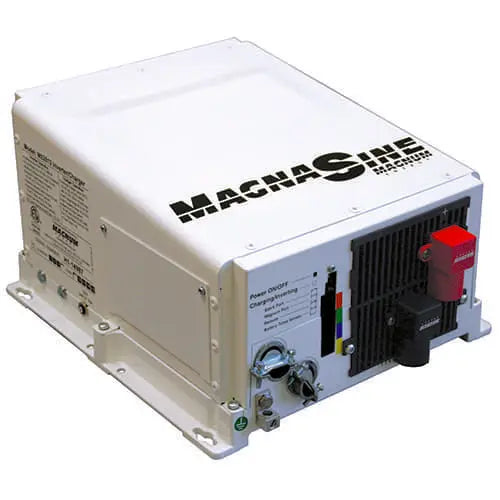

Magnum Energy MS4448PAE 4400 Watt 48V Parallel Inverter/Charger 120V/240V
Magnum Energy MS4448PAE 4400 Watt 48V Parallel Inverter/Charger Overview
The MS-PAE 120/240V Series Inverter/Charger from Magnum Energy is a pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PAE Series is powerful, easy-to-use, and cost effective.
Key Features
- No series stacking required: The unique design of the MS-PAE Series provides 120 and 240 volts output in one unit, eliminating the need to stack two units together to get 240 volts.
- Parallel stacking: Parallel up to four inverter/chargers for up to 17.6kW of power at 120/240V. MP panels and router are required for parallel stacking.
- Power Factor Corrected (PFC) Charger: Built-in PFC charger uses 25-30% less AC current than standard chargers.
- Safe and reliable: ETL Listed to UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations.
- Pure sine wave output
- 24 and 48 volt configurations
- Versatile mounting options
- Lightweight design
- Multiple ports
- Accessible design with convenient switches
Applications
- Renewable Energy Systems
- Off-Grid Power
- Back-Up Power
Technical Specifications
| Specification | Value |
|---|---|
| Output Power | 4,400W |
| Peak Watts | 8,500W |
| Output Voltage | 120 / 240 VAC |
| Output Peak | 70 Amps |
| Output Current | 35 Amps |
| Output Waveform | Pure Sine Wave |
| Output Frequency | 60 Hz |
| Input Voltage | 48V DC |
| Input Voltage Range | 36.0 – 64.0 VDC |
| Continuous Output Amps | 35 Amps |
| Charger Output | 60 Amp PFC Charger |
| Efficiency | 94% |
| Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
| Weight | 55 lb (24.9 kg) |
| Dimensions | 13.75" x 12.65" x 8.0" (34.9 cm x 32.1 cm x 20.3 cm) |
| UL Certified | Yes (ETL Listed) |
| Phase | Single |
| Topology | Low Frequency |
| GTIN/UPC | 00892608001394 |
Warranty
Backed by a 3-year (36-month) limited warranty, and a 5-year limited warranty when installed on an MMP or MP system.
Documentation
High-Power Performance for Demanding Systems
The Magnum Energy MS4448PAE is designed for users who need dependable power in off-grid, backup, or hybrid energy setups. With 4400 watts of output and a 48V design, it delivers strong performance for homes, cabins, workshops, and critical equipment. This inverter/charger supports both 120V and 240V applications, giving you more flexibility when powering a wide range of loads. Built for parallel operation, it also allows system expansion when more power is required. The Magnum Energy MS4448PAE combines efficient energy conversion with practical reliability, making it a trusted choice for serious power needs.
Flexible 120V/240V Support and Parallel Capability
One of the standout advantages of the Magnum Energy MS4448PAE is its ability to work with both 120V and 240V systems, which helps it fit many residential and commercial applications. This flexibility makes it easier to match your electrical setup without needing a separate unit for different voltage requirements. The parallel-ready design adds even more value by allowing multiple inverter units to work together for increased capacity. Whether you are building a new off-grid system or upgrading an existing one, this model offers the kind of scalability and voltage support that makes long-term planning easier and more efficient.
Efficient Charging and Reliable Backup Power
As an inverter/charger, the Magnum Energy MS4448PAE does more than convert DC power to AC power. It also charges batteries efficiently, helping maintain a stable energy reserve for continuous operation. This is especially important in backup power systems where battery health and uptime matter. The unit is built to deliver consistent charging performance while supporting smooth power transitions during outages or generator use. Its dependable operation helps reduce interruptions and supports a more stable energy environment. For users who want a practical solution for both inverter and charging needs, this model provides a balanced mix of performance and convenience.
Built for Practical Installation and System Integration
The Magnum Energy MS4448PAE is engineered with real-world installation in mind. Its design supports integration into a variety of power systems, making it a useful option for installers and experienced system owners alike. Because it is part of a parallel-capable setup, it can grow with your energy needs instead of forcing a full system replacement later. That makes it a smart investment for users who want flexibility and long service value. From dependable daily use to emergency backup, this inverter/charger is a strong solution for managing power with confidence, efficiency, and room to expand as demands change.
