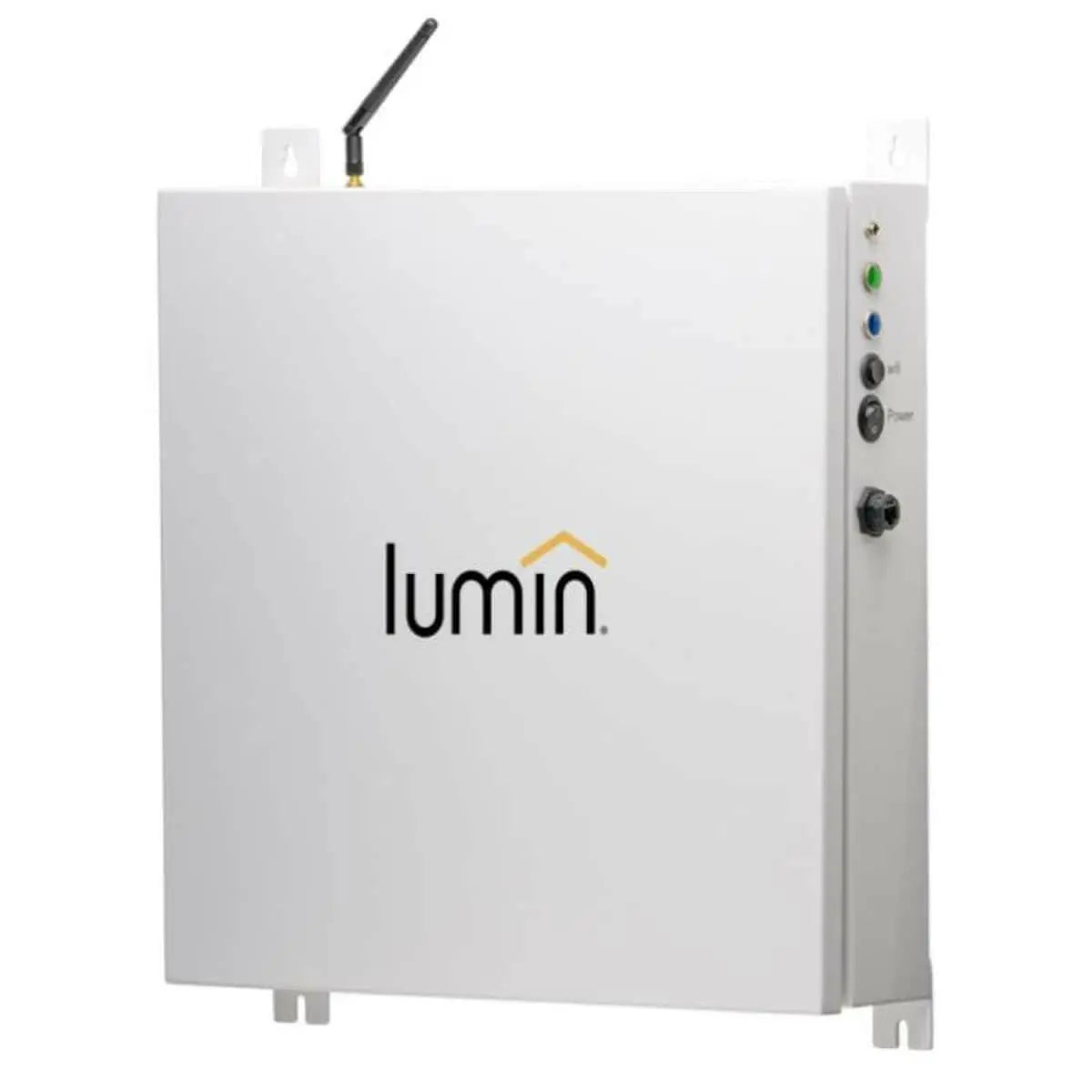

Lumin Smart Indoor Electrical Panel

Lumin® is the pioneer and market leader for responsive load control and smart circuit technology. The Lumin platform is an addition to an ordinary electrical panel and makes regular circuits smart and responsive. Lumin empowers homeowners to manage their energy consumption based on numerous factors such as grid outages, electricity pricing, maximum battery output, battery state of charge and solar production. Lumin is valued by homeowners, solar+storage installers, utilities, and home builders.

Features

• Battery backup extension
• Time-of-use & demand charge mitigation
• NEM 3.0 credit optimization
• Customizable circuit scheduling
• Real-time energy production and consumption data
• Identify and optimize energy usage patterns


Specifications

• Mounting Type: Indoor
• Installation Time: 1.5-4 hr
• Operating Temperature: 0-60 deg C
• Humidity: <80% RH (Non-Condensing)
• Altitude: <3000 m
• Dimensions: 17.5 in Length x 17.5 in Width x 4 in Height
• Conductor Length: All Extend 76 cm (30 in) Beyond Conduit End
• AC Voltage: 120/240 VAC Split-Phase, 50 - 60 Hz
• Supply Breaker Rating: 15-20 A
• Connectivity: Wi-Fi or Ethernet
• Internet Bandwidth: Approx. 0.02 Mbps
• Wi-Fi Protocols: 802.11 b/g/n, 2.4 GHz
• Wi-Fi Encryption: Wi-Fi Encryption
• Ethernet Port: 1 x RJ-45 (10/100/1000 Mbps)
• IP Addressing: Dynamic (DHCP)
• Cryptographic System: TLS 1.2 (Minimum)
• Firewall Outbound Access: Ports 53, 123, 443-444, & 50050-50059
• Maximum Load Breaker Ratings:
  • 60 A per Line x 6 Lines
  • 30 A per Line x 6 Lines
• Load Breaker Rating:
  • 50 A per Line x 6 Lines
  • 20 A per Line x 6 Lines at 50-60 deg C
• Breaker Types: Single Pole (1 Line) & Dual Pole (2 Lines)
• Accuracy: +/-0.5% of Load
• Monitoring Type: Separate Measurement of Lines (Including Dual-Pole)
• Split-Phase Voltage: Separate Line-to-Neutral Potential Measurement
• Current Transformers (CTs): 2 Split-Core 200 A Included, Up to 2 Additional Available
• Local Network: Live Data & Controls
• Data: 1-Sec Granularity
• Load Controls: Manually/Directly, Automated Schedules, & Automated Modes
• Standards:
  • UL & CSA C22.2
  • 61010-1 & 61010-2-030
  • 47 CFR 15 (FCC) RSS-Gen & RSP-100 (ISED)
• Warranty: 10 Years Limited
• Weight: 27 lb


Documents

• Specification Sheet
• Instruction/Installation Manual
