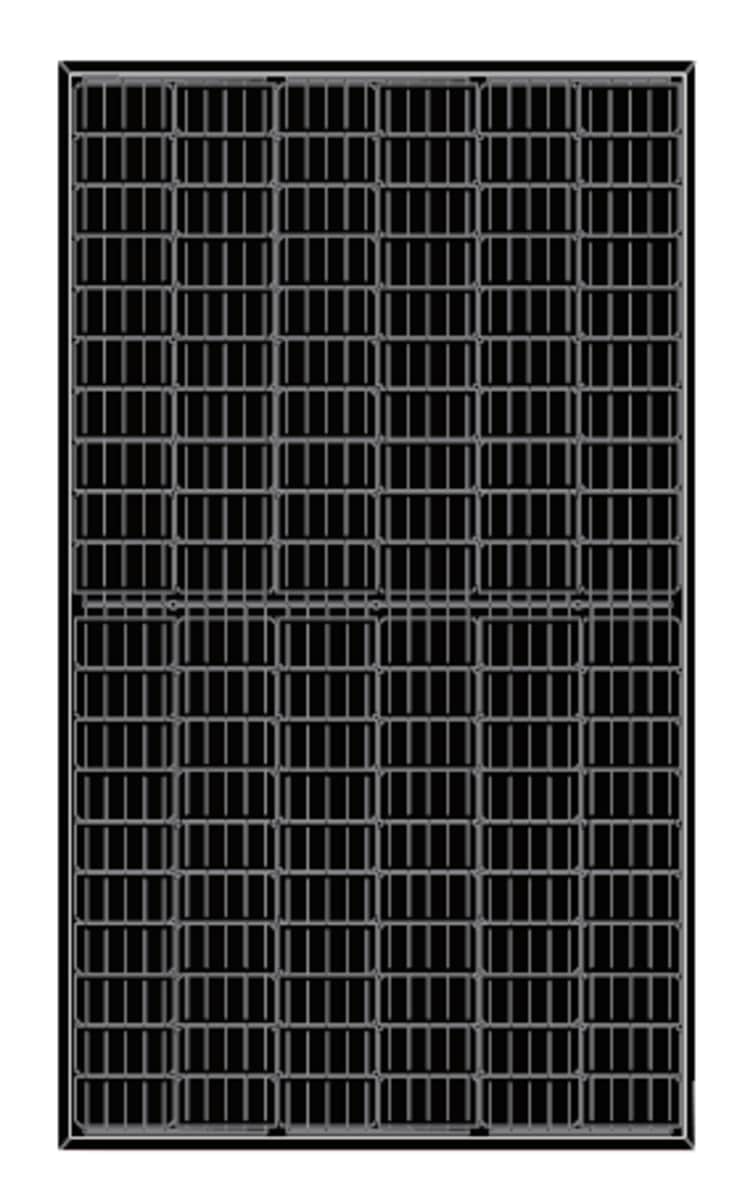

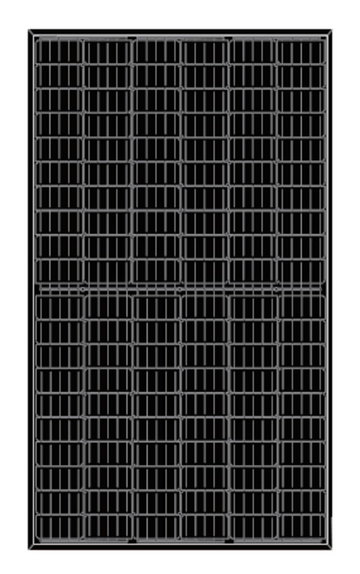

Longi Solar LR6-60HPB-310M 310w Mono Solar Panel

Discover the Advantages of the 310w Mono Solar Panel by Longi Solar

The LR6 lineup is a low LID monocrystalline PERC 60-cell with Half-cut technology module, with excellent electrical and solid structural performance (5400 Pa snow load and 2400 Pa wind load). These modules feature black 35mm frames with white back sheets and industry-standard -0/+5W sorting. LONGi backs these modules with a 10-year product warranty and 25-year linear warranty. They are certified to UL 1703, IEC 61215, IEC 61730 and are manufactured in an ISO 9001/14001 certified facility. The LR6-60HPB series has an aesthetic appearance with black frame and backsheet, best suited for rooftop installations.

Features

• Performance - Positive power tolerance (0~ +5W) guaranteed
• High module conversion efficiency (up to 19.1%)
• Slower power degradation enable by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
• Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
• Reduced resistive loss with lower operating current. Higher energy yield with lower operating temperature
• Reduced hot spot risk with optimized electrical design and lower operating current
• Reduced resistive loss with lower operating current
• Higher energy yield with lower operating current

Specifications

• Type: High Efficiency Low LID
• Series/Model: Hi-Mo 3m (Black)
• Length: 1683 mm
• Width: 996 mm
• Height: 35 mm
• Cells Technology: Monocrystalline (Mono) PERC with Half-Cut
• Number of Half Cells: 120 (6 x 20)
• Maximum Power (Pmax):
  • STC: 310 W
  • NOCT: 229.6 W
• Maximum Power Voltage (Vmp):
  • STC: 33.3 V
  • NOCT: 30.8 V
• Maximum Power Current (Imp):
  • STC: 9.3 A
  • NOCT: 7.46 A
• Open-Circuit Voltage (VOC):
  • STC: 40.3 V
  • NOCT: 37.7 V
• Short-Circuit Current (Isc):
  • STC: 9.86 A
  • NOCT: 7.94 A
• Maximum System Voltage: 1000 VDC (IEC/UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 18.5%
• Frame Material: Anodized Aluminum Alloy
• Front Glass: Single Glass, 3.2 mm Coated Tempered Glass
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: 4 mm², 300 mm in Length
• Connector Type: MC4
• Fire Type: UL Type 1/Type 2
• Maximum Static Loading:
  • Front Side: 5400 Pa
  • Rear Side: 2400 Pa
• Hailstone Test: 25 mm Hailstone at 23 m/s
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients:
  • Pmax: -0.37%/°C
  • VOC: -0.286%/°C
  • Isc: 0.057%/°C
• Nominal Operating Cell Temperature (NOCT): 45°C ±2°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: IP67 Rated, 3 Diodes
• Power Output Tolerance: 0-5 W
• Standards:
  • TUV, CSA, cUS, CE
  • IEC 61215, IEC 61730
  • ISO 9001:2008, ISO 14001:2004
  • TS62941, OHSAS 18001:2007
  • Class II
• Warranty:
  • 10 Years Materials & Processing
  • 25 Years Extra Linear Power Output
• Weight: 18.9 kg

Documents

• Specification Sheet
• Instruction/Installation Manual


High Efficiency and Performance

The Longi Solar LR6-60HPB-310M 310w mono solar panel is designed to deliver superior efficiency, making it an ideal choice for residential and commercial solar installations. Thanks to its monocrystalline silicon cells, this 310w mono solar panel ensures optimal sunlight absorption and energy conversion. Users benefit from increased power output and better performance under low-light conditions, ensuring consistent energy production throughout the day.

Durability and Quality Construction

Built to withstand harsh environmental conditions, the Longi Solar 310w mono solar panel features robust materials including tempered glass and a durable aluminum frame. This design allows the panel to resist impacts, extreme weather, and corrosion over an extended period. Such quality construction guarantees long-term reliability and a solid return on investment for users looking to maximize their solar power system's lifespan.

Easy Installation and Versatile Applications

With a standard 60-cell configuration, the LR6-60HPB-310M panel offers ease of installation and compatibility with most mounting systems. Whether for rooftop arrays or ground-mounted solar setups, this 310w mono solar panel adapts comfortably to various configurations. Its moderate size and weight facilitate handling and reduce installation time, making it a practical choice for both small and large-scale solar projects.
