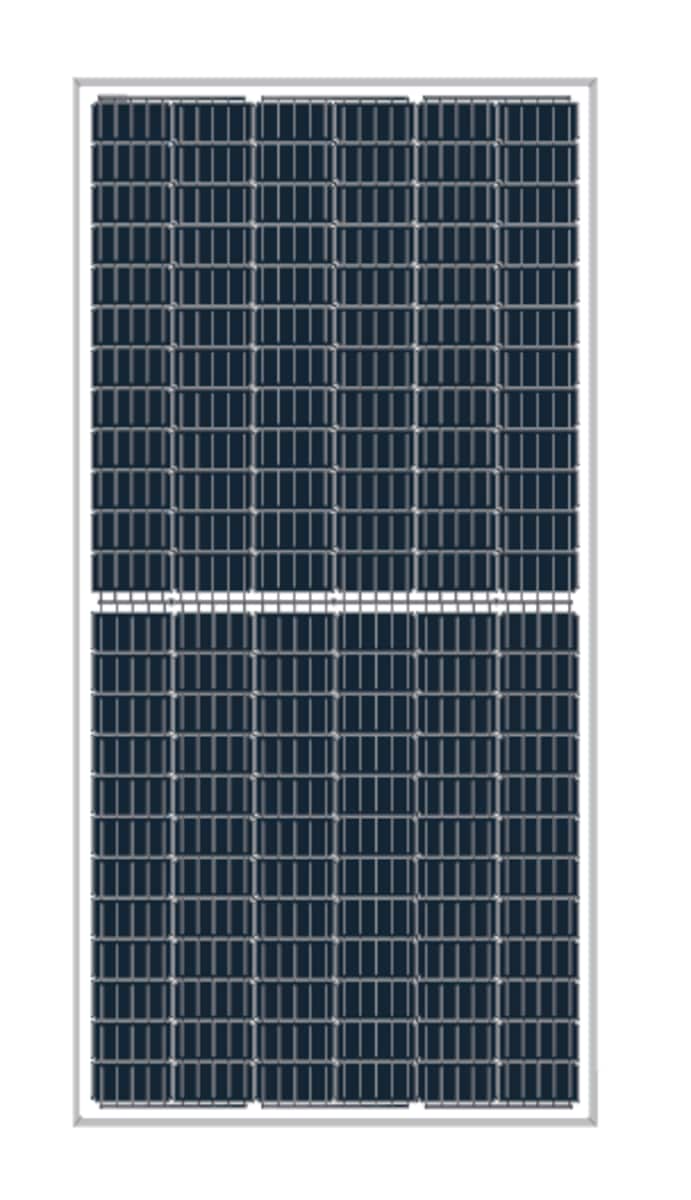

Longi Solar LR6-72HPH-385M 385w Mono Solar Panel

Why Choose the Longi 385w Mono Solar Panel for Your Solar Energy Needs

The LONGi HPH Series combines High Efficiency, Low LID Mono PERC cells with Half-cut Technology to improve performance and boost production. This module series has a max system voltage of 1500V and a UL Type 4 Fire Rating. 35mm frames reduce weight while still providing the strength and resilience needed to rate 5400Pa for front side static loading and 2400Pa for rear side static loading.

Features

• Positive power tolerance (0~+5W) guaranteed
• High module conversion efficiency (up to 19.3%)
• Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
• Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
• Reduced sensitive loss with lower operating current. Higher energy yield with lower operating temperature
• Reduced hot spot risk with optimized electrical design and lower operating current

Specifications

• Type: High Efficiency Low LID
• Length: 2004 mm
• Width: 996 mm
• Height: 35 mm
• Frame Depth: 35 mm
• Cells Technology: Monocrystalline (Mono)
• Cell Dimensions: 78.9 in x 39.21 in x 1.38 in
• Number of Half Cells: 144 (6 x 24)
• Maximum Power (Pmax): 385 W STC / 285.2 W NOCT
• Maximum Power Voltage (Vmp): 40.8 V STC / 37.7 V NOCT
• Maximum Power Current (Imp): 9.43 A STC / 7.57 A NOCT
• Open-Circuit Voltage (VOC): 49.2 V STC / 46 V NOCT
• Short-Circuit Current (Isc): 10.03 A STC / 8.09 A NOCT
• Maximum System Voltage: 1500 VDC (UL & IEC)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 19.3%
• Frame Material: Anodized Aluminum Alloy
• Front Glass: Single Glass, 3.2 mm Coated Tempered Glass
• Frame Color: Silver
• Backsheet Color: White
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: 4 mm², 300 mm Length (Customizable Length)
• Connector Type: MC4
• Fire Type: UL Type 1/Type 2
• Maximum Static Loading:
  • Front Side: 5400 Pa
  • Rear Side: 2400 Pa
• Hailstone Test: 25 mm Hailstone at 23 m/s
• Operating Temperature: -40 to 85°C
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients:
  • Pmax: -0.37%/°C STC
  • VOC: -0.286%/°C STC
  • Isc: 0.057%/°C STC
• Nominal Operating Cell Temperature (NOCT): 45 ±2°C
• Air Mass (AM): 1.5 STC
• Junction Box: IP67 Rated, 3 Diodes
• Power Output Tolerance: 0-5 W
• Standards:
  • IEC 61215, IEC 61730, UL1703
  • ISO 9001:2008, ISO 14001:2004, TS62941
  • OHSAS 18001:2007
  • TUV, CSA, CE
• Warranty:
  • 10 Years Materials & Processing
  • 25 Years Extra Linear Power Output
• Documents;
• Data Sheet

High Efficiency and Power Output

The Longi 385w mono solar panel is designed to deliver exceptional energy performance with its 385-watt power output. Its monocrystalline technology ensures maximum efficiency by effectively converting sunlight into electricity even under low-light conditions. This panel is ideal for residential and commercial installations, providing reliable power generation while minimizing space requirements. The advanced cell structure of the Longi 385w mono solar panel enhances energy yield, making it a smart choice for users seeking long-term savings and sustainability in solar energy systems.

Durability and Weather Resistance

Durability is a key feature of the Longi 385w mono solar panel. Engineered with high-quality materials, it resists harsh weather conditions such as heavy rain, strong winds, and extreme temperatures. Certified for rigorous testing against snow loads and wind pressures, this panel guarantees stable performance year-round. The anti-reflective coating and tempered glass protect the solar cells from damage and degradation, ensuring a longer lifespan and consistent energy output. This resilience reduces maintenance costs and enhances the overall value of your solar investment.

Easy Installation and Versatile Applications

The Longi 385w mono solar panel offers a user-friendly design for quick and straightforward installation. Compatible with most mounting systems, it suits rooftops, solar farms, and off-grid setups alike. Its moderate size and lightweight nature allow for flexible configurations to maximize space efficiency. Whether upgrading an existing system or building a new one, the Longi 385w mono solar panel supports diverse solar projects. This adaptability, combined with its high performance, makes it an excellent option for both homeowners and professionals aiming for efficient, scalable solar solutions.
