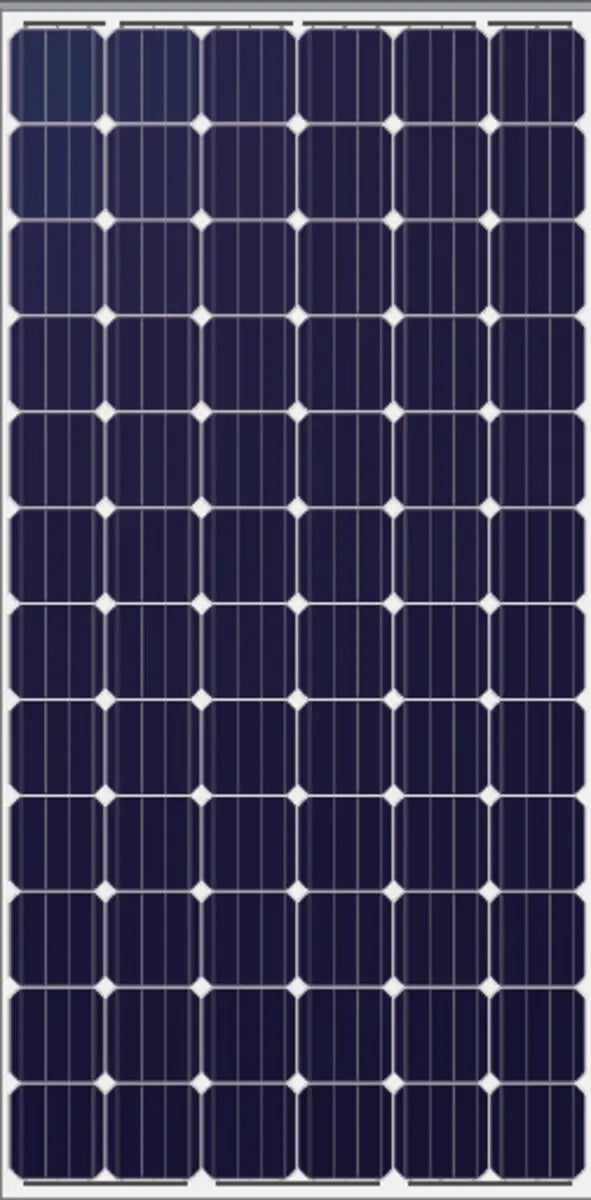

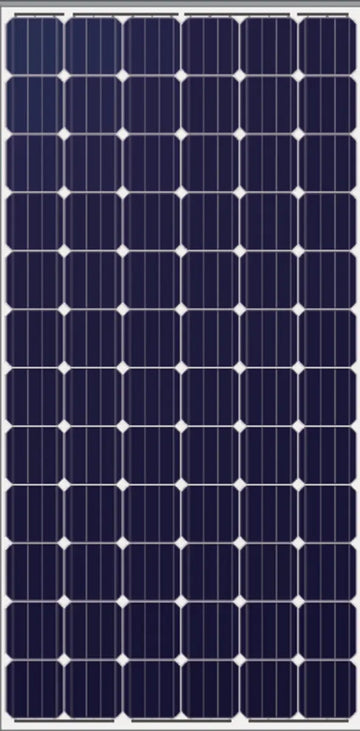

Longi Solar HiMO1 LR6-72PH-370M 370w Mono Solar Panel

Less components and lower cost. Excellent performance under the IEC and UL Standard for 1500V system voltage brings lower system side cost. Excellent PID-resistant performance. Passed more strict PID test with 85% RH, 85°C temperature.

Features

• Performance - Positive power tolerance 0~+5W positive tolerance of maximal power guaranteed. High conversion efficiency, highest up to 19.1%. Excellent performance in low irradiance. Outstanding power output in low irradiance conditions, such as dawn, dusk and cloudy days
• Anti-PID - Anti-PID techniques of processing solar cells and encapsulating modules applied; adaptable for the installation in hot and highly humid areas
• Adaptable - Excellent anti salt mist and anti-ammonia capability and is adaptable to the harsh environments, such as seaside farms. Super robust resistance and able to bear 2400 Pa wind load and 5400 Pa snow load
• Better energy yield with excellent low irradiance performance and temperature coefficient
• Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
• Adaptable to harsh environment: passed rigorous salt mist and ammonia test

Specifications

• Type: High Efficiency Low LID
• Series/Model: Hi-M01
• Length: 1956 mm
• Width: 991 mm
• Height: 45 mm
• Frame Depth: 40 mm
• Cells Technology: Monocrystalline (Mono) PERC with Half-Cut
• Number of Half Cells: 72 (6 x 12)
• Maximum Power (Pmax): 370 W STC / 272 W NOCT / 345.6 W PTC
• Maximum Power Voltage (Vmp): 48.3 V STC / 44.7 V NOCT
• Maximum Power Current (Imp): 9.39 A STC / 7.51 A NOCT
• Open-Circuit Voltage (VOC): 48.3 V STC / 44.7 V NOCT
• Short-Circuit Current (Isc): 9.84 A STC / 7.93 A NOCT
• Maximum System Voltage: 1500 VDC (IEC)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 19.1%
• Frame Color: Clear
• Backsheet Color: White
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: 4 mm², 1200 mm in length
• Connector Type: MC4 or MC4 Compatible
• Front Side Maximum Static Loading: 5400 Pa
• Rear Side Maximum Static Loading: 2400 Pa
• Hailstone Test: 25 mm hailstone at 23 m/s
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients of Pmax: -0.38%/°C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.286%/°C
• Temperature Coefficients of Isc: 0.057%/°C
• Nominal Operating Cell Temperature: 45 ± 2°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: IP67 Rated, Three Diodes
• Power Output Tolerance: 0-5 W
• Standards:
  • TUV, CSA, cUS, CE
  • IEC 61215, IEC 61730, UL 1703
  • ISO 9001:2008 (Quality Management System)
  • ISO 14001:2004 (Environmental Management System)
  • TS62941 (Guideline for Module Design Qualification and Type Approval)
  • OHSAS 18001:2007 (Occupational Health and Safety)
  • Class II
• Warranty: 10 Years Materials and Processing, 25 Years Extra Linear Power Output
• Weight: 26.5 kg

Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information
