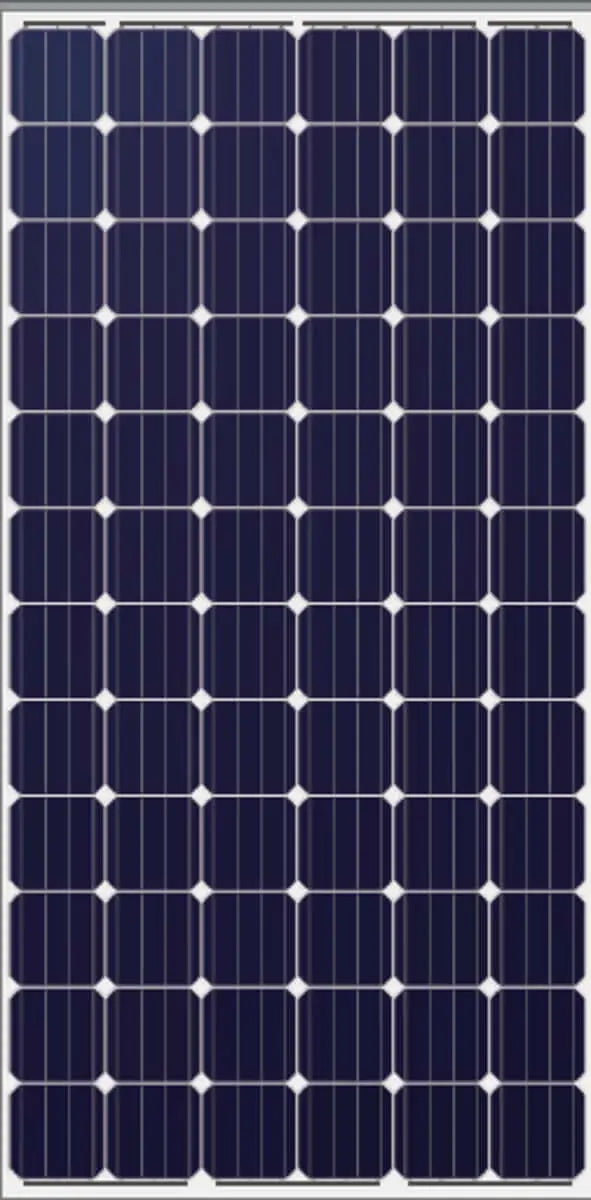

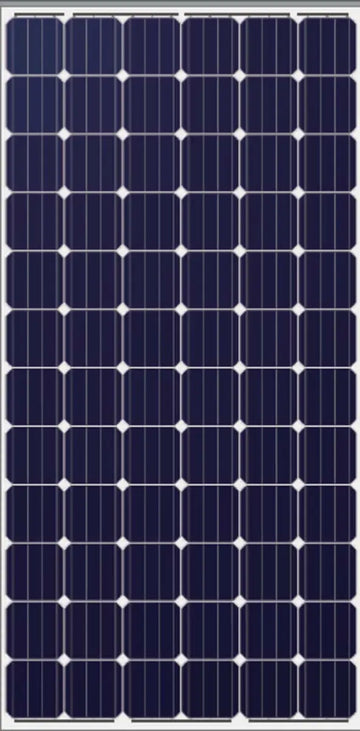

Longi Solar HiMO1 375 W STC/277.8 W NOCT/345.6 W PTC Mono Solar Panel

Less components and lower cost. Excellent performance under the IEC and UL Standard for 1500V system voltage brings lower system side cost. Excellent PID-resistant performance. Passed more strict PID test with 85% RH, 85 deg C temperature, 1500V.

Features

• Performance - Positive power tolerance 0~+5W positive tolerance of maximal power guaranteed. High conversion efficiency, highest up to 18.8%. Excellent performance in low irradiance. Outstanding power output in low irradiance conditions, such as dawn, dusk and cloudy days
• Anti-PID - Anti-PID techniques of processing solar cells and encapsulating modules applied; adaptable for the installation in hot and highly humid areas
• Adaptable - Excellent anti salt mist and anti-ammonia capability and is adaptable to the harsh environments, such as seaside farms. Super robust resistance and able to bear 2400 Pa wind load and 5400 Pa snow load
• High module conversion efficiency (upto 19.1%)
• Slower power degradation enabled by Low LID Mono PERC technology: first year <2%, 0.55% year 2-25
• Better energy yield with excellent low irradiance performance and temperature coefficient
• Solid PID resistance ensured by solar cell process optimization and careful module BOM selection


Specifications

• Frame Depth: 30 mm
• Cells Technology: Monocrystalline (Mono)
• Number of Cells: 132
• Maximum Power (Pmax): 400 W
• Maximum Power Voltage (Vmp): 41.4 V
• Maximum Power Current (Imp): 9.67 A
• Open-Circuit Voltage (VOC): 48.8 V
• Short-Circuit Current (ISC): 10.4 A
• Maximum System Voltage (Vmax): 1000 V
• Maximum Series Fuse Rating: 25 A
• Module Efficiency: 21.6%
• Frame Color: Black
• Backsheet Color: Black
• Irradiance: 1000 W/m²
• Output Cables: 12 AWG (4 mm²) PV Wire, 43 in + 47 in (In Accordance with EN 50618)
• Connector Type: Staubli MC4 PV-KBT4/KST4 (4 mm²) in Accordance with IEC 62852 Only When Connected
• Fire Type: Type 2
• Hailstone Test: 35 mm (IEC61215-2:2016)
• Operating Temperature: -40 to 185°F
• Cell Temperature: 77°F
• Junction Box: Protection Class IP68, 3 Diodes
• Power Density: 20.6 W/ft²
• Standards: RoHS EU 863/2015 [IEC 62321]
• Warranty: 25 Years Product
