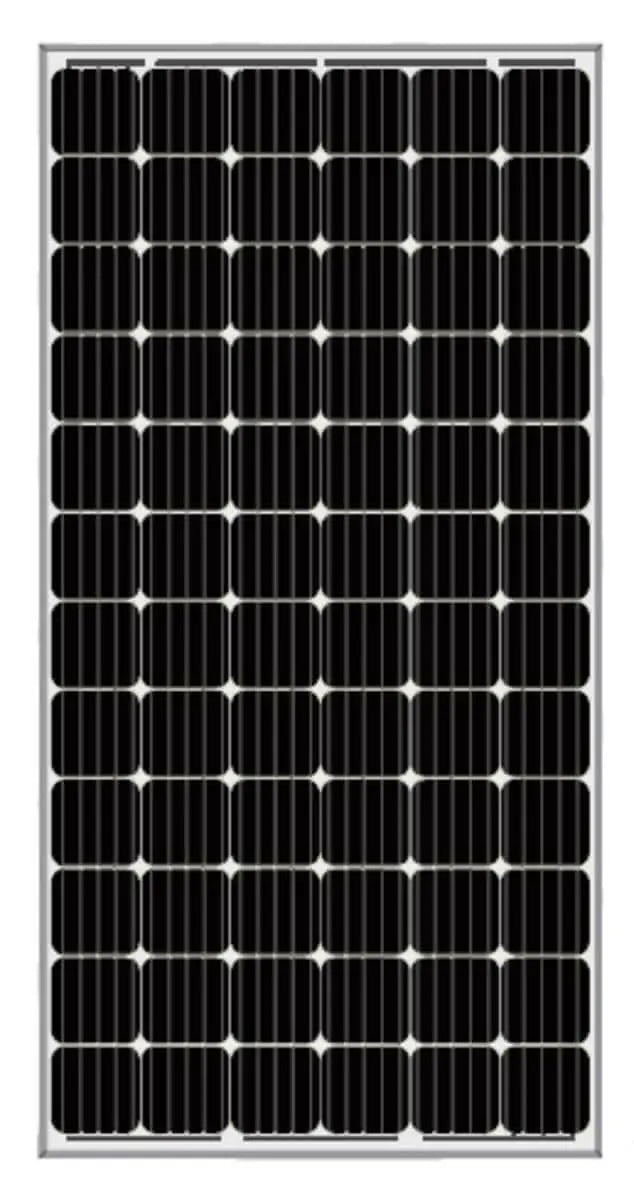

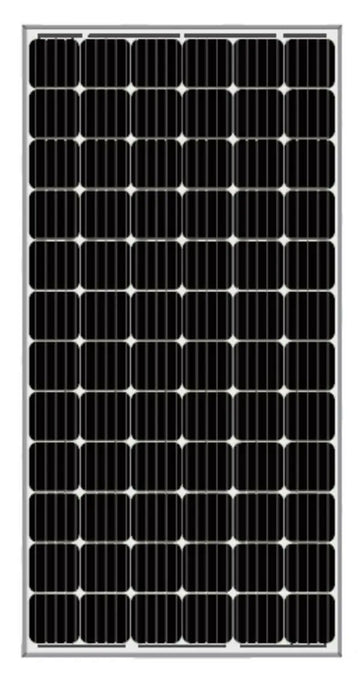

Longi Solar Hi-MO2 Bifacial 360 W Front/270 W Back High Efficiency Low LID Mono Solar Panel

Longi Solar Hi-MO2 Bifacial Solar Panel Features and Benefits

These LONGi BiFacial Modules boast dual glass lamination and a 30 year extended product warranty. Split junction box and 300mm cables are designed to minimize wire management and simplify traditional DC string installations.

Features

• Performance - Front side performance equivalent to conventional low LID mono PERC. High module conversion efficiency (up to 19%). Better energy yield with excellent low irradiance performance and temperature coefficient. First year degradation less than 2%. Bifacial technology enables additional energy harvesting from rear side up to 25%
• Design - Glass/glass lamination ensures 30 year product lifetime, with annual power degradation <0.45%, 1500V compatible to reduce BOS cost. 40mm frame design enables easy installation and robust mechanical strength. Solid PID resistance ensured by solar cell process optimization and careful module BOM selection
• Front side performance equivalent to conventional low LID mono PERC: High module conversion efficiency (upto 19%), better energy yield with excellent low irradiance performance and temperature coefficient, first year power degradation <2%

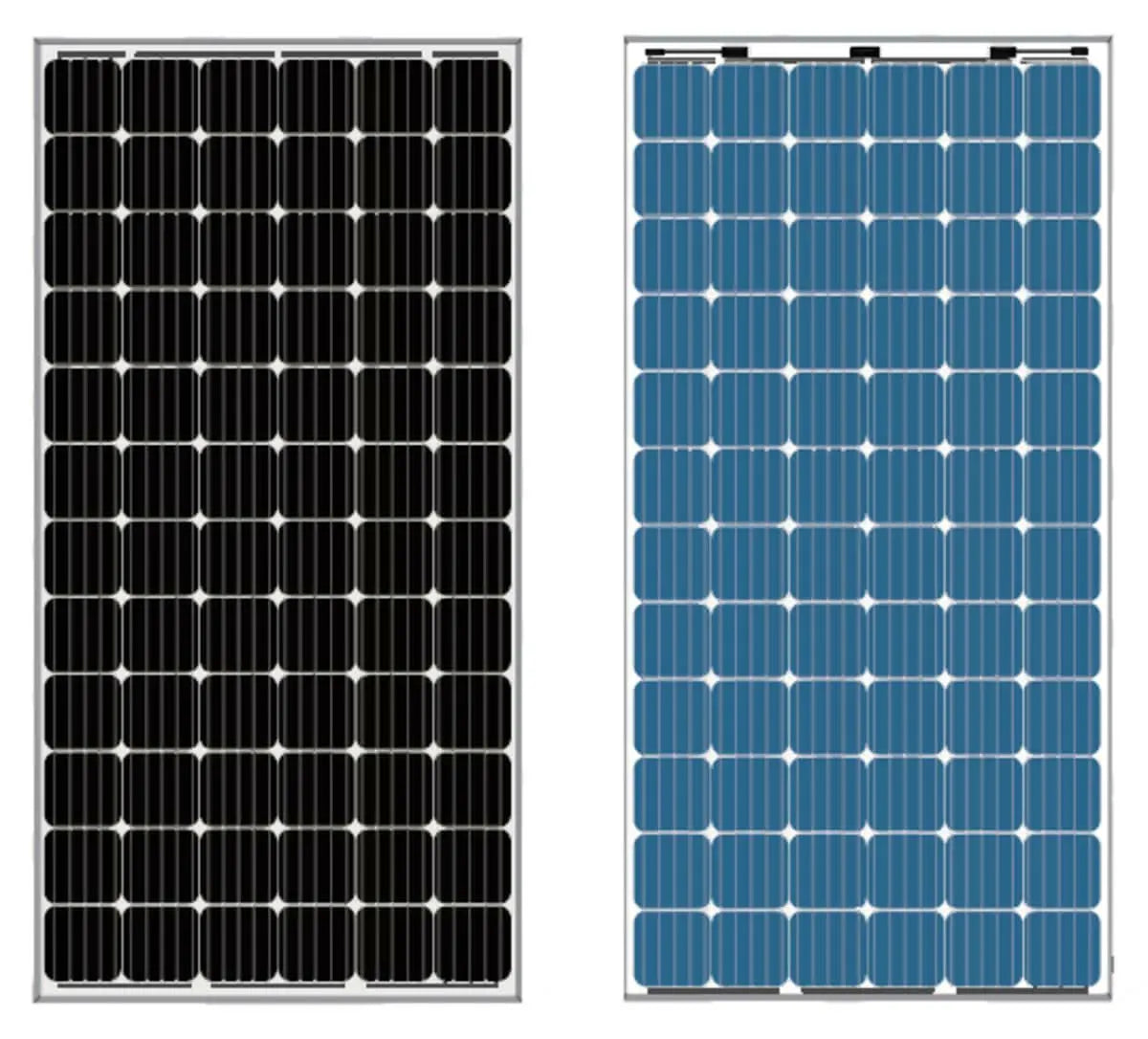

• Bifacial technology enables additional energy harvesting rear side (upto 25%)
• Glass/glass lamination ensures 30 years product lifetime, with annual power degradation <0.45%, 1500V compatible to reduce BOS cost
• 40 mm Frame design enables easy installation and robust mechanical strength
• Solid PID resistance ensured by solar cell process optimization and careful module BOM selection


Specifications

• Type: High Efficiency Low LID
• Series/Model: Hi-MO2 Bifacial
• Length: 1977 mm
• Width: 996 mm
• Height: 40 mm
• Frame Depth: 40 mm
• Cells Technology: Monocrystalline (Mono)
• Cell Dimensions:  in77.84 in x 39.21 in x 1.58
• Number of Half Cells: 72 (6 x 12)
• Maximum Power (Pmax): 360 W Front/270 W Back
• Maximum Power Voltage (Vmp): 39.3 V Front/39.8 V Back
• Maximum Power Current (Imp): 9.16 A Front/6.79 A Back
• Open-Circuit Voltage (VOC): 48.2 V Front/47.9 V Back
• Short-Circuit Current (Isc): 9.72 A Front/7.33 A Back
• Maximum System Voltage: 1500 VDC (UL & IEC)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 18.3% Front/13.7% Back
• Irradiance: 1000 W/m² STC
• Output Cables: 4 mm², 300 mm in Length, Length Can be Customized
• Connector Type: MC4 or MC4 Compatible
• Front Side Maximum Static Loading: 5400 Pa
• Rear Side Maximum Static Loading: 2400 Pa
• Hailstone Test: 25 mm Hailstone at the Speed of 23 m/s
• Operating Temperature: -40 to 85 deg C
• Cell Temperature: 25 deg C STC
• Temperature Coefficients of Pmax: -0.37%/deg C STC
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.3%/deg C STC
• Temperature Coefficients of Isc: 0.06%/deg C STC
• Air Mass (AM): 1.5 STC
• Junction Box: IP67 Rated, 3 Diodes
• Power Output Tolerance: 0-5 W
• Standards: IEC 61215, IEC61730, UL1703, ISO 9001: 2008: ISO Quality Management System, ISO 14001: 2004: ISO Environment Management System, TS62941: Guideline for Module Design Qualification & Type Approval, OHSAS 18001: 2007 Occupational Health & Safety, TUV, CSA, CE, Class II
• Warranty: 10 Years Materials & Processing, 25 Years Extra Linear Power Output


High Efficiency and Bifacial Design

The Longi Solar Hi-MO2 panel combines advanced monocrystalline technology with a bifacial design to deliver outstanding energy production. With a powerful 360 W output on the front and 270 W on the back, this solar panel maximizes sunlight absorption from both sides, boosting overall efficiency. This innovative setup increases energy yield without requiring additional space, making it ideal for residential and commercial solar installations. The panel's design helps capture reflected and diffuse sunlight, enhancing performance even in low-light conditions and ensuring reliable power generation throughout the day.

Low Light-Induced Degradation (LID) Technology

One of the key advantages of the Longi Solar Hi-MO2 panel is its low Light-Induced Degradation (LID) technology, which preserves the panel’s efficiency over time. LID typically reduces solar panel performance during the first few months of exposure to sunlight. However, Longi's superior manufacturing process minimizes this loss, allowing the panel to maintain higher energy output and a longer lifespan. This low LID feature ensures that your investment yields more consistent and reliable energy, improving return on investment and sustainability for long-term solar power applications.

Durable and Reliable Build Quality

Designed to withstand tough environmental conditions, the Longi Solar Hi-MO2 panel boasts a durable build that guarantees reliable performance. The robust frame and tempered glass protect against harsh weather such as heavy rain, snow, and strong winds. Additionally, the panel's quality control meets international standards, offering excellent resistance to PID (Potential Induced Degradation) and improved thermal stability. This rugged construction ensures that the solar system continues to operate efficiently for decades, making it a trusted choice for solar energy projects worldwide.

Documents;

Data Sheet
