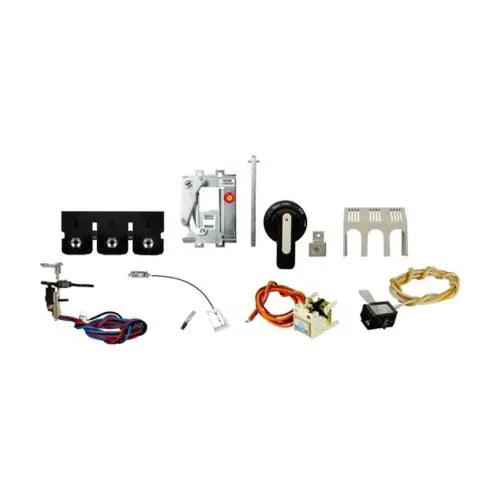

LGHMVD24BX - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism
Eaton Molded Case Circuit Breaker Accessory Handle Mechanism is designed to provide dependable manual control of LG-frame breakers in the Series G family. The S2 handle mechanism features a 24-inch length and black/blue ergonomic design for enhanced usability. Rated for NEMA 4/4X enclosures, it ensures protection against environmental hazards like dust, water, and corrosion, making it suitable for tough industrial and outdoor applications.
Key Features:
- Handle Type: S2 Handle Mechanism
- Frame Compatibility: LG-Frame
- Series: Series G
- Handle Length: 24 inches
- Color: Black/Blue
- Enclosure Rating: NEMA 4/4X
This accessory offers reliable performance and durable design for secure circuit breaker operation.
Documents:
Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Tap Rules to Molded Case Breaker Terminals
Brochures
Molded case circuit breakers providing higher levels of selective coordination product aid
Power metering and monitoring with Modbus RTU product aid
Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Multimedia
Flex shaft handle installation tutorial
Specifications and datasheets
Eaton Specification Sheet - LGHMVD24BX
