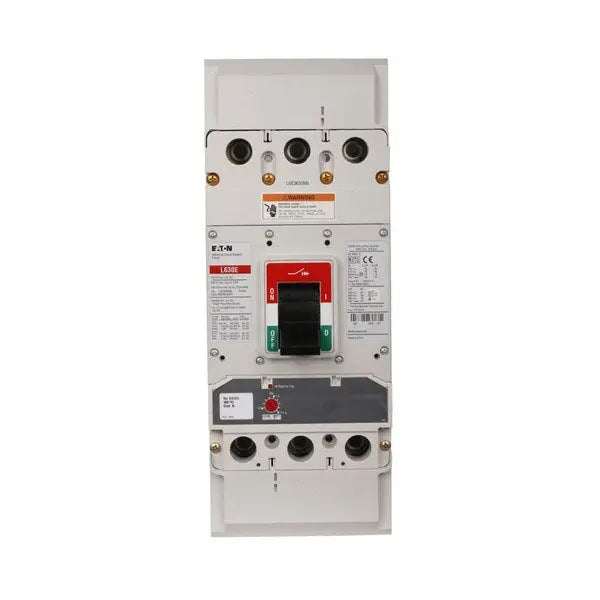

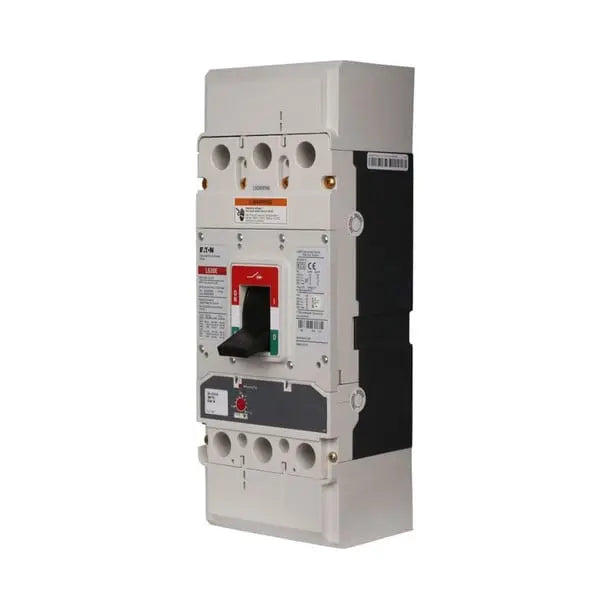

LGE3600FAG - Eaton Series G Molded Case Circuit Breaker

The Eaton Series G Molded Case Circuit Breaker is engineered for reliable protection in demanding electrical systems. This 600A, three-pole unit features fixed thermal and adjustable magnetic trip settings, providing excellent protection against overloads and short circuits. It supports system voltages up to 600 VAC and delivers high short-circuit ratings: 65 kAIC at 240 VAC, 35 kAIC at 415 VAC, 35 kAIC at 480 VAC, and 18 kAIC at 600 VAC. Suitable for both line and load connections, this breaker is built to handle the rigors of industrial environments.

Key Features:

• Rated at 600A with a three-pole configuration
• Fixed thermal and adjustable magnetic trip settings
• Supports up to 600 VAC system voltages
• Short-circuit protection: 65 kAIC at 240 VAC, 35 kAIC at 415 VAC, 35 kAIC at 480 VAC, and 18 kAIC at 600 VAC
• Designed for both line and load connections

This circuit breaker offers robust protection for high-demand electrical systems, ensuring long-term reliability and safety in industrial applications.
