LG NeON 2 Black AC Solar Panel 370W with Integrated Microinverter LM320UE-A2 | LG370M1K-A6
-
Estimated Delivery:Oct 13 - Oct 17
-
Free Shipping & Returns: On all orders under $50
LG NeON 2 Black AC Solar Panel 370W with Integrated Microinverter LM320UE-A2 | LG370M1K-A6

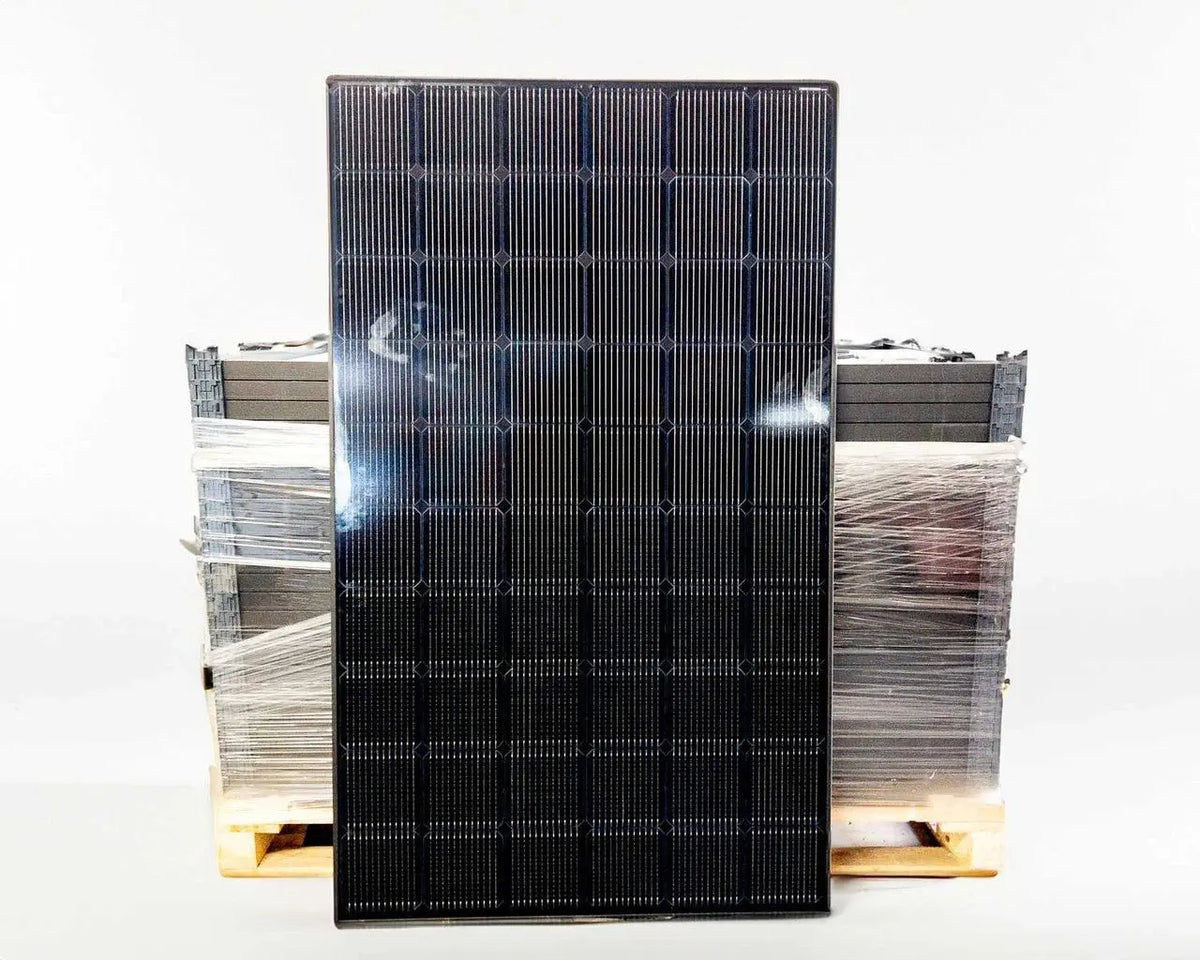

LG NeON® 2 Black AC Solar Panel 370W – LG370M1K-A6
The LG NeON® ACe (LG370M1K-A6) is a high-power AC module based on LG's NeON® 2 series. This smart AC solar panel features an integrated LG LM320UE-A2 microinverter that converts DC power directly to AC output, making it easier to install, monitor, and ideal for residential and light commercial grid-tied solar systems.
Key Features
- 370W High Output & Efficiency: 370W DC / 320W AC continuous output with 20.4% module efficiency

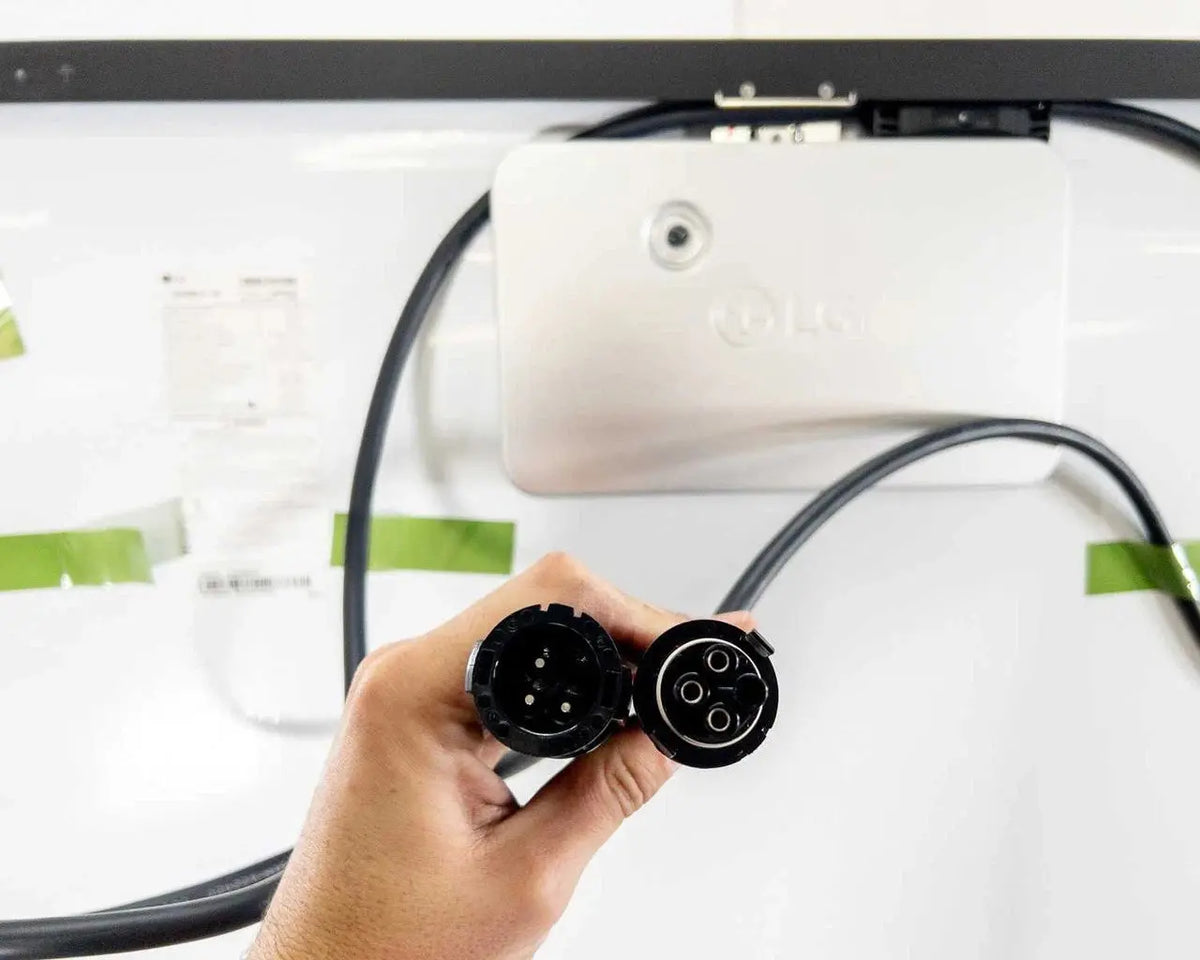

- Built-In Microinverter: Integrated LG LM320UE-A2 microinverter means no separate string inverter is needed
- 25-Year Limited Warranty: 25-year limited warranty for product, performance, and labor. Guaranteed to produce at least 90.6% of labeled power output at year 25 (linear: 98.5% at year 1, then 0.33%/year degradation)
- All-Black Aesthetics: Black backsheet and thinner wires for a sleek, all-black appearance
- Bifacial Cell Technology: NeON Cello technology for better energy production than standard monofacial modules
- Solid Hot-Weather Performance: Low temperature coefficient for reliable output on hot days
- Flexible Array Design: Simple accessories and cable connections for versatile installation
- Easy Monitoring: Connects quickly to the internet via LG EnerVu monitoring portal
- Rapid Shutdown Compliant
DC Electrical Specifications (STC)
| Parameter | Value |
|---|---|
| Maximum Power (Pmax) | 370W |
| MPP Voltage (Vmpp) | 35.5V |
| MPP Current (Impp) | 10.43A |
| Open Circuit Voltage (Voc) | 41.9V |
| Short Circuit Current (Isc) | 10.96A |
| Module Efficiency | 20.4% |
| Bifaciality Coefficient of Power | 6% |
| Power Tolerance | 0 ~ +3% |
STC: Irradiance 1000 W/m², cell temperature 25°C
AC Electrical Specifications
| Parameter | 240V | 208V |
|---|---|---|
| Inverter Rated Continuous Power | 320W AC | — |
| Rated Output Voltage | 240V (211–264V) | 208V (183–229V) |
| Rated Output Current | 1.33A | 1.54A |
| Nominal Frequency | 60 Hz (59.3–60.5 Hz) | — |
| Extended Frequency Range | 57–63 Hz | — |
| Power Factor (adjustable) | 1 / 0.8 leading…0.8 lagging | — |
| Max Units per 20A Branch Circuit | 12 | 10 |
| CEC Weighted Efficiency | 97.0% | 96.5% |
Physical & Mechanical Specifications
| Parameter | Value |
|---|---|
| Cell Type | Monocrystalline N-type |
| Cell Configuration | 60 Cells (6 x 10) |
| Module Dimensions (L x W x H) | 1,740mm x 1,042mm x 40mm (68.5" x 41.0" x 1.6") |
| Weight | 20.2 kg (44.5 lbs) |
| Glass | 2.8mm Tempered Glass with AR Coating |
| Backsheet Color | Black |
| Frame Material | Anodized Aluminum |
| Number of Busbars | 12 |
| Operating Temperature | -40°C to +65°C |
| Storage Temperature | -40°C to +65°C |
| Mechanical Load (Front) | 5,400 Pa / 113 psf |
| Mechanical Load (Rear) | 4,000 Pa / 84 psf |
| Environmental Rating | NEMA 6 (IP67) |
| Fire Performance Rating | Type 2 |
| Country of Manufacture | South Korea |
AC Cable Properties
| Parameter | Value |
|---|---|
| Standard | UL9703 |
| Rated Voltage/Current | 600Vac / 20A |
| Wire Size | 3C 12AWG |
| Cable 1 Length | 1,200mm |
| Cable 2 Length | 1,100mm |
| Protection Degree | IP68 |
| Cable Diameter | 11mm |
Certifications
- ISO 9001, ISO 14001, ISO 50001, OHSAS 18001
- UL1741, IEEE1547, UL1741SA
- FCC Part 15 Class B
- IEC 61701:2011 Salt Mist Corrosion Test – Severity 6
Warranty
25-Year Limited Warranty covering product, performance, and labor.
Linear performance warranty: 98.5% output at year 1, degrading no more than 0.33% per year, with a minimum of 90.6% output guaranteed at year 25.
Datasheet
📄 Download Official LG370M1K-A6 Datasheet (PDF)
