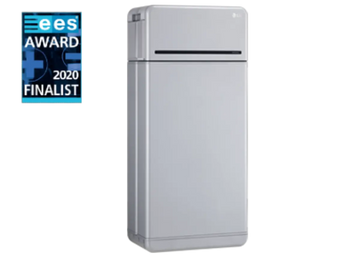

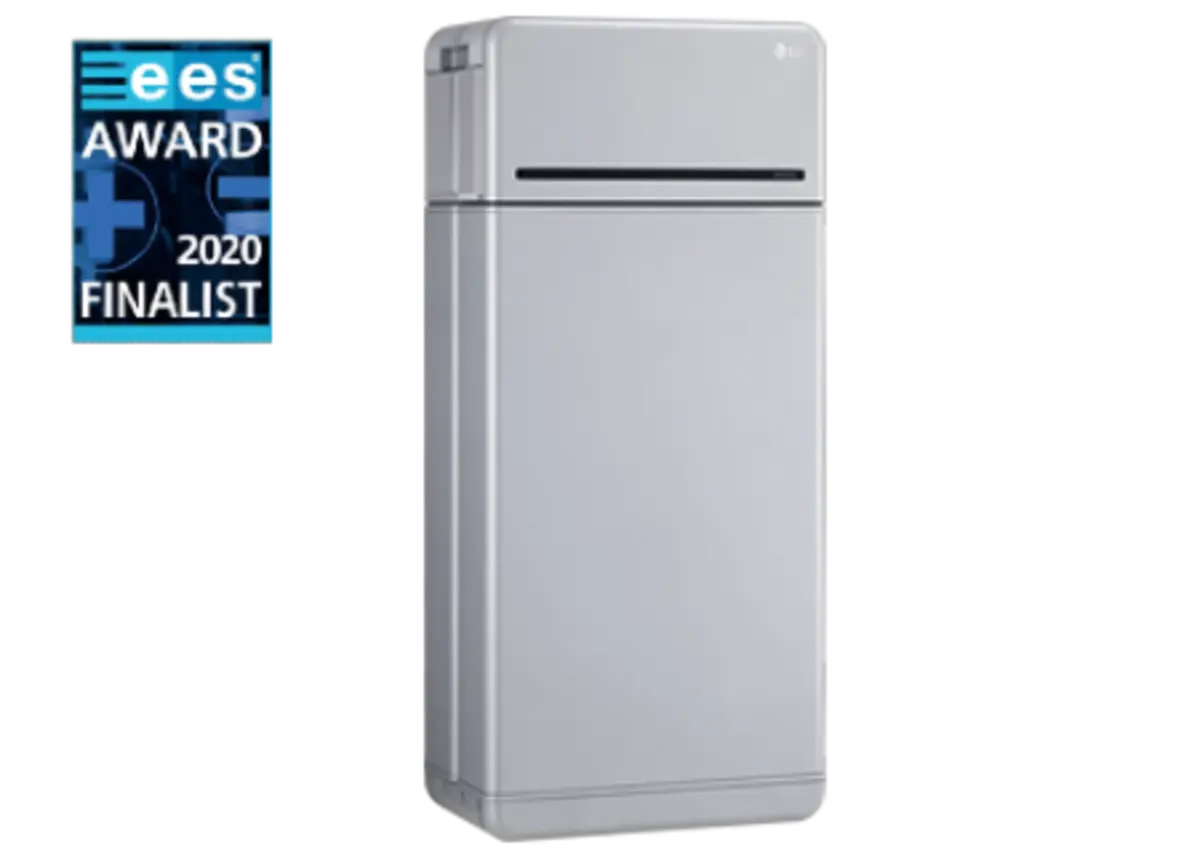

LG Home Battery Prime 16 kWh Home Battery

LG Home Battery: Efficient and Reliable Energy Storage for Your Home

Part of the latest generation 3 series in the LG RESU line-up. The RESU16H Prime is the largest lithium-ion residential battery storage in the world, supplying a total energy capacity of 16 kWh. The latest RESU16H Prime provides an all-new continuous power rating of 7 kW and a peak rating of 11 kW. This increased peak power enables homeowners to backup high-surge power appliance loads like air-conditioning units and pumps.

Features

• The 16 kWh battery features industry-leading continuous power, storage capacity, and DC round-trip efficiency (>90%). Stackable to 32 kWh of energy storage capacity, the RESU16H Prime can fully cover an average daily electricity use of a home


Specifications

• Dimensions: 504 mm Length x 1086 mm Width x 295 mm Depth
• Discharge Current: 20 A at 350 V
• Operating Temperature: 14-122 deg F Charge, -4 to 122 deg F Discharge, 59-86 deg F Recommended
• Enclosure Rating: IP55
• Charge Voltage Rating: 420-450 VDC
• Energy: 16 kWh
• Discharge Cut-off Voltage: 350-410 VDC
• Cell Chemistry: Lithium Ion
• Connection: Spring Type
• Altitude: Maximum 6562 ft
• Protection Type: Circuit Breaker, Fuse, DCDC Converter (Short Circuit Current: 1.616 kA)
• Communication: RS485/CAN, LEDs for Normal and Fault Operation Interface
• Scalability: Maximum 2 in Parallel (32 kWh at 77 deg F (25 deg C), 14 kW)
• Maximum Power (Pmax): 7 kW Charge/Discharge
• Peak Power: 11 kW for 10 sec
• Peak Current: 32.8 A for 10 sec
• Relative Humidity: 5-95%
• Cooling Strategy: Natural Convection
• Standards: UL1642, UL1973/CE/RCM/IEC 62619, FCC, cETLus Listed
• Weight: 350.53 lb
• Warranty: Limited


Documents

• Specification Sheet
• Instruction/Installation Manual
• Warranty Information

Advanced Energy Storage Capacity

The LG Home Battery Prime 16 kWh delivers an impressive 16 kilowatt-hours of energy storage capacity, making it an ideal solution for homeowners seeking to maximize energy independence. This high-capacity battery efficiently stores electricity generated from solar panels or the grid during off-peak hours, ensuring you have power available when you need it most. Its storage capability supports daily home energy consumption, reducing reliance on the grid and lowering electricity costs without compromising comfort or convenience.

Durability and Safety Features

Safety and longevity are top priorities for LG Home Battery, and the Prime 16 kWh unit excels in these areas. Featuring robust thermal management and advanced lithium-ion technology, this battery system maintains optimal performance even under varying environmental conditions. LG’s commitment to safety includes rigorous testing and multiple safety certifications, assuring homeowners of safe everyday operation. This durable battery supports sustainable energy use while maintaining peace of mind.

Seamless Integration and User-Friendly Design

The LG Home Battery Prime 16 kWh offers easy installation and seamless integration with existing solar power systems. Designed with user convenience in mind, it features smart energy management software that optimizes charging and discharging cycles to maximize efficiency. The sleek and compact design fits neatly into residential spaces without disruption. With mobile monitoring options, users can track real-time battery status and energy usage, enhancing control over their home energy system.
