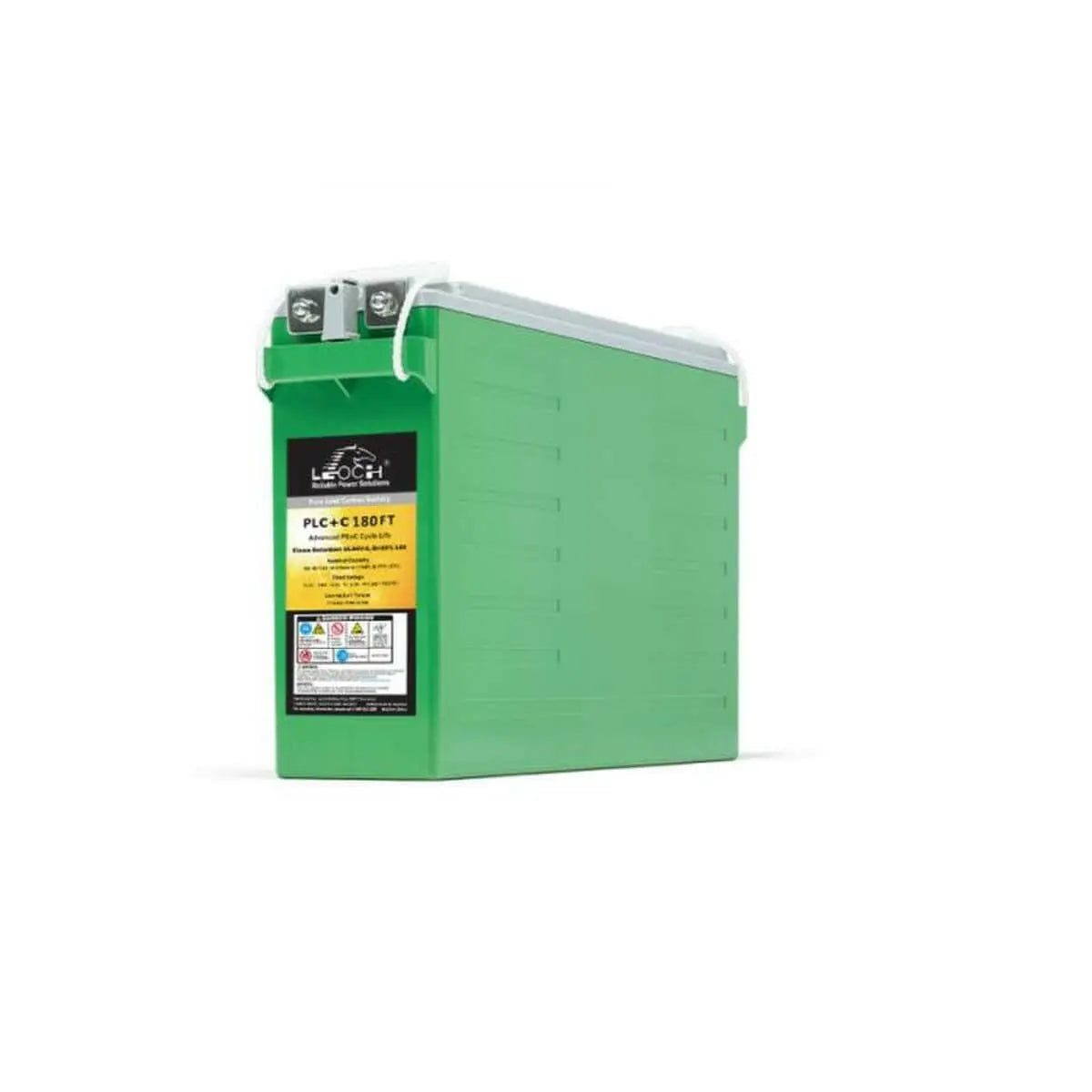

Leoch PLC+C180FT 12V 180Ahr (C20) VRLA Pure Lead With Carbon, 3000 Cycles at 50% DoD (SKU Part Number PLC+C180FT)

LEOCHAdvanced Pure Lead + Carbon batteries offer superior performance in Partial-State-Of-Charge (PSOC) applications. These high power, energy dense batteries offer super-fast charging from 0% to 90% in 1 hour and a long deep cycle life of 3000 cycles @ 50% DOD. These batteries combine pure lead and advanced carbon technologies for extended battery life and rapid charge acceptance.

Features

• Long Deep Cycle Life - 3000 Cycles @ 50% DOD
• Super-Fast Charging: From 0% to 90% SoC level in less than 1 hour
• Exceptional PSOC Performance
• Doubled Shelf Life (2 years) with Low Self-discharging rate
• Pure Lead and Advanced Carbon Technologies for extended battery life
• Rapid charge acceptance - 0% to 90% SoC level in less than 1.5 hr
• Superior partial-state-of-charge (PSOC) performance and over discharge recovery acceptance
• High power density in compact footprint
• True front access terminals - forward sliding safety
• Front accessible gas port for air tight enclosures
• Easy Installation - Ideal for 19/23 in standard cabinets
• Premium flame-retardant ABS/PC jar and cover to UL94V-0 & 28% LOI
• PLC+C series batteries can be stored up to 24 months at 25 deg C(77 deg F), For higher temperatures the time interval will be shorter. Battery needs to be given a freshening charge when the OCV approach 2.10 V/cell or when the maximum storage time is reached, whichever occurs first


Specifications

• Type: Advanced
• Series/Model: PLC+C
• Voltage Rating: 12 V
• Rated Capacity: 197 Ah at 100 hr, 180 Ah at 20 hr, 170 Ah at 10 hr, 155.5 Ah at 5 hr, 144.6 Ah at 3 hr
• Dimensions: 22 in Length x 4.92 in Width x 12.6 in Height
• Terminal Type: M6
• Material: PC-ABS
• Internal Resistance: 3.5 mohm
• Operating Temperature: -40 to 65 deg C Discharge, -20 to 54 deg C Charge, -20 to 50 deg C Storage
• Maximum Charging Current: 0.3C
• Charge Voltage Rating: 2.27+/-0.02 V/cell (Standby Use), 2.35 - 2.4 V/cell (Equalization Use)
• Temperature Coefficient: -3 mV/cell/deg C (Standby Use), -4 mV/Cell/deg C
• Standards: IEC 60896, Leoch®IATF16949, ISO 45001, ISO 9001 & ISO 14001
• Application: Designed For Residential Or Light-commercial Off-grid, Backup / Self-consumption Renewable Energy Storage, Outdoor Cabinet, High Voltage Power Station, Mobile Power Supply For Vehicles, Base Station With Unstable Power Grid


Documents

• Specification Sheet
