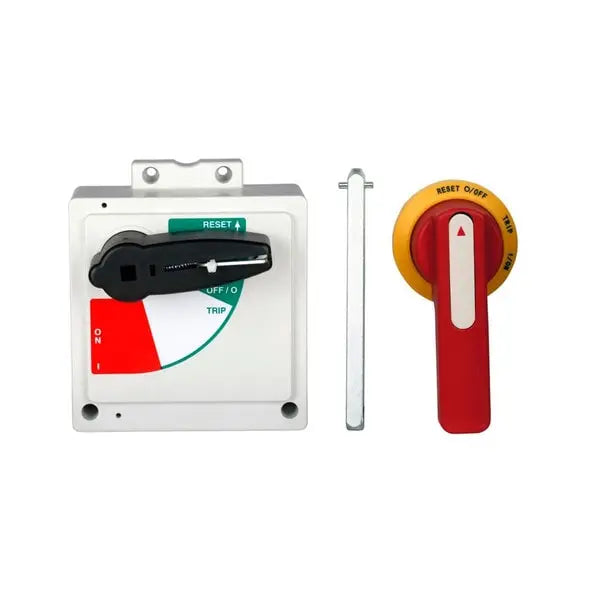

KLHMVD06R - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

The Eaton Molded Case Circuit Breaker Accessory Handle Mechanism is a versatile and essential component designed to enhance the operation of Eaton molded case circuit breakers. This universal rotary through-the-door handle mechanism is compatible with LG-Frame and Frame J-K circuit breakers, providing a safe and reliable way to operate the circuit breaker from a distance. The handle features a 6-inch length and comes in a vibrant red color for easy identification. Designed for Series G breakers, this mechanism ensures smooth and efficient operation, offering both convenience and safety in industrial and commercial applications.

Key Features:

• Accessory Type: Rotary Through-the-Door Handle Mechanism
• Handle Type: Universal Rotary
• Frame Compatibility: LG-Frame, Frame J-K
• Breaker Series: Series G
• Handle Length: 6 Inches
• Color: Red
• Use: For safe, remote operation of circuit breakers

The Eaton Molded Case Circuit Breaker Accessory Handle Mechanism provides an essential solution for easily and safely operating circuit breakers, especially in environments where direct access to the breaker is not feasible.

Documents:

Application notes

Application of Tap Rules to Molded Case Breaker Terminals

Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Brochures

Multi-wire lugs product aid

Motor protection circuit breakers product aid

Catalogs

Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2
Multimedia

Flex shaft handle installation tutorial
Specifications and datasheets

Eaton Specification Sheet - KLHMVD06R
