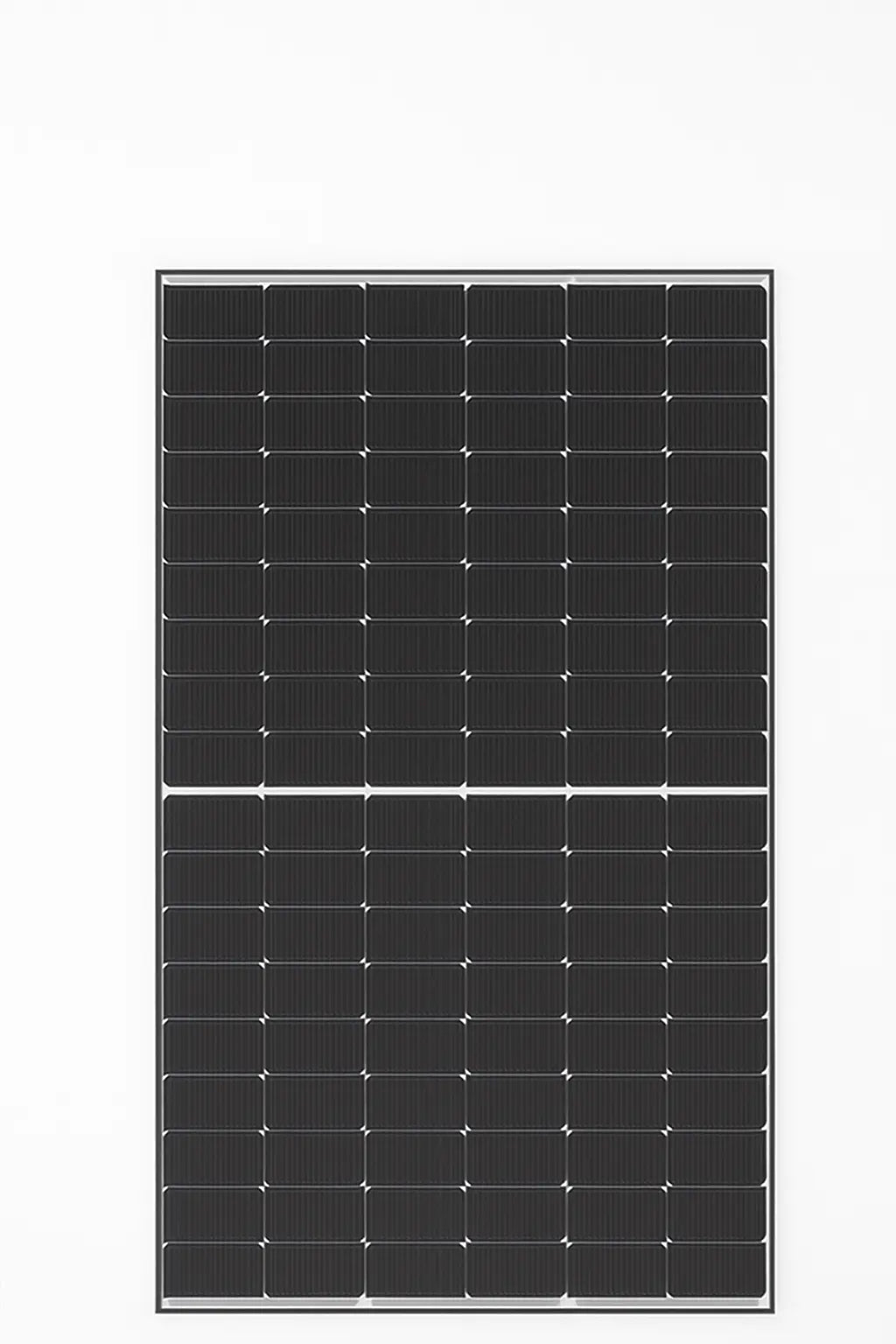

Jinko EAGLE JKM425N‑54HL4‑B 425 W Black‑on‑Black 108 Half‑Cell Mono Solar Panel (N‑Type TOPCon)
The Jinko JKM425N-54HL4-B from the EAGLE series is one of the most sought-after high-efficiency panels in the residential solar market. Featuring N-Type TOPCon (Tunnel Oxide Passivated Contact) technology, this 425W module combines improved temperature tolerance, longer lifespan, and higher output than conventional P-type panels.
Key Features
-
425W Output with High Efficiency (up to 21.76%) – More power in less space
-
N-Type TOPCon Technology – Delivers better long-term performance, lower LID (light-induced degradation), and greater efficiency under heat
-
Half-Cell Configuration (108 cells) – Reduces resistance and improves shading tolerance
-
Black-on-Black Design – Offers a sleek, modern appearance ideal for residential rooftops
-
PID Resistance and Salt Mist Ammonia Certified – Built for durability in harsh environments
-
Top Seller – Trusted by installers for reliability and long-term value
Technical Specifications
| Parameter | Value |
|---|---|
| Rated Power (Pmax) | 425 W |
| Module Efficiency | Up to 21.76% |
| Cell Type | N-Type Monocrystalline TOPCon |
| Cell Count | 108 Half-Cells |
| Max Power Voltage (Vmp) | ~31.86 V |
| Max Power Current (Imp) | ~13.34 A |
| Open Circuit Voltage (Voc) | ~38.45 V |
| Short Circuit Current (Isc) | ~14.04 A |
| Temperature Coeff. Pmax | −0.30 %/°C |
| Operating Temp. Range | −40°C to +85°C |
| Max System Voltage | 1000 V (DC) |
| Maximum Fuse Rating | 25 A |
| Connector Type | MC4 Compatible |
| Certifications | IEC 61215, IEC 61730, UL 61730, ISO 9001/14001, ISO 45001 |
Why Choose the Jinko EAGLE 425W N-Type?
-
Exceptional efficiency and durability in real-world conditions
-
Low degradation rates and 30-year performance warranty (on select versions)
-
Ideal for residential and small commercial projects where space, aesthetics, and performance matter most
