Jinko Eagle 72HM G2 400 Watt JKM400M-72HL-V Mono PERC Diamond Cell 144 Half Cells
-
Estimated Delivery:Jul 21 - Jul 25
-
Free Shipping & Returns: On all orders under $50
Jinko Eagle 72HM G2 400 Watt JKM400M-72HL-V Mono PERC Diamond Cell 144 Half Cells

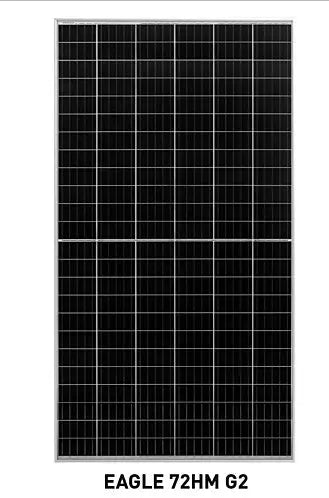

Jinko Eagle 72HM G2 JKM400M-72HL-V 400 Watt Mono PERC Solar Panel
Note: This solar panel ships via freight truck only. It cannot ship via UPS or USPS.
The Jinko JKM400M-72HL-V Eagle G2 400 Watt Mono PERC solar panel delivers high-efficiency performance using advanced Diamond Cell technology. Featuring 144 half-cut monocrystalline PERC cells, this panel reduces power loss and boosts energy output in partial shade and high-temperature environments. With a robust anodized aluminum frame, it withstands heavy snow and wind loads, making it ideal for residential, commercial, or off-grid solar applications. Backed by a 10-year product warranty and a 25-year linear power warranty, the JKM400M-72HL-V ensures long-term reliability and energy savings.
Key Features
- Diamond Half-Cell Technology – World-record breaking efficient mono PERC half-cell solar cells deliver high power in a small footprint
- Power Boost in Cloudy Conditions – A special film diffuses light, boosting performance even with shading by trees or debris
- Thick and Tough – Fire Type 1 rated module engineered with a thick frame, 3.2mm front side glass, and thick backsheet for added durability
- Protected Against All Environments – Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow
- NYSE-listed since 2010 – Bloomberg Tier 1 manufacturer with automated manufacturing utilizing artificial intelligence
- Premium solar module factory in Jacksonville, Florida
Specifications
| Specification | Value |
|---|---|
| Nominal Power | 400 Watts |
| Cell Type | Mono PERC Diamond Cell |
| Cell Arrangement | 144 (6x24) Half Cells |
| Vmp (Max Power Voltage) | 40.16 V |
| Imp (Max Power Current) | 9.96 A |
| Voc (Open Circuit Voltage) | 49.1 V |
| Isc (Short Circuit Current) | 10.61 A |
| Panel Efficiency | 22.3% |
| Dimensions | 79.06" x 39.45" x 1.57" (40mm) |
| Weight | 49.6 lbs |
| SKU | JKM400M-72HL-V |
Certifications
- ISO9001:2008 Quality Standards
- ISO14001:2004 Environmental Standards
- OHSAS18001 Occupational Health & Safety Standards
- IEC61215, IEC61730 Certified
- UL1703/61730 Certified
Warranty
- 10-Year Product Warranty
- 25-Year Linear Power Warranty
Product Datasheet
