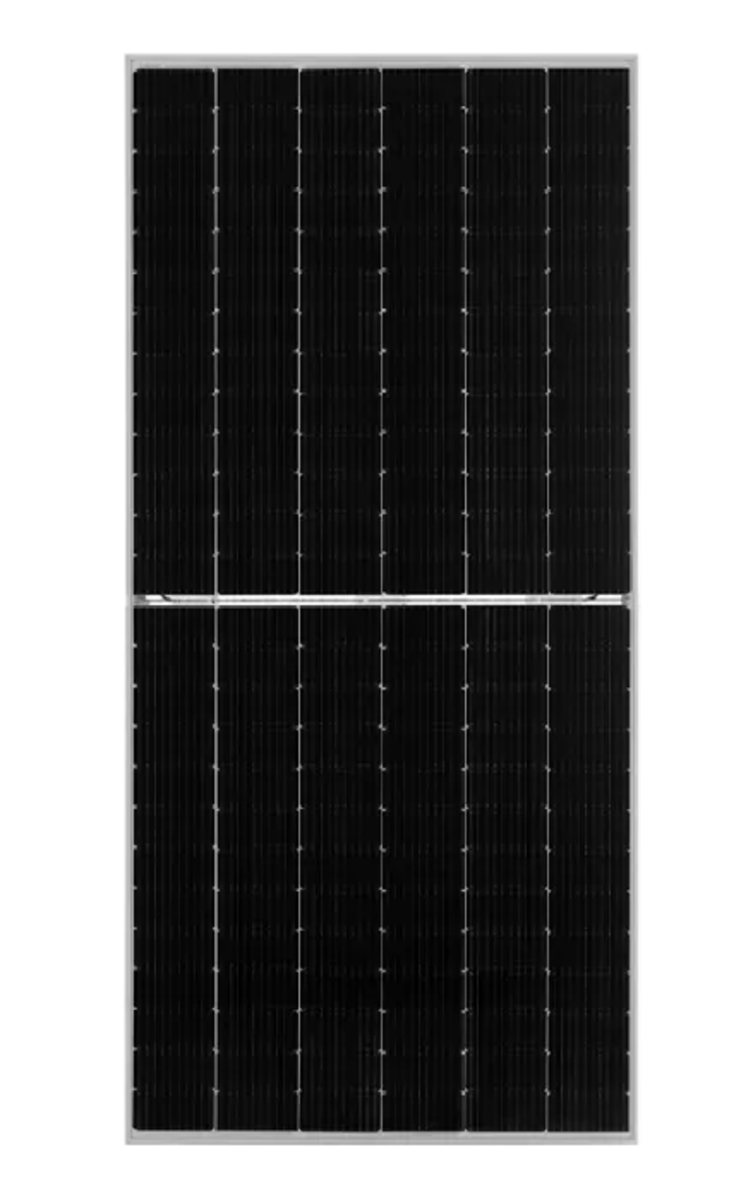

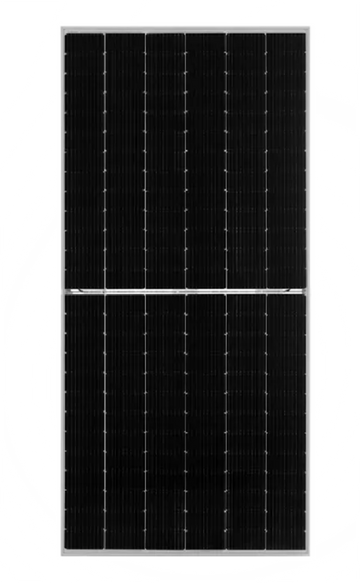

Jinko Eagle 430 W Bifacial Half Solar Panel

Jinko Eagle: Innovative Solar Panel Technology

The Eagle 72HM G4B 430W solar panel by Jinko Solar features multi-busbar half cell technology and high-efficiency half cut solar cells that deliver high power in a small footprint. The bifacial cell architecture allows for backside bonus and increased lifetime power yield. The light-weight design, with the use of a transparent backsheet, enables easy installation and low BOS cost. This solar panel is also designed to be shade tolerant with a twin array design for continued performance even with shading from trees or debris.

Features

• Multi Busbar Half Cell Technology: High efficiency half cut solar cells deliver high power in a small footprint
• Bifacial Power Gain: Bifacial cell architecture allows backside bonus and more lifetime power yield
• Light-Weight Design: Use of transparent backsheet allows for easy installation and low BOS cost
• Shade Tolerant: Twin array design allows continued performance even with shading by trees or debris
• Protected Against All Environments: Certified to withstand humidity, heat, rain, marine environments, wind, hailstorms, and packed snow
• 30-Year linear power warranty

Specifications

• Length: 2096 mm
• Width: 1039 mm
• Depth: 40 mm
• Material: Anodized Aluminum Alloy Frame, Tempered Glass Front Cover
• Color: Black Cell, Silver Frame
• Power Voltage: 40.61 V
• Power Current: 10.59 A
• Power Rating: 430 W
• Open Circuit Voltage: 48.76 V
• Short Circuit Current: 11.28 A
• Voltage Rating: 1500 Vdc
• Cell Type: Bifacial Half
• Number of Cells: 144 (2 x 72)
• Operating Temperature: -40 to 85°C
• Efficiency: 19.8%
• Enclosure Rating/IP Rating: IP68
• Warranty: 30 Years
• Weight: 56.15 lb
• Standards: UL, cULuS, IEC, TUV Certified, CE

Documents

• Specification Sheet

High Efficiency with Bifacial Design

The Jinko Eagle 430 W bifacial solar panel stands out because of its advanced technology. With the ability to capture sunlight from both sides, it enhances energy production significantly. This means that not only does it absorb direct sunlight, but it also utilizes reflected light from surrounding surfaces. As a result, users benefit from increased efficiency and power output, making this panel an excellent choice for both residential and commercial applications.

Durability Meets Performance

One of the key features of the Jinko Eagle is its durability. These panels are designed to withstand harsh weather conditions, including heavy rain and strong winds. Furthermore, the materials used in its construction are resistant to corrosion, which prolongs the lifespan of the panel. Because of this, homeowners and businesses can rely on the Jinko Eagle for long-term performance, reducing the need for frequent replacements or repairs.

Environmentally Friendly Energy Solution

Investing in the Jinko Eagle 430 W solar panel not only contributes to energy savings but also supports environmental sustainability. By opting for renewable solar energy, users reduce their carbon footprint and promote the use of clean energy. Additionally, the bifacial design means more efficient land use, allowing for better energy harvesting without requiring additional space. This feature makes the Jinko Eagle ideal for those looking to make a positive impact on the planet while enjoying lower energy costs.
