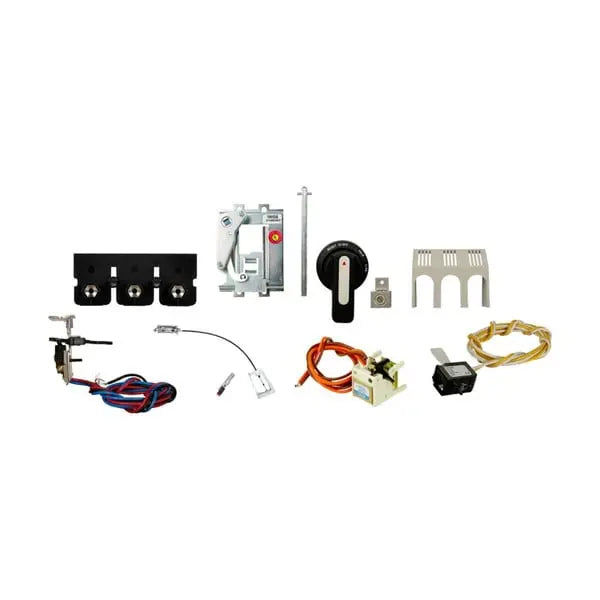

JGHMVD24BX - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

Eaton Molded Case Circuit Breaker Accessory Handle Mechanism is designed for robust performance in harsh environments. The S2 handle mechanism is compatible with JG frames and part of the Series G product line. With a 24-inch flex shaft and NEMA 4/4X enclosure rating, this black and blue handle mechanism ensures weather-resistant and reliable circuit breaker operation.

Key Features:

• Handle Type: S2 Handle Mechanism
• Frame Compatibility: JG Frame
• Series: Series G
• Color: Black/Blue
• Shaft Length: 24 Inch
• Enclosure Rating: NEMA 4/4X

This handle mechanism is ideal for applications requiring external breaker control and enhanced environmental protection.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Tap Rules to Molded Case Breaker Terminals

Brochures
Multi-wire lugs product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Flex shaft handle installation tutorial

Specifications and datasheets
NG and ND-Frame molded case circuit breakers
