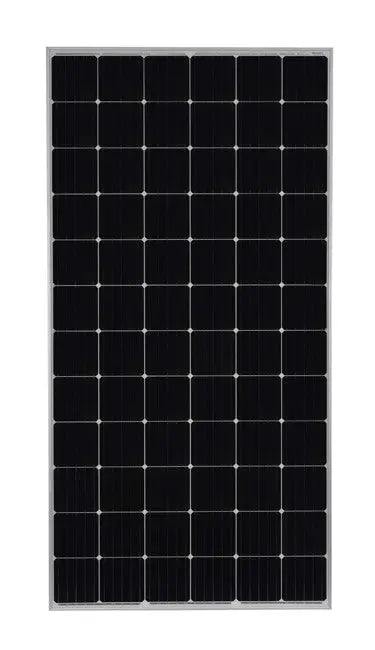

JA solar 395W Solar Panel 72 cell JA-JAM72-S09-395PR-V

JA solar 395W solar panel: Advanced 72-Cell Technology for Superior Energy

JA Solar Holdings Co.,Ltd is a world leading manufacturer of high-performance solar power products that convert sunlight into electricity for residential, commercial and utility-scale power generation . The company was founded in May 2005 and publicly listed on NASDAQ in February 2007. JA Solar has been the world's leading cell producer since 2010, and has firmly established itself as a tier 1 module supplier since 2012. Capitalizing on our strength in solar cell technology, we are committed to provide modules with unparalleled conversion efficiency, yield efficiency, and reliability to enable you to maximize your returns on PV projects. With its leading industry experience, continuous effort on R&D, customer-oriented service and solid financial status, JA Solar is your best choice of long-term trustworthy partner.

Features

• 5BB design reduces cell series resistance and stress between cell interconnectors to improve module reliability and conversion efficiency. High output, up to 16.99% module conversion efficiency. Certified with 1500V DC IEC standard. 50% more strings and fewer components enable lower BOS costs. Anti-soiling surface reduces power loss from dirt and dust. Outstanding performance in low-light irradiance environments. Excellent mechanical load resistance: Certified to withstand high wind load and heavy snow load. Strong salt and ammonia resistance certified by TUV NORD
• Reliable Quality- Positive power tolerance: 0~+5W. Modules binned by current to improve system performance. Potential Induced Degradation (PID) Resistant in accordance to IEC 32804
• Comprehensive Certificates - IEC 61215, IEC 61730, UL1703, CEC Listed, MCS and CE. ISO 9001: 2008: Quality management systems. BS OHSAS 18001: 2007: Occupational health and safety management systems. Environmental policy: The first solar company in China to complete Intertek's carbon footprint evaluation program and receive green leaf mark verification for our products


Specifications

• Length: 1988 ±2 mm
• Width: 1005 ±2 mm
• Height: 40 ±1 mm
• Cells Technology: Monocrystalline (Mono)
• Number of Half Cells: 72 (6 x 12)
• Maximum Power (Pmax): 395 W STC / 292 W NOCT
• Maximum Power Voltage (Vmp): 40.48 V STC / 38.21 V NOCT
• Maximum Power Current (Imp): 9.76 A STC / 7.65 A NOCT
• Open-Circuit Voltage (VOC): 49.64 V STC / 47.09 V NOCT
• Short-Circuit Current (Isc): 10.27 A STC / 8.11 A NOCT
• Maximum System Voltage: 1000 V / 1500 VDC (UL)
• Maximum Series Fuse Rating: 20 A
• Module Efficiency: 19.8%
• Frame Color: Silver
• Backsheet Color: White
• Irradiance: 1000 W/m² STC / 800 W/m² NOCT
• Output Cables: 4 mm² (12AWG)
• Connector Type: QC 4.10 (1000 V), QC 4.10-35 (1500 V)
• Fire Type: Type 1
• Front Side Maximum Static Loading: 5400 Pa
• Rear Side Maximum Static Loading: 2400 Pa
• Operating Temperature: -40 to 185°F
• Cell Temperature: 25°C STC
• Ambient Temperature: 20°C NOCT
• Temperature Coefficients of Pmax: -0.37%/°C
• Temperature Coefficients of Open-Circuit Voltage (VOC): -0.3%/°C
• Temperature Coefficients of Isc: 0.06%/°C
• Nominal Operating Cell Temperature: 45 ±2°C
• Air Mass (AM): 1.5 STC / 1.5 NOCT
• Junction Box: IP67 Rated, 3 Diodes
• Power Output Tolerance: 0-5 W
• Standards: IEC 61215, IEC 61730, UL 1703, ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007, IEC TS 62941:2016, TUV, ETL, PV Cycle, MCS, IEC, UL
• Warranty: 12 Years Product, 25 Years Linear Performance
• Weight: 22.6 kg ±3%


Documents

• Specification Sheet
• Instruction/Installation Manual


High Performance with 72 Cells

The JA solar 395W solar panel features an advanced 72-cell design, providing excellent power output for residential and commercial solar projects. This configuration optimizes the capture of sunlight, increasing overall efficiency and maximizing electricity generation. The panel's quality cells are engineered to maintain high performance in various weather conditions, ensuring stable and reliable energy production throughout the year.

Robust Durability and Weather Resistance

Built to last, the JA solar 395W solar panel offers superior durability, with a rugged frame and tempered glass that resist wind, snow, and other harsh environmental factors. The panel is suitable for diverse climates, maintaining efficiency even under extreme temperatures. This durability guarantees long-term investment protection, making it an ideal choice for both rooftop installations and ground-mounted solar arrays.

Efficient and Sustainable Energy Solution

This JA solar 395W solar panel combines high efficiency with eco-friendly performance, reducing carbon footprints while delivering consistent power. Its reliable output supports energy independence by minimizing reliance on fossil fuels. Easy to install and maintain, the panel meets rigorous international standards, making it a trusted option for those looking to integrate sustainable energy solutions into their homes or businesses.
