JA Solar 580W Bifacial Double Glass Solar Panel – JAM72D30-580/LB
Explore the Advanced Features of JA Solar 580W Bifacial Double Glass Solar Panel

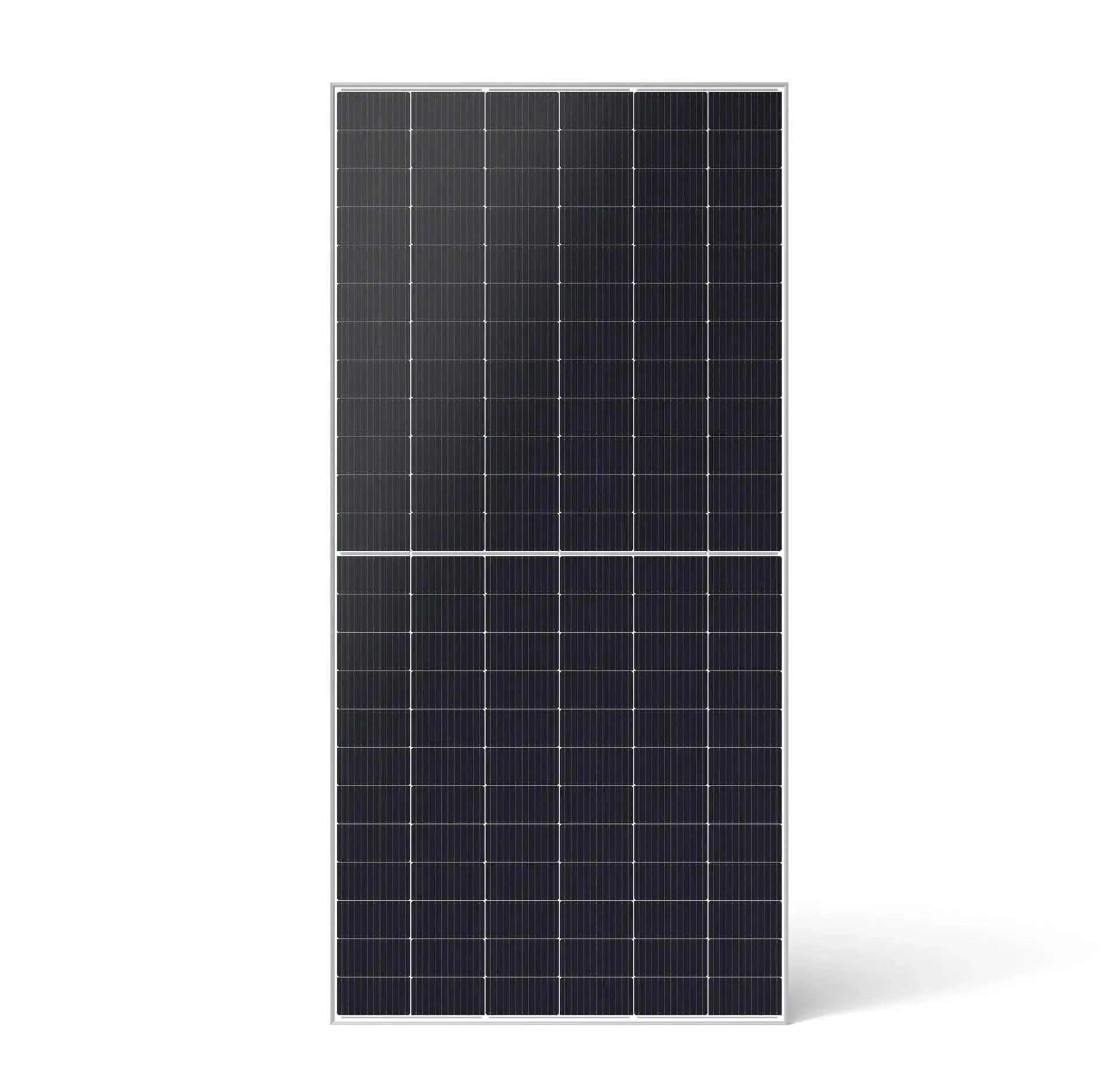

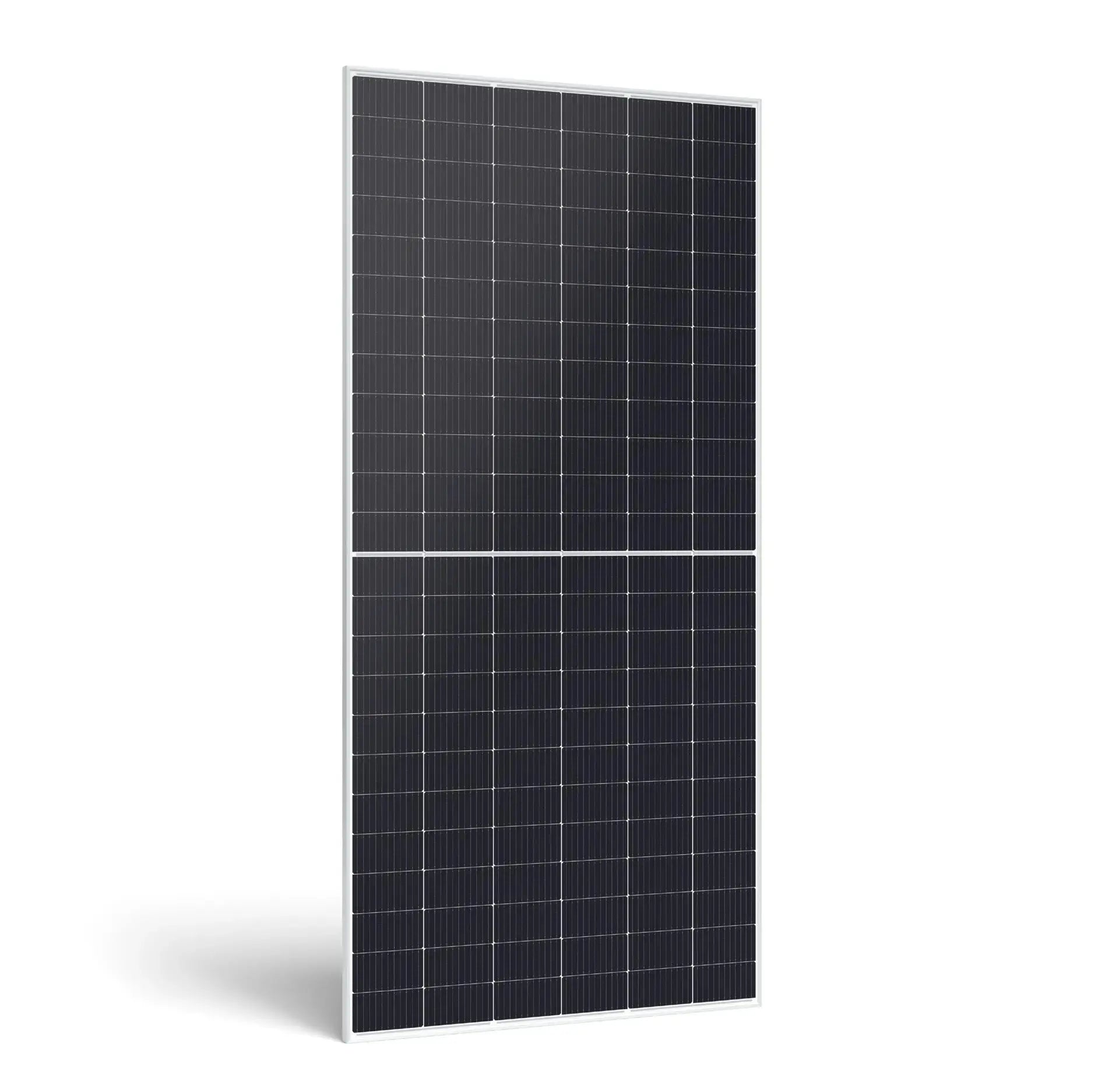

The JA Solar JAM72D30-580/LB is a high-performance 580W bifacial double glass solar panel featuring MBB (Multi-Busbar) Half-Cell Technology for superior energy yield, reliability, and longevity. Ideal for residential, commercial, and utility-scale solar installations.
Key Features
- 580W rated maximum power output
- 21.9% module efficiency
- Bifacial technology – up to 24% additional energy gain from rear side
- MBB Half-Cell Technology for reduced shading losses
- Double glass construction for enhanced durability
- 0.45% annual degradation over 30 years
- IP68 junction box with 3 diodes
- Maximum system voltage: 1500V DC
- Operating temperature: -40°C to +85°C
Electrical Specifications (STC)
| Parameter | Value |
|---|---|
| Rated Maximum Power (Pmax) | 580W |
| Open Circuit Voltage (Voc) | 51.04V |
| Maximum Power Voltage (Vmp) | 42.24V |
| Short Circuit Current (Isc) | 14.50A |
| Maximum Power Current (Imp) | 13.73A |
| Module Efficiency | 21.9% |
| Power Tolerance | 0 ~ +3% |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 30A |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Cell Type | Monocrystalline (p-Type) |
| Number of Cells | 144 (6×24) |
| Dimensions | 2333±2mm × 1134±2mm × 30±1mm |
| Weight | 32.5 kg (71.7 lbs) |
| Front Glass / Back Glass | 2.0mm / 2.0mm Tempered |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 Diodes |
| Connector | QC4.10-351 / MC4-EVO2A |
| Cable Cross Section | 4mm² (IEC) / 12 AWG (UL) |
| Max Static Load (Front) | 5400 Pa (112 lb/ft²) |
| Max Static Load (Back) | 2400 Pa (50 lb/ft²) |
| Packaging | 36 pcs/Pallet, 720 pcs/40HQ Container |
Warranty
- 12-Year Product Warranty
- 30-Year Linear Power Output Warranty (0.45% annual degradation)
Certifications
- ISO 9001:2015 – Quality Management Systems
- ISO 14001:2015 – Environmental Management Systems
- ISO 45001:2018 – Occupational Health & Safety
- IEC 62941:2019 – PV Module Quality System
- UL Type 29 / Class C Fire Performance
Datasheet
Download JA Solar JAM72D30 LB Datasheet (PDF)
Outstanding Energy Yield with Bifacial Double Glass Solar Panel Technology

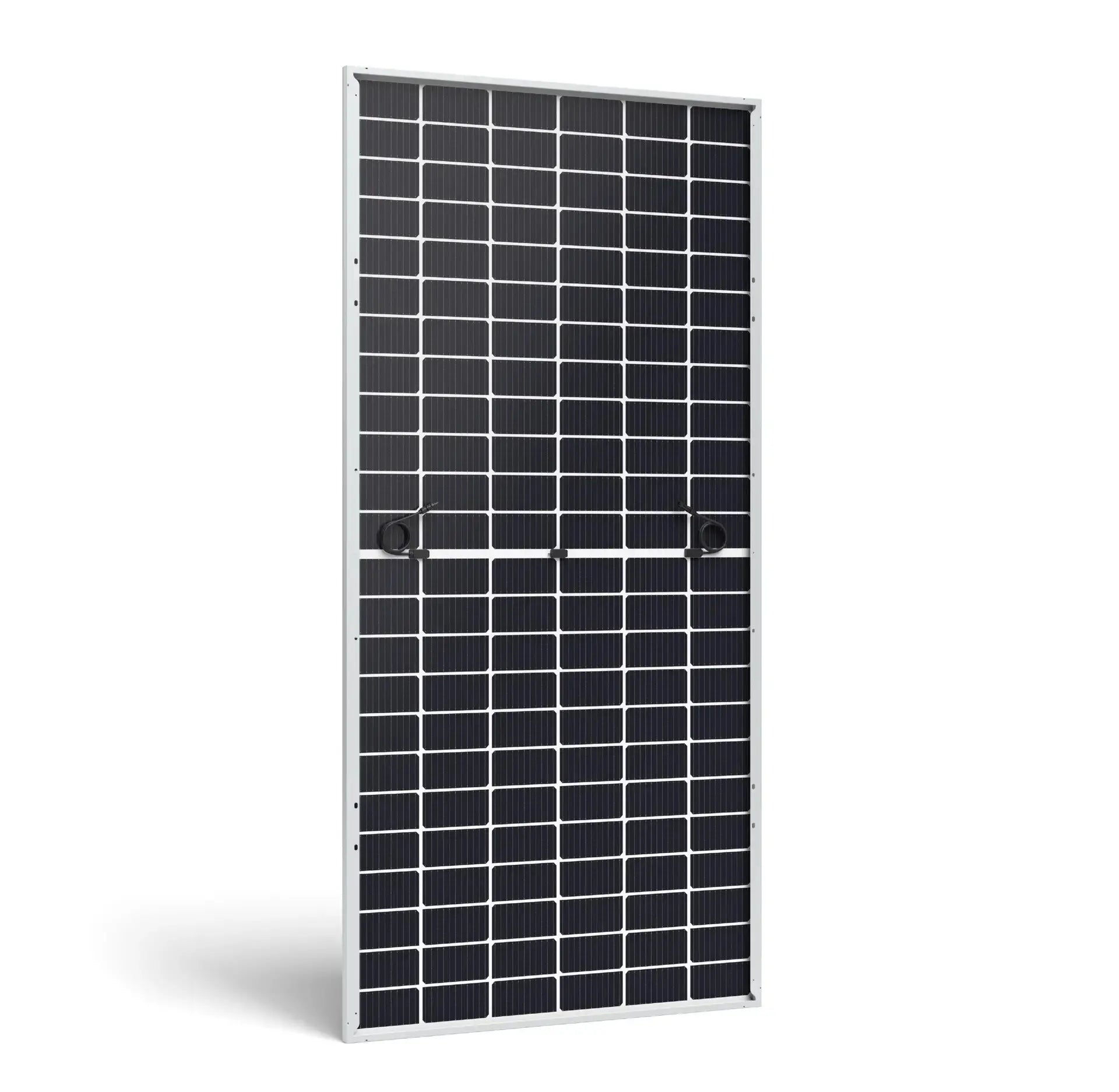

The JA Solar 580W bifacial double glass solar panel leverages cutting-edge technology by capturing sunlight on both its front and rear surfaces. This bifacial design significantly boosts energy generation, making the panel highly efficient, especially in environments with reflective surfaces like snow or sand. The double glass configuration enhances durability, reducing potential damage from weather conditions, and extends the panel's lifespan. As a result, this solar panel is an excellent choice for maximizing power output and long-term reliability.
Robust Durability and Weather Resistance
Engineered with a double glass structure, the JA Solar 580W panel offers superior mechanical strength and weather resistance. This design improves resistance against external impacts such as hail, wind loads, and temperature fluctuations, ensuring reliable performance in harsh climates. Additionally, the double glass eliminates the risk of PID (Potential Induced Degradation) and enhances corrosion protection, making it ideal for diverse installation environments, from residential rooftops to large-scale solar farms.
High Efficiency and Enhanced System Performance
Featuring high-efficiency solar cells, the JAM72D30-580/LB model delivers outstanding power output of 580W, which optimizes energy production per panel. This efficiency helps reduce the overall system size and installation cost while generating more electricity. Combined with its bifacial capability, the panel improves the overall solar system performance, making it a preferred solution for users looking to maximize renewable energy harvesting without compromising on durability or installation flexibility.
