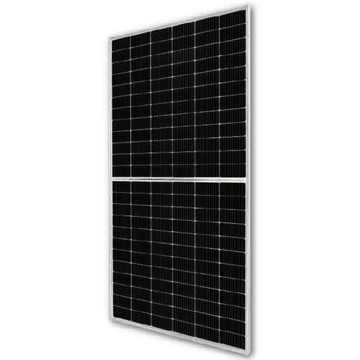

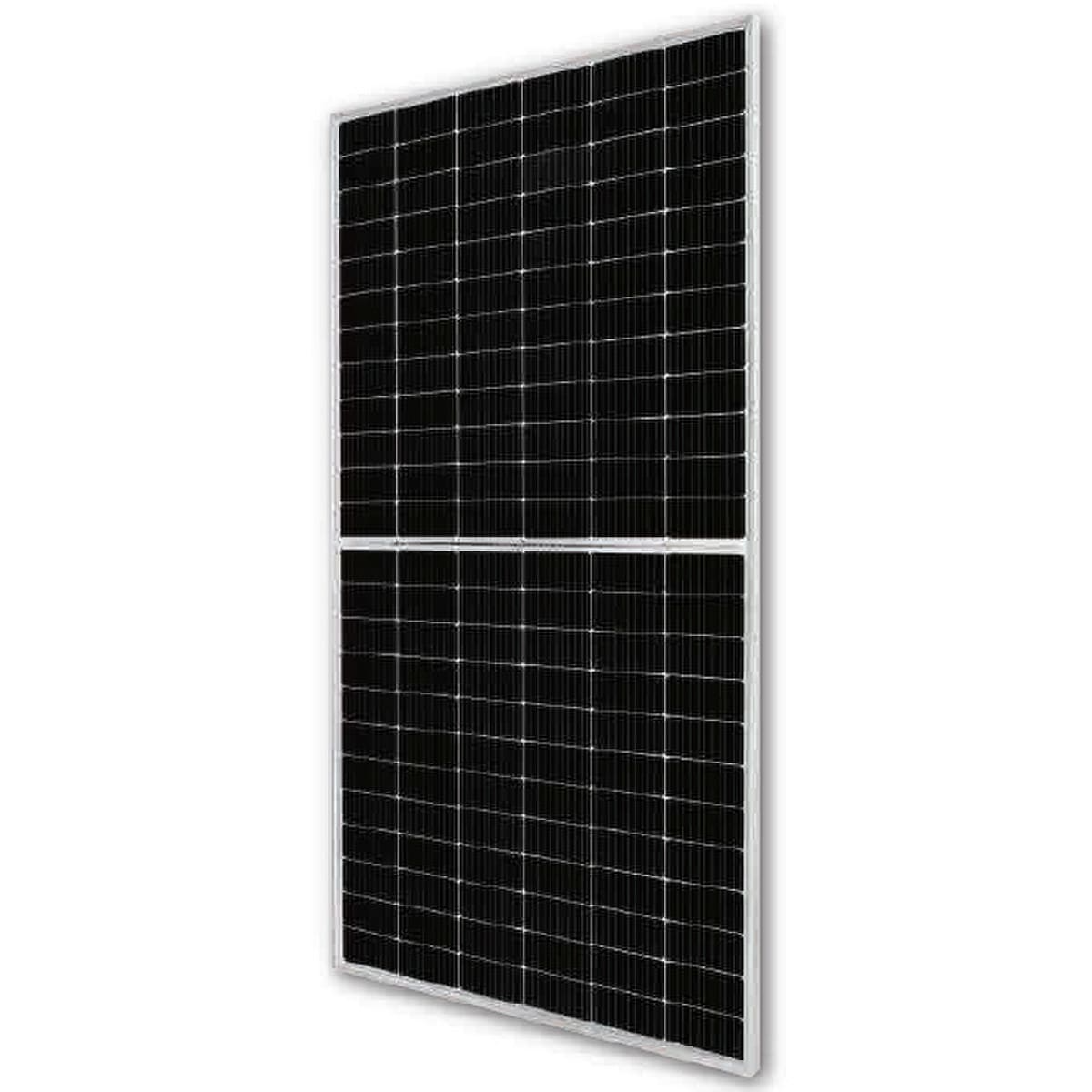

JA Solar 1500 V 535 W Mono Solar Module

Assembled with multi-busbar 11 busbar bifacial PERC cells and half cut configuration, these double glass modules have the capability of converting the reflected light from the rear side of the module together with the front side to provide higher output power, lower temperature coefficient, less shading loss; as well as enhanced tolerance for mechanical loading.

Specifications

• Size: 89.96 in x 44.65 in x 1.38 in
• Power Current: 12.9 A
• Power Rating: 535 W
• Open Circuit Voltage: 49.45 V
• Short Circuit Current: 13.79 A
• Voltage Rating: 1500 V
• Cell Type: Mono
• Number of Cells: 144
• Operating Temperature: -40 to 85 deg F
• Efficiency: 20.6%
• Connection Type: QC4
• Fuse Amperage Rating: 30 A
• Cable Length: 300/400 mm Portrait, 1300 mm Landscape
• Tolerance: 0/+5W


Documents

• Specification Sheet
