IronRidge XR1000 17.5ft Anodized Rail Mill, XR-1000-210M

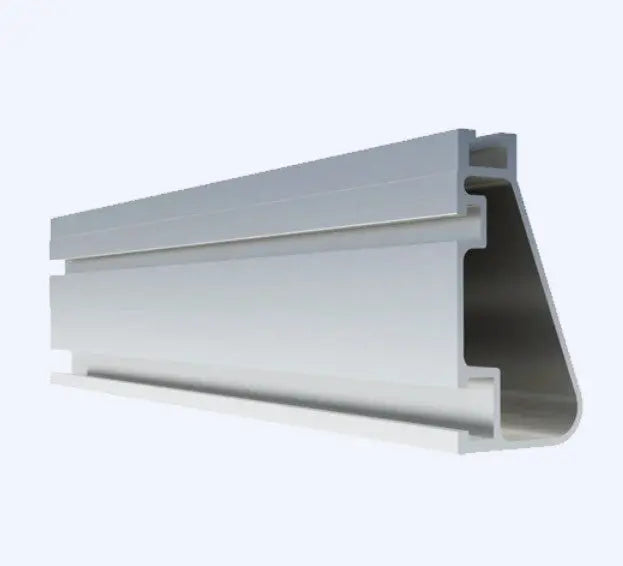

IronRidge XR1000 Aluminum Rail – 210" (17' 6") Mill Finish
The IronRidge XR1000 Rail (XR-1000-210M) is engineered for ultimate strength and reliability in solar mounting. Ideal for installations in areas with extreme wind or snow loads, the XR1000 provides maximum structural support for larger solar arrays, making it well-suited for both residential and commercial applications.
The rail's thick aluminum walls and internal web structure enhance its load-bearing capacity, allowing it to withstand the toughest environmental conditions without compromising performance. Designed with IronRidge's proprietary curved profile, the XR1000 optimizes weight distribution and increases durability while delivering a clean, streamlined appearance.
Key Features
- Heavy-Duty Construction: Withstands extreme wind and snow loads
- Enhanced Load-Bearing Capacity: Thick aluminum walls and internal web structure
- Optimized Curved Profile: Improves weight distribution and increases durability
- Versatile Applications: Suitable for both residential and commercial solar installations
- Easy Installation: Compatible with various IronRidge components for a seamless setup
- Spanning Capability: Up to 12 feet for commercial applications
- Anodized Mill Finish: Corrosion-resistant aluminum finish
Technical Specifications
| Specification | Value |
|---|---|
| Part Number (MPN) | XR-1000-210M |
| Length | 210" (17' 6" / 17.5 ft) |
| Finish | Mill (Anodized Aluminum) |
| Material | 6000-Series Aluminum |
| Shipping Weight | 18 lb |
| Shipping Dimensions | 210 x 2 x 3 in |
| Total Cross-Sectional Area | 0.807 in² |
| Section Modulus (X-axis) | 0.530 in³ |
| Moment of Inertia (X-axis) | 0.843 in⁴ |
| Moment of Inertia (Y-axis) | 0.182 in⁴ |
| Torsional Constant | 0.436 in³ |
| Polar Moment of Inertia | 0.330 in⁴ |
Warranty
IronRidge provides a 25-Year Limited Product Warranty on the XR1000 Rail.
Documentation
- XR1000 Rail Cut Sheet (PDF)
- Roof Mount Engineering Design Guide (PDF)
- XR Rail Family Tech Brief (PDF)
Note: This item ships via truck freight due to its length.
