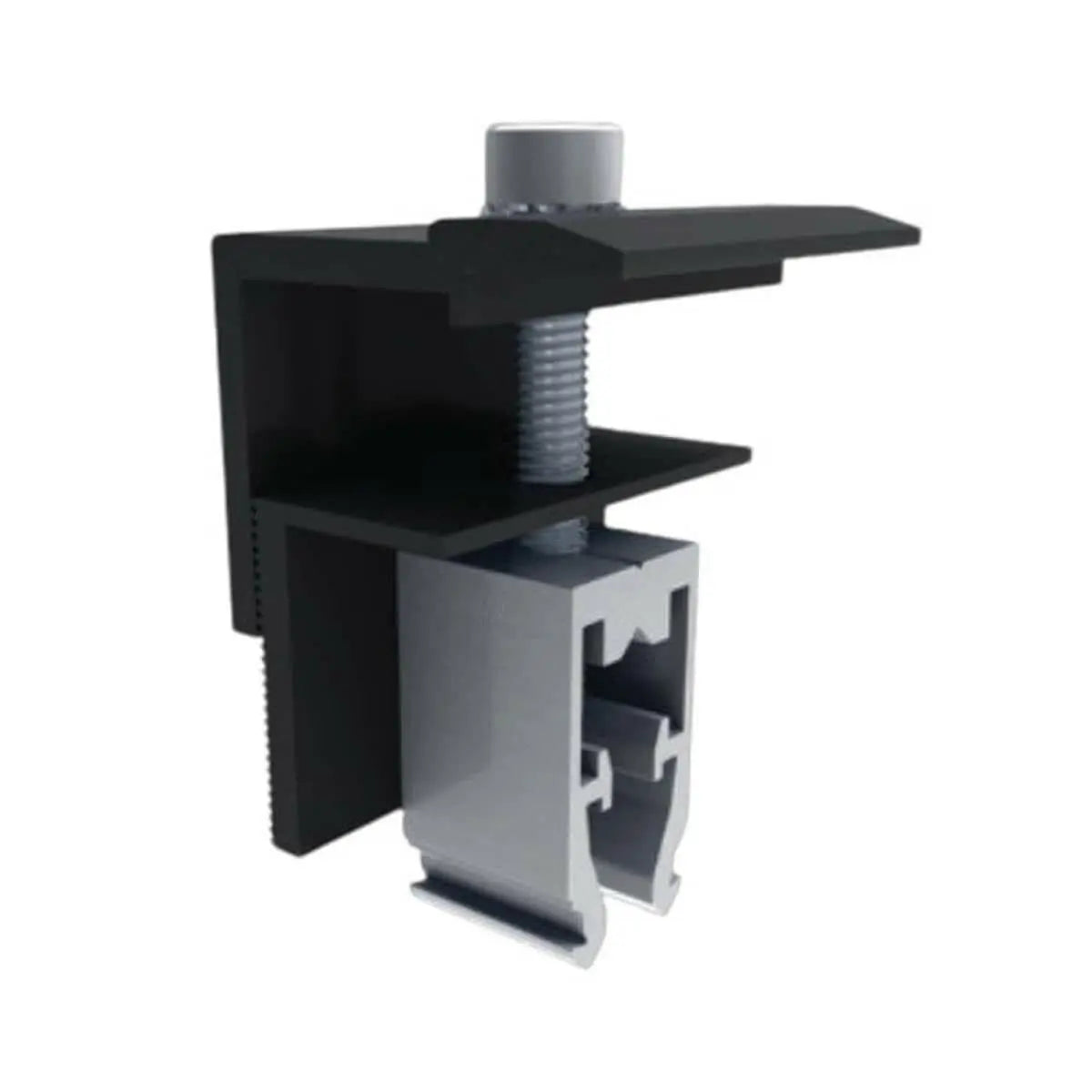

IronRidge Universal End Clamp, 30-45mm, Mill (Priced as each)

IronRidge Universal End Clamp: Durable and Versatile Solar Mounting Solution

The QRail Series is an innovative rooftop racking system featuring QClick and QSplice technology that simplifies and speeds installation. QRail seamlessly combines with QuickMount waterproof mounts to provide a complete, fully integrated racking and mounting solution for installing solar PV modules on any roof. QClick and QSplice technologies make installation fast and easy. Electrical bonding is fully integrated into every system component. QRail also comes with QDesign, a free online tool to enable quick and easy design of solar array configurations, generate complete engineering reports and calculate a precise bill of material for all the mounting, racking and accessories needed for a complete solar array. QRail is available in aluminum mill and black finishes.The universal mid and end clamps use QClick technology to simply "click" into the rail channel and remain upright, ready to accept the module. The pre-assembled clamps fit virtually all module frames and require no extra hardware, eliminating pre-loading and reducing installation time. Once installed, the clamps easily slide in the channel for fine-tuning module placement.QRail innovative internal QSplice installs flush in seconds, requiring no tools or screws. Simply insert QSplice into the rail and slide the other rail on to create a fully structural, bonded splice.The QRail system provides an integrated electrical bonding path, ensuring that all exposed metal parts and the solar module frames are electrically connected. All electrical bonds are created when the components are installed and tightened down.QRail, together with QuickMount waterproof mounting products, provides the benefit of a single-sourced, seamlessly integrated rooftop installation that works with all roof types - composition/asphalt shingles, flat or curved tile, metal shingle, shake, slate and low slope roofs. The QRail system also works with any roof attachment system for maximum flexibility.QRail is engineered for optimal structural performance. The system is certified to UL 2703, is fully code compliant and backed by a 25-year warranty. QRail is available in Light and Standard versions to match all geographic locations. QRail is compatible with virtually all modules and works on a range of pitched roof surfaces. Solar modules can be mounted in portrait or landscape orientation in standard or shared-rail configurations.

Features

• Aluminum QRails are available in two sizes to match all climate conditions: standard and light
• QRails come in three lengths - 168 inches (14 ft), 183in (15.25 ft), and 208 inches (17.3 ft) - and in two finishes: mill and black
• Designed for strength and versatility
• Modules can be mounted in portrait or landscape orientation in either standard or shared rail configurations
• Universal mid- and end-clamps fit nearly all module sizes
• Mid and end clamps with QClick Technology install quickly and remain in position for easy module placement
• QSplice tool-free, bonded, structural splice installs in seconds
• Fully integrated electrical bonding
• Module-level power electronics can be easily attached and electrically bonded
• QDesign, a free online design tool
• 25-year limited product warranty


Specifications

• Suitable For Use With: 30-45 mm Module
• Finish: Black
• Material: Aluminum
• Standards: CE, IEC, ETL Listed
• Weight: 1 lb
• Warranty: 25 Years


Documents

• Specification Sheet
• Instruction/Installation Manual 1
• Instruction/Installation Manual 2
• Rail Cutting Guide
• QRail Approved Modules List Guide

• Test Verification of Conformity 1
• Test Verification of Conformity 2

Reliable and Secure Solar Panel Fixing

The IronRidge Universal End Clamp is designed to provide a secure and robust connection for solar panels within the 30-45mm frame range. It ensures that panels remain firmly attached to the mounting rails, protecting your investment from environmental challenges such as wind and vibration. Crafted to meet the highest quality standards, this clamp offers reliability and peace of mind in solar panel installations of various sizes and styles.

High-Quality Mill Finish for Longevity

This end clamp comes with a mill finish that not only gives it a sleek and professional look but also provides strong resistance to corrosion and weathering. The mill finish enhances durability, making it suitable for outdoor applications where exposure to sunlight, rain, and temperature variations is common. This feature helps extend the lifespan of your mounting hardware and maintains structural integrity over time.

Universal Compatibility and Easy Installation

With a broad compatibility range from 30 to 45mm, the IronRidge Universal End Clamp fits a wide variety of solar panel frames. Its universal design streamlines the installation process, saving time and effort for professionals and DIY installers alike. The clamp’s user-friendly features make it adaptable to different mounting configurations, ensuring secure attachment without complex tools or procedures.
