IronRidge GM 2" Sleeve, Diagonal Brace

Explore the IronRidge GM Sleeve: Essential Diagonal Brace Component

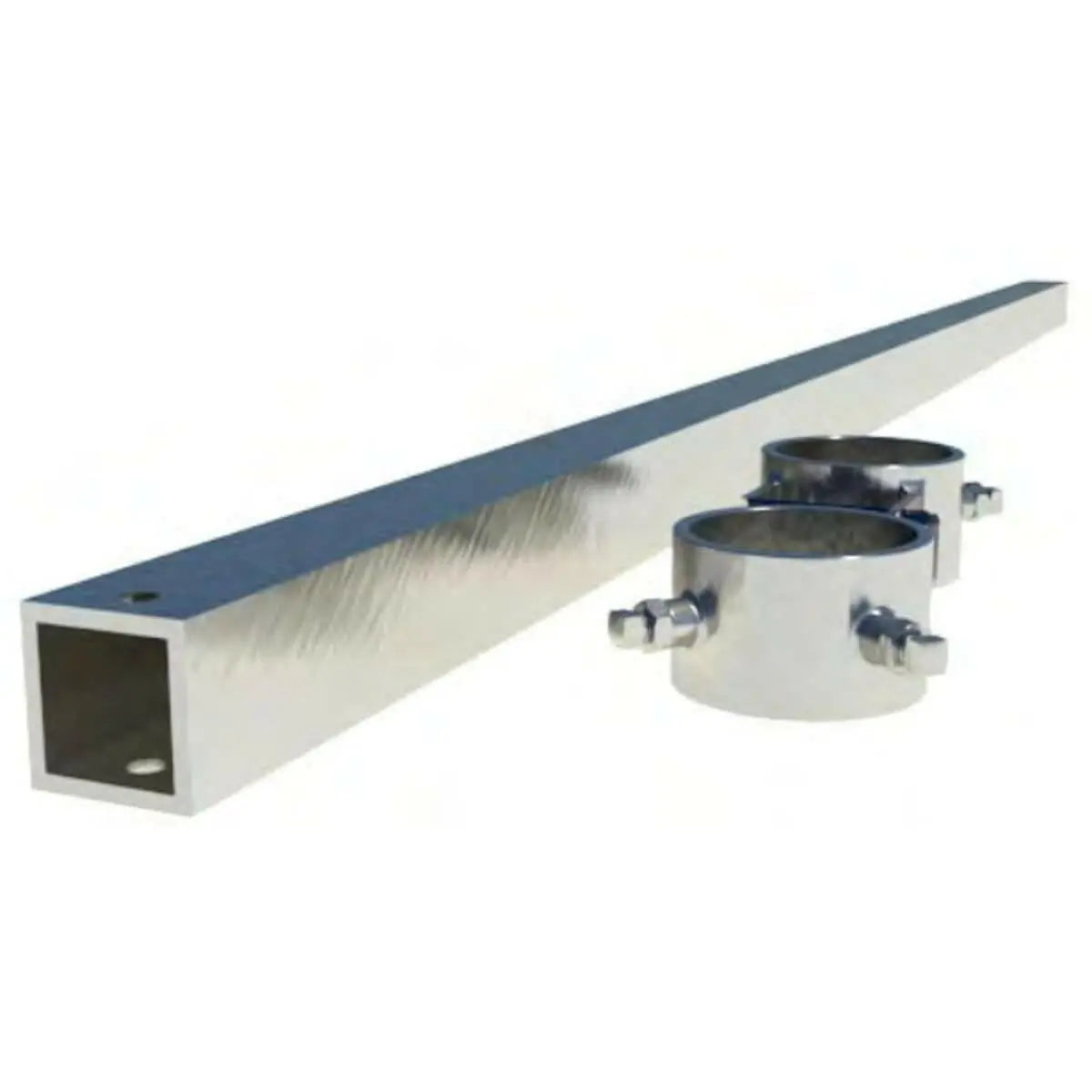

This optional diagonal brace is for installations that require extra support. Pieces include the brace, sleeves, and hardware for installation between one north and south pair of support legs

Specifications

• Type: Ground Mount
• Finish: Mill
• Suitable For Use With: 2 in Diagonal Brace
• Standards: CE, IEC, ETL Listed
• Warranty: Limited
• Weight: 5 lb


Documents

• Brochure
• Instruction/Installation Manual
• Technical Brief
• Warranty Information

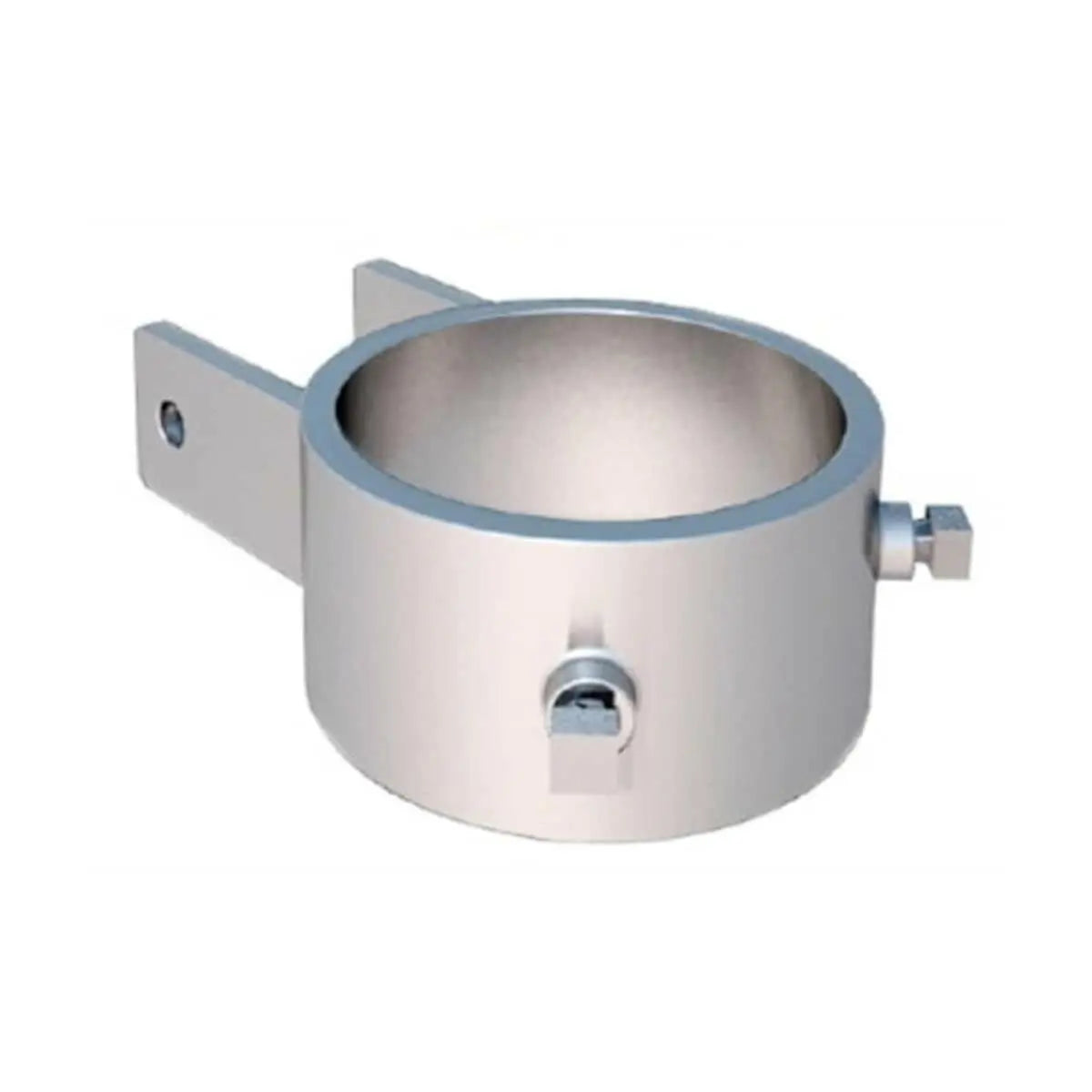

What is the IronRidge GM Sleeve?

The IronRidge GM sleeve is a critical component designed explicitly for use with diagonal braces in solar racking systems. This 2-inch sleeve provides a secure connection point that enhances the structural integrity of mounting arrays. Crafted to fit perfectly with IronRidge’s GM braces, it offers ease of installation and long-lasting durability. Incorporating the IronRidge GM sleeve into your solar array ensures that the diagonal braces function optimally, resisting lateral forces and maintaining the system’s alignment over time.

Benefits of Using the IronRidge GM Sleeve

Using the IronRidge GM sleeve enhances the overall stability of solar panel mounts by reinforcing diagonal braces. Its sturdy build resists corrosion, ensuring prolonged performance in harsh outdoor environments. The sleeve also simplifies the assembly process, reducing installation time and potential errors. By integrating this sleeve, installers can achieve a more robust and durable racking system, which ultimately helps protect the solar investment against wind loads and other structural stresses.

Installation Tips for the IronRidge GM Sleeve

Installing the IronRidge GM sleeve is straightforward when following proper guidelines. Begin by sliding the sleeve over the diagonal brace’s designated section, making sure it aligns correctly with mounting holes. Secure it firmly using recommended fasteners to avoid any movement or shifting during operation. Always double-check tightness after installation to guarantee maximum safety and strength. Proper use of the IronRidge GM sleeve is vital for maintaining the engineered performance specifications of IronRidge solar mounting systems.
