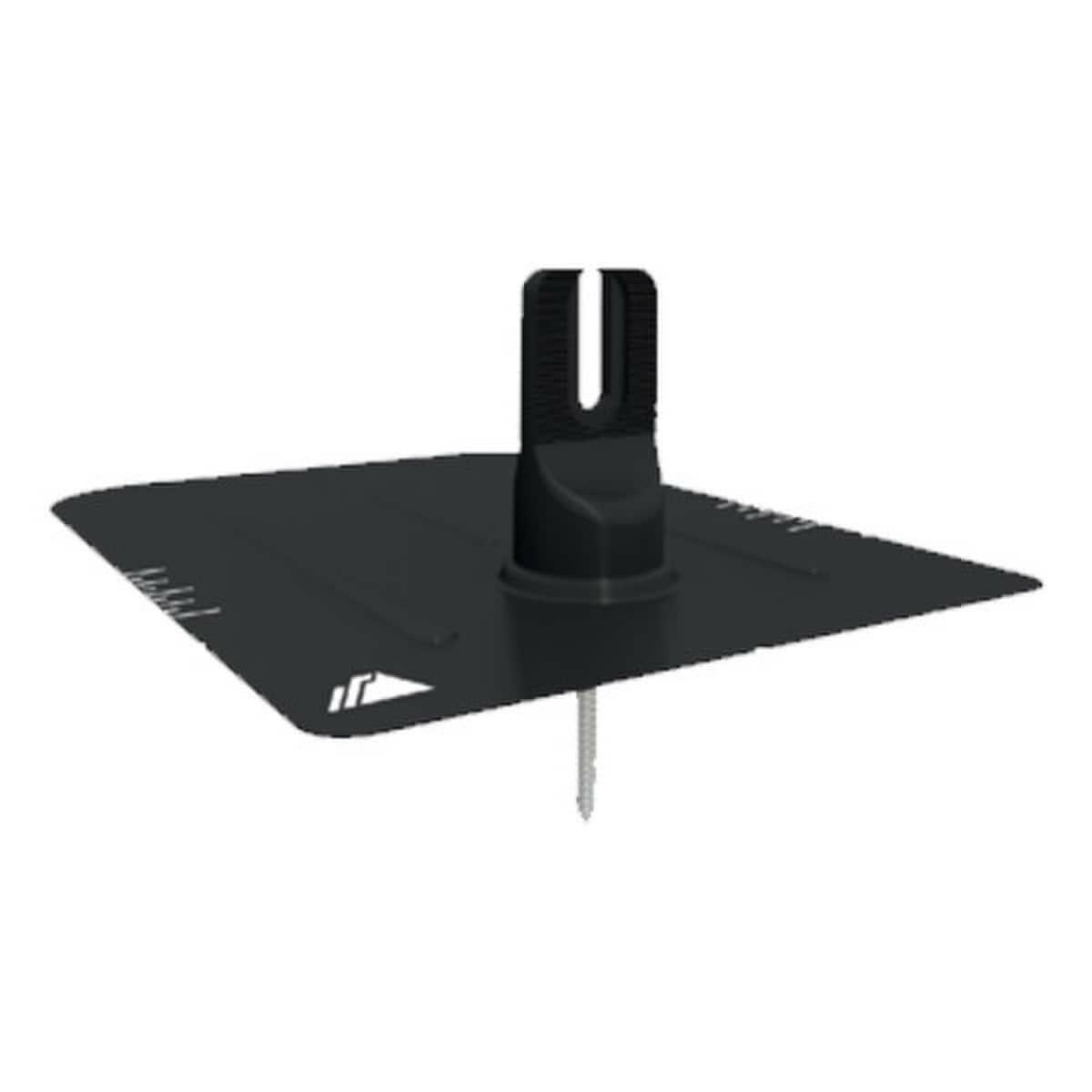

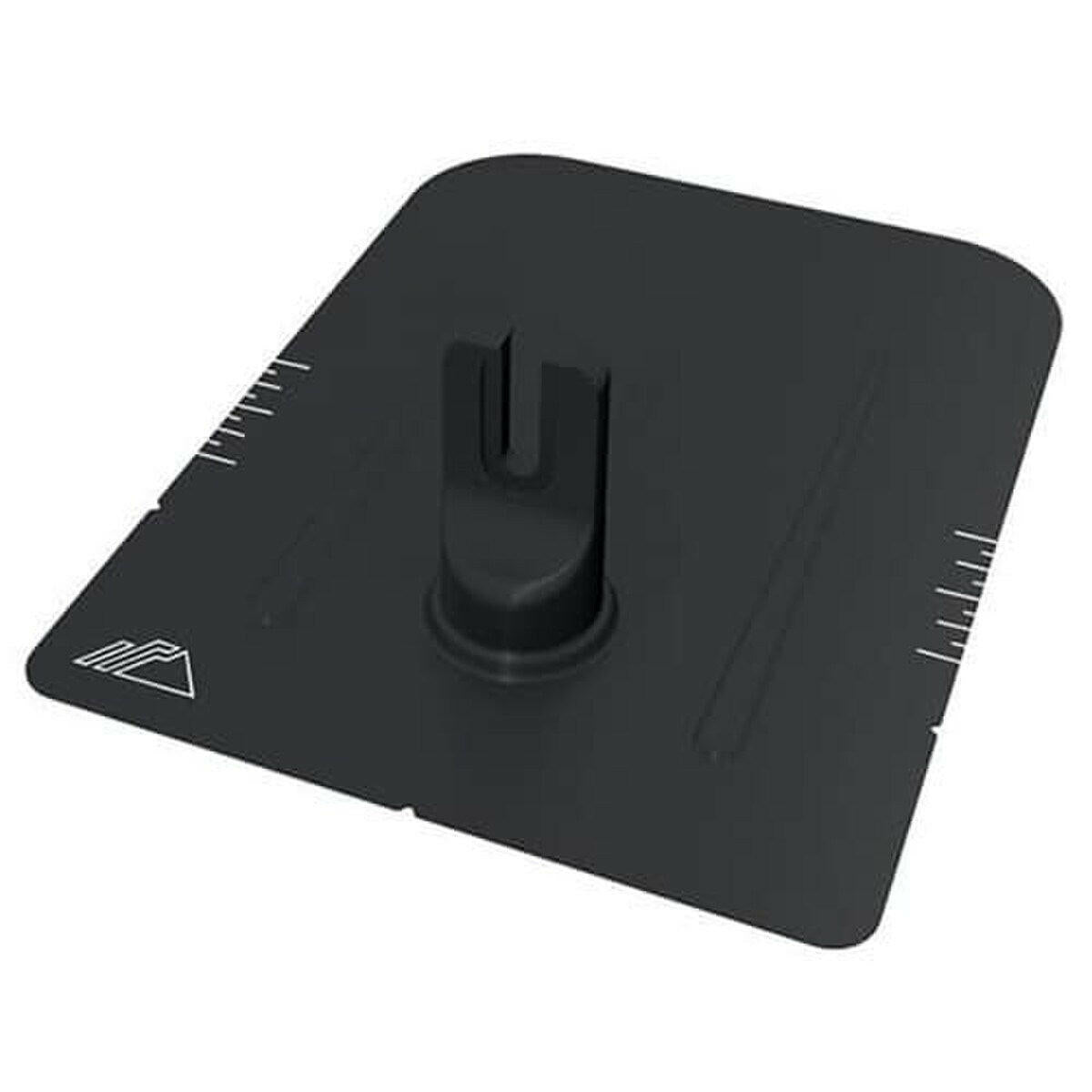

Ironridge FlashFoot2 Series Black Roof Attachment

Comprehensive Overview of Ironridge FlashFoot2 Roof Attachment

The IronRidge FlashFoot2 is a solar mounting system for composition shingle roofs that removes the need for separate standoffs, flashings, and L-feet. To securely connect IronRidge XR Rails to roof structures while also protecting against water penetration and weather damage, FlashFoot integrates a variety of structural and waterproofing features. The FlashFoot2 is the first solar attachment to pass the wind-driven rain test since it has three layers of water protection. The flashing has a 9 in x 12 in profile that eliminates roofing nail interference. Alignment markers in FlashFoot2 assist in easily aligning flashing with pilot holes.

Features

• FlashFoot2® raises the bar in solar roof protection
• The unique water seal design is both elevated and encapsulated, delivering redundant layers of protection against water intrusion
• In addition, the twist-on Cap perfectly aligns the rail attachment with the lag bolt to maximize mechanical strength
• Comes with flashing, lag bolt, and Cap


Specifications

• Series: FlashFoot2
• Finish: Black
• Dimensions: 9 in x 12 in
• Includes: 5/16 in x 4.75 in SS Lag Bolt & EPDM Washer


cut sheet

manual

Durability and Weather Resistance

The Ironridge FlashFoot2 offers exceptional durability designed to withstand harsh weather conditions. Its black powder-coated finish not only provides an aesthetically pleasing look, but it also enhances corrosion resistance, making it ideal for long-term roof installations. This feature ensures that your solar mounts maintain structural integrity even under intense sun, rain, or snow exposure, giving you peace of mind with a robust and reliable attachment solution.

Universal Compatibility and Installation Ease

One of the standout features of the Ironridge FlashFoot2 is its universal compatibility with various rail systems and roofing materials. The design allows for easy installation with minimal tools, reducing labor time and expense. Contractors and DIY installers appreciate the adjustable base, which fits a wide range of roof types such as asphalt shingles, tile, and metal roofs. This versatility makes it a top choice for diverse solar projects.

Enhanced Structural Strength and Safety

Engineered for maximum structural integrity, the Ironridge FlashFoot2 provides a secure connection between the roof and solar mounting rails. Its unique design distributes load evenly, contributing to a safer installation capable of handling dynamic forces like wind uplift and snow loads. This ensures that your solar system remains firmly anchored, maximizing safety and performance throughout its lifecycle.
