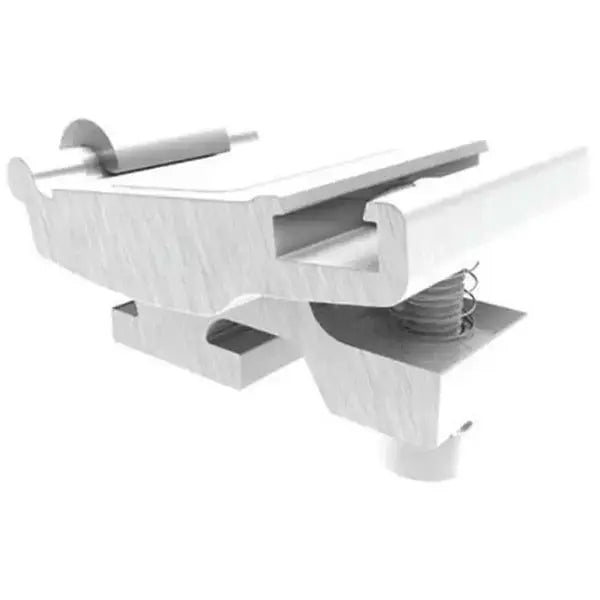

IronRidge Eclipse (XR Hidden End Clamp) Clear - ECL-01-A1

IronRidge XR hidden end clamp: Reliable and Sleek Solar Mounting Solution

Eclipse is a hidden end clamp for XR Rails® that stays hidden, out of sight, while securing solar modules flush to rail ends. This creates a clean and sleek appearance that homeowners love. Eclipse works with nearly all solar modules and installs with a simple 7/16" socket.

Key Features

• Hidden end clamp — no protruding rails around the perimeter
• Compatible with XR10, XR100, and XR1000 rails
• Clear anodized finish for corrosion protection
• Pre-assembled — no loose parts
• Can be installed on either side of rail
• Works with nearly all solar modules
• Simple 7/16" socket installation
• UL 2703 Listed

Specifications

• SKU / MPN: ECL-01-A1
• Finish: Clear Anodized
• Material: Aluminum & Stainless Steel
• Weight: 0.20 lbs (each)
• Compatible Rails: IronRidge XR10, XR100, XR1000
• Installation Tool: 7/16" socket

Warranty

25-Year Manufacturer Warranty. IronRidge products are UL 2703 listed, ensuring strong electrical and mechanical connections over an extended period in extreme outdoor environments.

Documentation

• Eclipse Tech Brief (PDF)
• Eclipse Cut Sheet (PDF)
• Installation Manual (PDF)

Durability and Material Excellence

The IronRidge XR hidden end clamp is engineered from premium materials designed to withstand harsh outdoor environments. Its clear finish not only provides a sleek, low-profile look but also offers excellent corrosion resistance. This makes it a reliable choice for long-term solar panel mounting needs. The clamp securely grips the solar panel edge, preventing movement and ensuring stability throughout various weather conditions. Its robust construction ensures that your solar installation remains intact and safe, providing peace of mind for users seeking a durable mounting solution.

Easy Installation and Compatibility

One of the standout features of the IronRidge XR hidden end clamp is its ease of installation. Designed to integrate seamlessly with IronRidge solar racking systems, it allows for a clean, professional finish without visible hardware on the panel edges. This clamp accommodates standard panel frame sizes and fits perfectly within the XR rails, simplifying the mounting process. Installers benefit from quick setup times and fewer tools required, reducing labor costs while maintaining a high standard of work quality alongside the unobtrusive design the clamp offers.

Enhanced Aesthetics and Security

This clear clamp not only contributes to the secure mounting of your solar panels but also enhances the overall aesthetics of your solar array. The hidden end clamp design minimizes visual clutter, creating a streamlined appearance that is less noticeable than traditional clamps. Beyond looks, the IronRidge XR hidden end clamp ensures maximum panel hold strength, reducing the risk of panel shifting or damage. Ideal for residential and commercial projects where appearance and durability matter equally, it provides a trustworthy solution for maintaining both form and function.
