IronRidge Contour Corner Cap, Outer (Priced as each)

IronRidge Contour Corner Cap: Durable Outer Corner Protection for Solar Installations

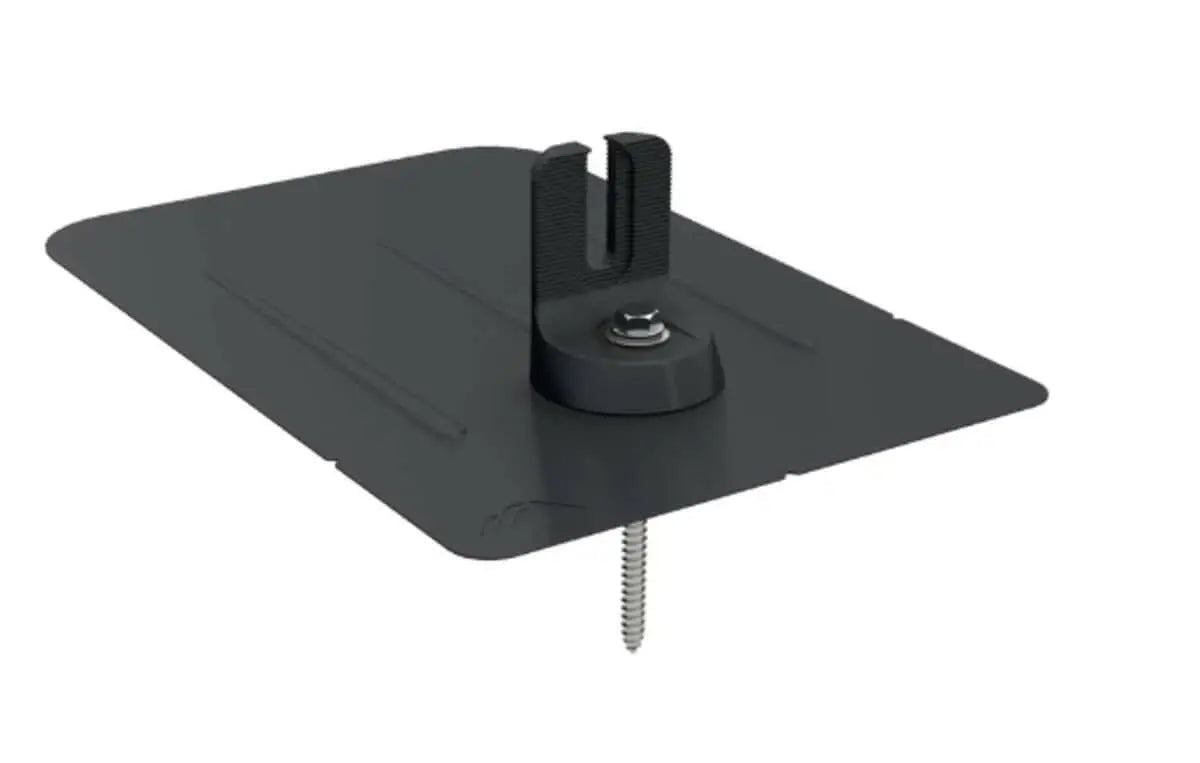

IronRidge set out to design a flashing that checked all the boxes: fully waterproof, fast and easy to install correctly, economical, and strong enough to handle every environmental condition. FlashVue does it all. The optimized flashing design features a large viewport, for easy alignment with the pilot hole. And the GripCap and GripCap+ sit snugly in place, so the lag can be driven single-handedly.

Features

• Highlights - 8 x 12 in flashing footprint fits between and avoids most roofing nails
• 0.75 in opening in flashing enables easy alignment with the pilot hole
• Raised viewport platform diverts water and supports GripCap
• Unlike L-Feet, it stays in place so only one hand is needed to fasten
• GripCap installs in NS or EW orientation, or whatever is needed
• Bolt and EPDM washer combo uses same socket size as rest of system


Specifications

• Size: 8 x 12 in
• Color: Black
• Suitable For Use With: Roofing Nails
• Includes: GripCap, 5/16 x 4.25 in SS Lag Bolt with EPDM Washer
• Standards: UL Listed
• Warranty: 25 Years Limited


Documents

• Specification Sheet
• Cut Sheet

• Installation Manual

• Warranty Information

Product Overview of IronRidge Contour Corner Cap

The IronRidge Contour Corner Cap is an essential accessory designed specifically for securing outer corners in solar panel mounting systems. This component offers durability and precision shaping to ensure that the corners of your solar framing are protected and neatly finished. Manufactured with high-quality materials, the cap fits seamlessly into the IronRidge rail systems, contributing to the overall structural integrity of the solar installation. Priced individually, it allows for flexible ordering depending on project needs, making it a practical choice for both small and large-scale solar setups.

Key Features and Benefits

This IronRidge Contour Corner Cap features a contoured design that matches the profiles of IronRidge rails, ensuring a snug and secure fit. Its sturdy construction adds a layer of protection against weather-related wear and damage at the corners of solar arrays. Easy to install, this cap minimizes installation time while preventing dirt, moisture, and debris from entering the rail ends. The product's compatibility with various IronRidge mounting systems enhances its versatility, making it an indispensable piece for installers seeking reliable and high-performing solar racking solutions.

Installation and Application

Installing the IronRidge Contour Corner Cap is straightforward, requiring no specialized tools or extensive labor. It simply snaps or screws onto the outer corners of the IronRidge rail system, providing an immediate improvement in aesthetics and protection. Its design ensures that it remains securely in place even under harsh environmental conditions such as heavy wind or precipitation. Ideal for both residential and commercial solar projects, this corner cap helps maintain the integrity of solar arrays, ensuring long-lasting performance and reduced maintenance over time.
