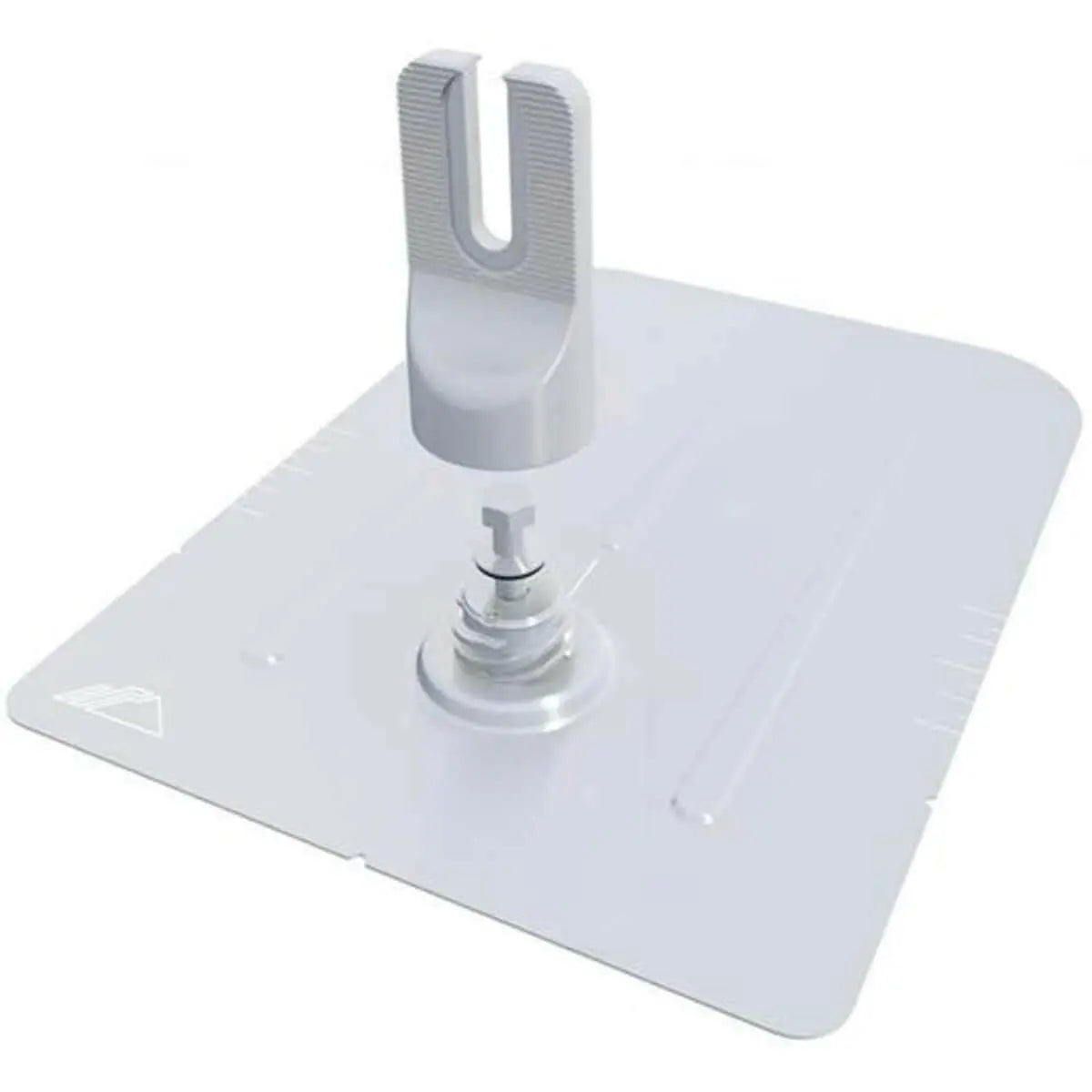

IronRidge 8 x 12 in Mill Flash Foot

Reliable and Durable IronRidge Mill Flash Foot for Solar Installations

IronRidge FlashFoot2 raises the bar in solar roof protection. The unique water seal design is both elevated and encapsulated, delivering redundant layers of protection against water intrusion. Available in mill and black finishes. In addition, the twist-on Cap perfectly aligns the rail attachment with the lag bolt to maximize mechanical strength. The flashing has a 9" x 12" profile, which minimizes interference with roofing nails. Comes with flashing, lag bolt, and Cap. Passed the TAS-100 Wind-Driven Rain Test.

Features

• Three-tier water sealing - an elevated platform diverts water away, while a stack of rugged components raises the seal an entire inch. the seal is then fully-encased by the cap
• Twist-on cap - the unique cap design encapsulates the lag bolt and locks into place with a simple twist. change the orientation of the slotted cap by rotating it 90 degrees before twisting on
• Single-socket size - a custom-design lag bolt allows you to install flashfoot2 with the same 7/16" socket size used on other flush mount system components
• Concentric loading - Flashfoot2 is the only product to align the rail and lag bolt. this concentric loading design results in a stronger attachment for the system


Specifications

• Size: 8 x 12 in
• Material: Aluminum
• Finish: Mill
• Includes: 5/16 x 4-3/4 in Bolt Lag, Flashing Assembly, Cap Assembly, EPDM Washer
• Standards: CE Certified, ETL US, ETL EU, IEC Certified
• Warranty: 25 Years Limited


Documents

• Technical Drawing

High-Quality Construction and Materials

The IronRidge Mill Flash Foot is engineered with premium-grade aluminum, ensuring durability and resistance against corrosion. Its 8 x 12 inch size offers an optimal footprint for secure attachment to roof surfaces, providing a stable base for solar mounts while minimizing damage to roofing material. This robust design helps extend the lifespan of your solar installation by safeguarding against harsh weather conditions such as wind, rain, and snow. The product meets strict industry standards, making the IronRidge Mill Flash Foot a trusted choice for both residential and commercial solar mounting systems.

Easy Installation Process

Installing the IronRidge Mill Flash Foot is straightforward, designed to fit seamlessly with IronRidge solar mounting components. Its mill flash design integrates easily with residential roofs, providing a watertight seal that prevents leaks. The pre-punched holes facilitate quick alignment and secure fastening, reducing installation time and labor costs. Moreover, the compatibility with standard lag bolts and flashing boots ensures a flexible application for various roofing types. This user-friendly installation helps professionals and DIY installers achieve a secure solar panel setup with confidence.

Versatile Application and Compatibility

The IronRidge Mill Flash Foot 8x12 in supports multiple solar panel mounting configurations and is compatible with most IronRidge rail-based systems. It is commonly used in roof-mounted solar arrays where weatherproofing and durability are critical. Thanks to its universal design, it can be employed on different roofing materials including asphalt shingles, tile, and metal. This flexibility allows installers to use the same reliable product across diverse project requirements, ensuring high performance without compromising roof integrity.
