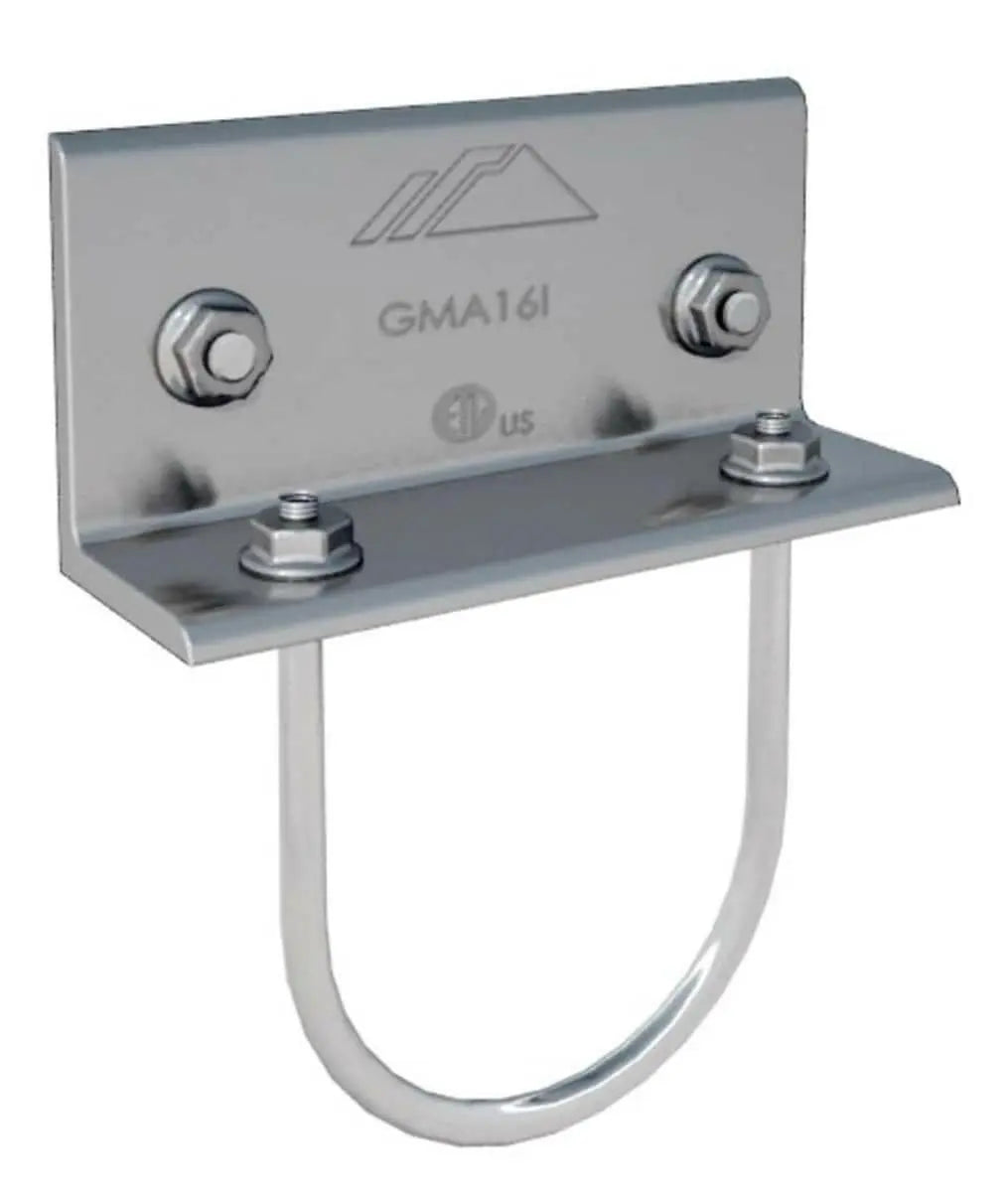

IronRidge 3 in Ground Mount Bonding Rail Connector

Comprehensive Overview of IronRidge Bonding Rail Connector

Our Bonded Rail Connectors attach and bond horizontal cross pipes to XR100 or XR1000 Rails. Each rail requires two connectors to create a secure and bonded attachment. Available for both 2" and 3" sizes, these Rail Connectors are manufactured using extruded 6000 series aluminum.

Features

• Safety - All components evaluated for superior structural performance. UL 2703 system eliminates separate module grounding components
• Efficiency - Pre-stamped engineering letters available in most states. Online software makes it simple to create, share, and price projects
• User Friendly - Lightweight and compatible with industry-standard attachments


Specifications

• Type: Ground Mount
• Size: 3 in
• Mounting Hole Distance: 3.9 in
• Plate Thickness: 0.19 in
• Material: Aluminum
• Finish: Mill
• Suitable For Use With: The IronRidge® Ground Mount System
• Standards: ETLus Listed, UL 2703
• Warranty: 25 Years


Documents

• Catalog
• Technical Drawing
• Instruction/Installation Manual

Durable and Reliable Design for Ground Mount Systems

The IronRidge bonding rail connector is specially designed to provide a secure and electrically reliable connection within ground mount solar panel systems. It ensures consistent bonding between rails, essential for grounding and system safety. Made from robust, corrosion-resistant materials, this connector withstands harsh outdoor conditions, extending the life and performance of your solar array. By maintaining proper electrical continuity, it supports regulatory compliance and reduces the risk of electrical faults in the solar installation.

Easy Installation and Compatibility

This IronRidge bonding rail connector is crafted for straightforward installation with IronRidge rails and other compatible mounting hardware. Its 3-inch length fits snugly between rails, enabling quick and precise connections with minimal tools. The connector’s design simplifies the bonding process by eliminating the need for complex wiring or separate bonding straps, ultimately saving installation time and reducing labor costs. It is compatible with a broad range of IronRidge ground mounts, making it a versatile choice for installers.

Enhancing System Safety and Performance

Incorporating the IronRidge bonding rail connector into your ground mount solar system enhances both safety and efficiency. The connector ensures that all metal parts are properly grounded, preventing dangerous electrical shocks and system malfunctions. This dedicated bonding solution improves thermal performance by maintaining electrical continuity, which can positively impact overall system longevity. It aligns with industry standards and best practices, giving installers and property owners peace of mind about the integrity and safety of their solar energy systems.
