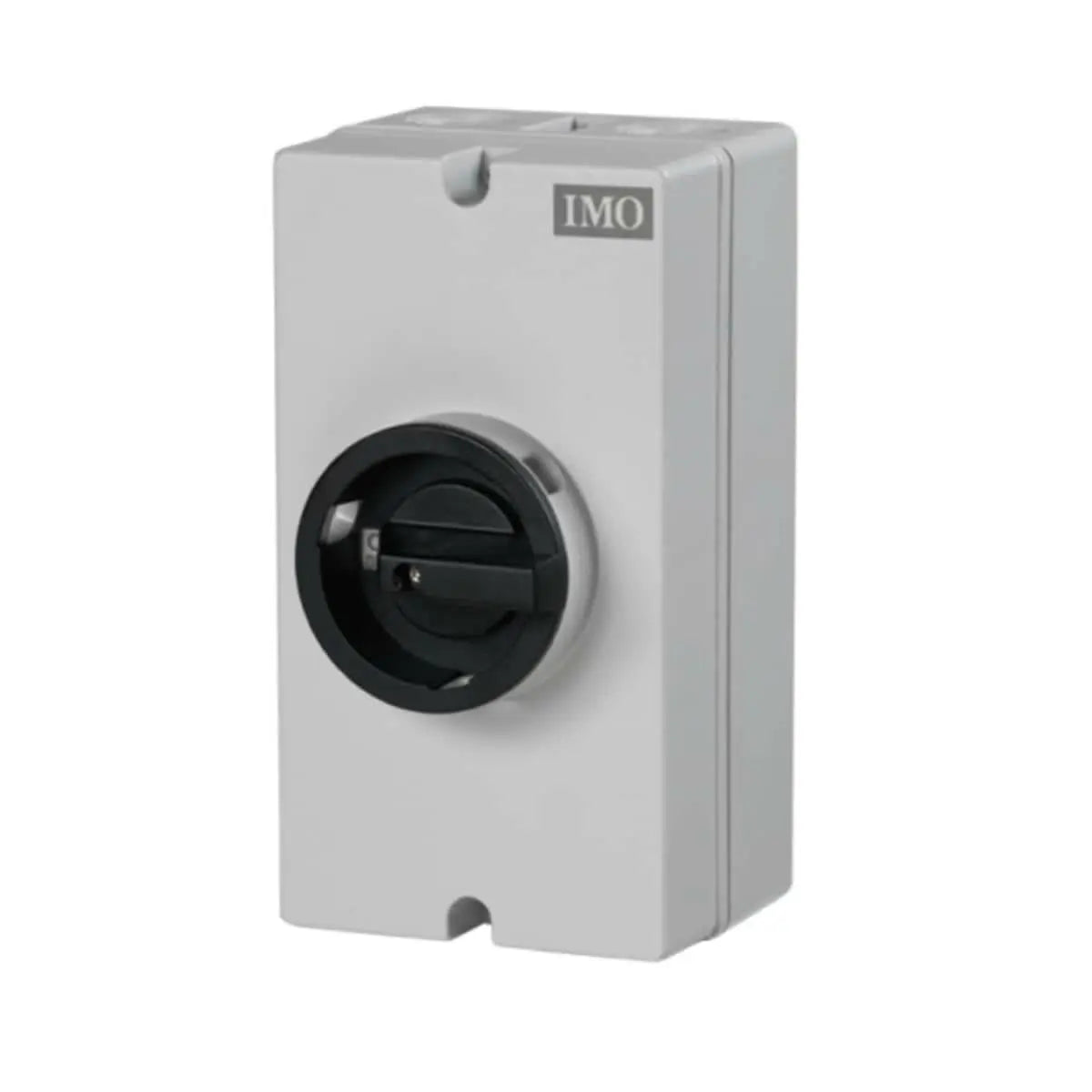

IMO Enclosed DC Switch IP66, 32A 600VDC (SKU Part Number SI32-PEL64R-2)

Since its launch, the SI range of TRUE DC isolators has set the benchmark safety standard for disconnection and isolation of the DC panel load in solar applications world-wide. Prior to the introduction of the SI series, AC modified isolators in multi-pole linked form were commonly used with all the performance and safety issues that such devices presented. The SI TRUE DC range was specifically developed to meet the needs of the solar industry with full operator independent switching mechanism, a guaranteed 5ms maximum arc suppression time and long-life knife edge contacts. Arc chambers built-in to the unit keep the device cool under repeated operation and the full range of mounting options provide a solution for almost every application.

Specifications

• Handle Type: Lockable Rotary
• NEMA Rating: NEMA 4X
• Mounting Type: Enclosed
• Operating Temperature: -40 to 45°C
• Enclosure Rating: IP67
• Current Rating: 32 A
• Lockable: Yes
• Number of Strings: 1
• Number of Poles: 2
• Cable Size: 12-10 AWG (4-16 mm²)


Documents

• Selection Guide
