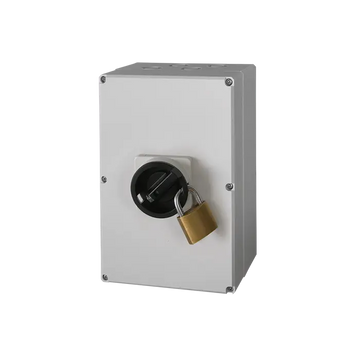

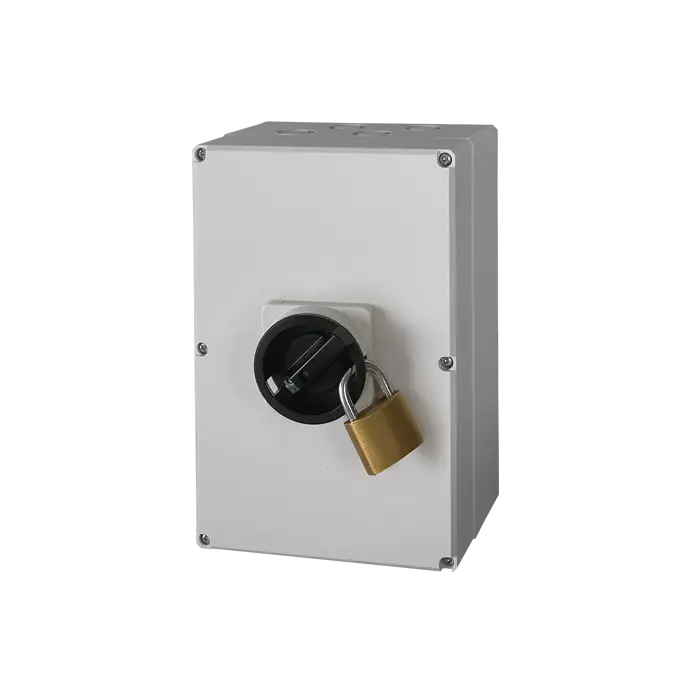

IMO DC Disconnect Switch Isolator Panel Mount 4-Pole 2 String 55A IP66 - SI55-PM64R-4

Features and Benefits of the DC Disconnect Switch Panel Mount

SKU: SI55-PM64R-4

The IMO SI55-PM64R-4 is a UL508 listed DC Disconnect Switch Isolator with panel mount configuration. Designed for solar PV systems requiring reliable DC isolation.

Features

• 4-Pole, 2 String configuration
• Lockable Rotary Handle for security
• 64 x 64mm Escutcheon Plate
• IP66 rated for outdoor use
• UL508 Listed
• Panel Mount design

Specifications

• Current Rating: 55A
• Voltage Rating: 350/500/600 VDC
• Poles: 4
• Strings: 2
• Protection Rating: IP66
• Mounting: Panel Mount
• Handle: Lockable Rotary
• Escutcheon Plate: 64 x 64mm

Robust Design for Reliable Electrical Isolation

The IMO DC disconnect switch panel mount is engineered for dependable electrical isolation in demanding environments. This 4-pole, 2-string isolator supports up to 55 amps, making it ideal for medium-power applications like solar panel arrays and industrial DC circuits. Its panel mount design ensures easy integration into electrical enclosures while maintaining safety standards. Rated at IP66, it guarantees protection against dust and heavy water jets, ensuring long-lasting durability and uninterrupted performance in harsh conditions.

Efficient Safety and Operational Control

Safety is paramount with the IMO SI55-PM64R-4 disconnect switch. It offers clear and secure cutoff capabilities to isolate DC circuits during maintenance or emergency situations. The switch’s 4-pole configuration allows simultaneous disconnection of multiple strings, enhancing safety and operational control. Its ergonomic handle and panel mount installation provide users with convenient access and reliable performance. This switch complies with international electrical standards, making it a trusted choice for professionals.

Easy Installation and Maintenance

Designed for seamless incorporation into existing setups, the DC disconnect switch panel mount simplifies installation and maintenance. The compact form factor and clear labeling reduce wiring errors and speed up the setup process. Its durable construction minimizes wear and reduces downtime caused by replacements or repairs. This model is well-suited for both new installations and retrofit projects, providing a cost-effective and efficient solution for managing DC power systems safely.
