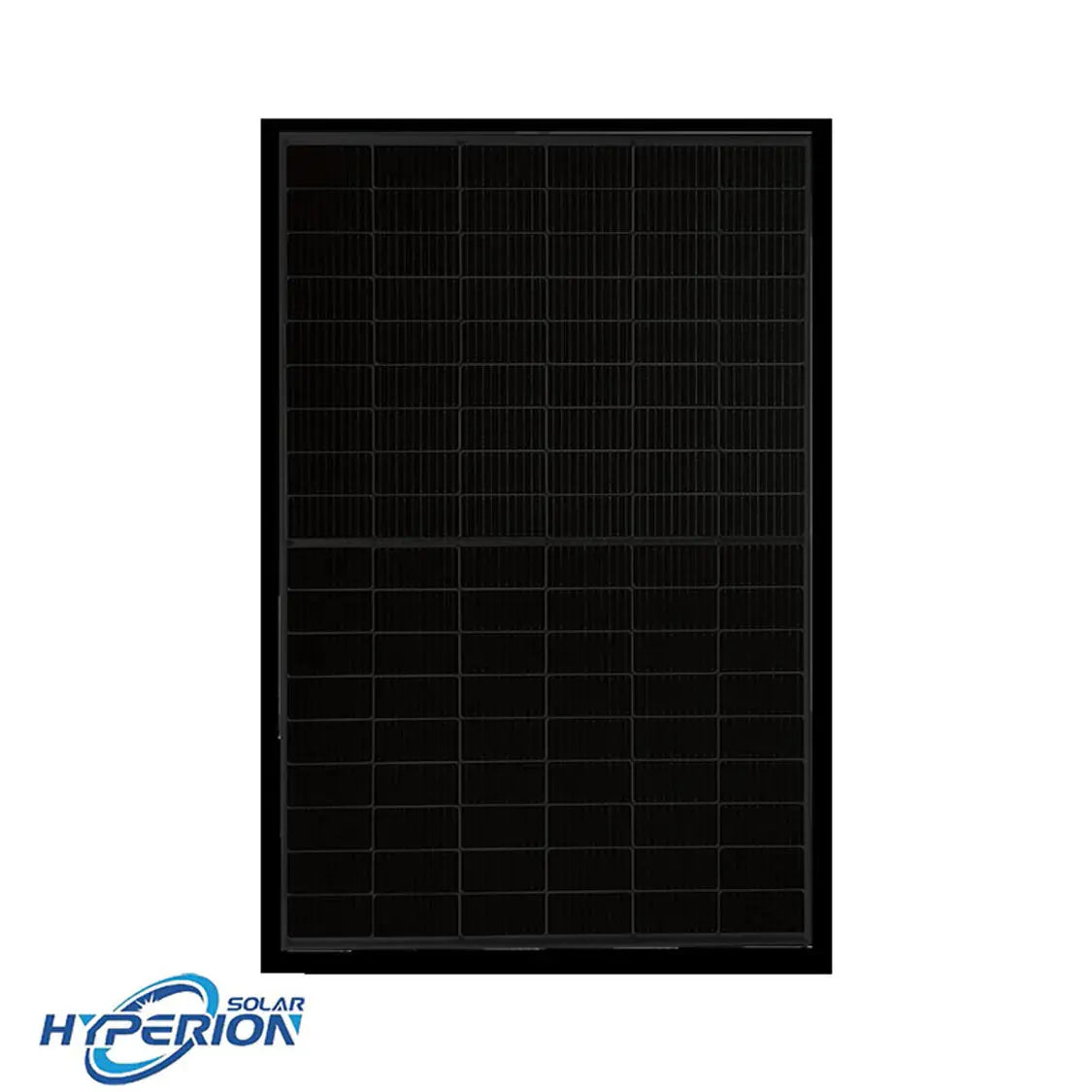

Hyperion (Runergy) 590W Solar Panel 144 Cell N-Type Bifacial Dual Glass HY-DH144N8-590
Hyperion (Runergy) 590W N-Type Bifacial Dual Glass Solar Panel – HY-DH144N8-590
The HY-DH144N8-590 is a high-performance 590W N-Type bifacial dual glass solar panel from Hyperion Solar (Runergy). Featuring 144 half-cut monocrystalline cells and advanced N-Type technology, this panel delivers an impressive 22.8% module efficiency and outstanding long-term reliability.
Key Features
- 590W rated power output
- 144 half-cut N-Type monocrystalline cells (182mm)
- 22.8% module efficiency
- Bifacial design – absorbs light from both sides (up to 30% more energy)
- Dual glass (Glass-Glass) construction for superior durability
- 1500V DC maximum system voltage
- RY01 or similar connectors
- IP68-rated junction box with 3 bypass diodes
- Silver anodized aluminum frame
- 2.0mm AR coated heat-strengthened front glass
- 2.0mm heat-strengthened back glass
- 12-year product warranty / 30-year linear power warranty
Performance Highlights
- Higher Efficiency: N-Type technology and potent antireflective coating result in 22.8% module efficiency – significantly higher than average.
- Excellent Temperature Performance: Temperature coefficient of Pmax: -0.29%/°C – stays efficient even in hot weather.
- Low Degradation: First-year degradation <1%, annual degradation <0.4%. Retains at least 87.4% output after 30 years.
- Outstanding Anti-degradation: Unsusceptible to LID and LeTID due to N-Type cell characteristics.
- Strong Frame: Withstands snow load up to 5400 Pa (front) and wind load up to 2400 Pa (back).
Electrical Specifications (STC)
| Parameter | Value |
|---|---|
| Rated Power Output (Pmax) | 590 W |
| Power Tolerance | 0 ~ +5 W |
| Optimum Operating Voltage (Vmp) | 44.43 V |
| Optimum Operating Current (Imp) | 13.28 A |
| Open Circuit Voltage (Voc) | 52.37 V |
| Short Circuit Current (Isc) | 13.89 A |
| Module Efficiency | 22.8% |
| Max. System Voltage | DC 1500V (IEC/UL) |
| Max. Fuse Rating | 30A |
| Bifaciality | 80 ± 5% |
Mechanical Specifications
| Parameter | Value |
|---|---|
| Cell Type | Mono N-Type 182mm |
| Number of Cells | 144 (6 × 24) |
| Dimensions (L×W×H) | 2278 × 1134 × 30mm (89.69 × 44.65 × 1.18 in) |
| Weight | 32 kg (70.55 lbs) |
| Frame Color | Silver Anodized Aluminum |
| Front Cover | 2.0mm AR coated heat-strengthened glass |
| Back Cover | 2.0mm heat-strengthened glass |
| Junction Box | IP68 rated, 3 bypass diodes |
| Connector | RY01 or similar |
| Output Cable | 4mm² (IEC), 12 AWG (UL) |
Temperature Characteristics
| Parameter | Value |
|---|---|
| Operating Temperature | -40°C ~ +85°C (-40°F ~ +185°F) |
| Nominal Module Operating Temperature | 42 ± 2°C |
| Temperature Coefficient of Pmax | -0.29%/°C |
| Temperature Coefficient of Voc | -0.25%/°C |
| Temperature Coefficient of Isc | +0.045%/°C |
Certifications
IEC61215 / IEC61730 / UL61730 / IEC61701 / IEC62716 / IEC60068 / ISO9001 / ISO14001 / ISO45001
Warranty
- 12-year Product Warranty
- 30-year Linear Power Warranty
- 1st year degradation <1%
- Annual degradation <0.4% (years 2–30)
- Minimum 87.4% output after 30 years
Applications
Residential, Commercial, Grid-Tie, Off-Grid, Boats, RV, Buildings
Datasheet
