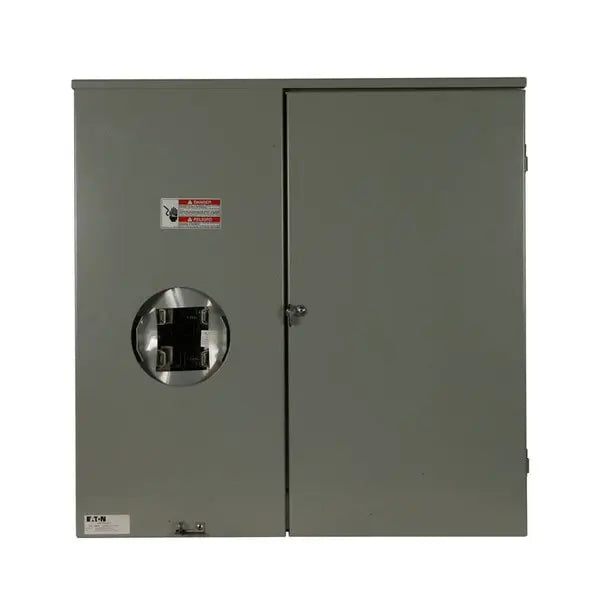

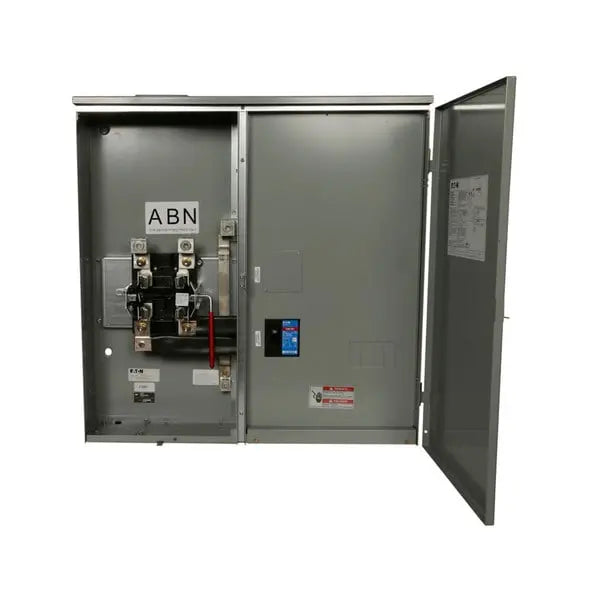

HPC4046SHLG - Eaton Cutler-Hammer Series Housing Panel

The Eaton HP40SHL is a robust housing panel designed for residential and light commercial applications, offering a comprehensive solution for electrical distribution. This panel integrates a 400A main breaker and provisions for secondary breakers, ensuring reliable power management.

Key Features:

• Type: Housing Panel
• Amperage Rating: 400A
• Voltage Rating: 120/240V
• Main Breaker: CSR2200
• Secondary Breaker: BRH/BWH (not included)
• Bus Material: Aluminum
• Bypass: Lever
• Enclosure Rating: NEMA 3R
• Feed Type: Underground
• Interrupt Rating: 22 kAIC
• Mounting Type: Surface
• Security: Ringless
• Number of Spaces: 40
• Number of Circuits: 40
• Socket: 1
• Lug Landings: For compression lugs (lugs not included)
• Dimensions: 30" W x 40.2" H x 6.5" D
• Weight: 120 lbs
• UPC: 782116060108

This panel is UL Listed and complies with EUSERC standards, making it suitable for various utility requirements.It features a lever bypass for secure operation and is designed for surface mounting with provisions for underground feed.The aluminum bus ensures durability and efficient conductivity.
