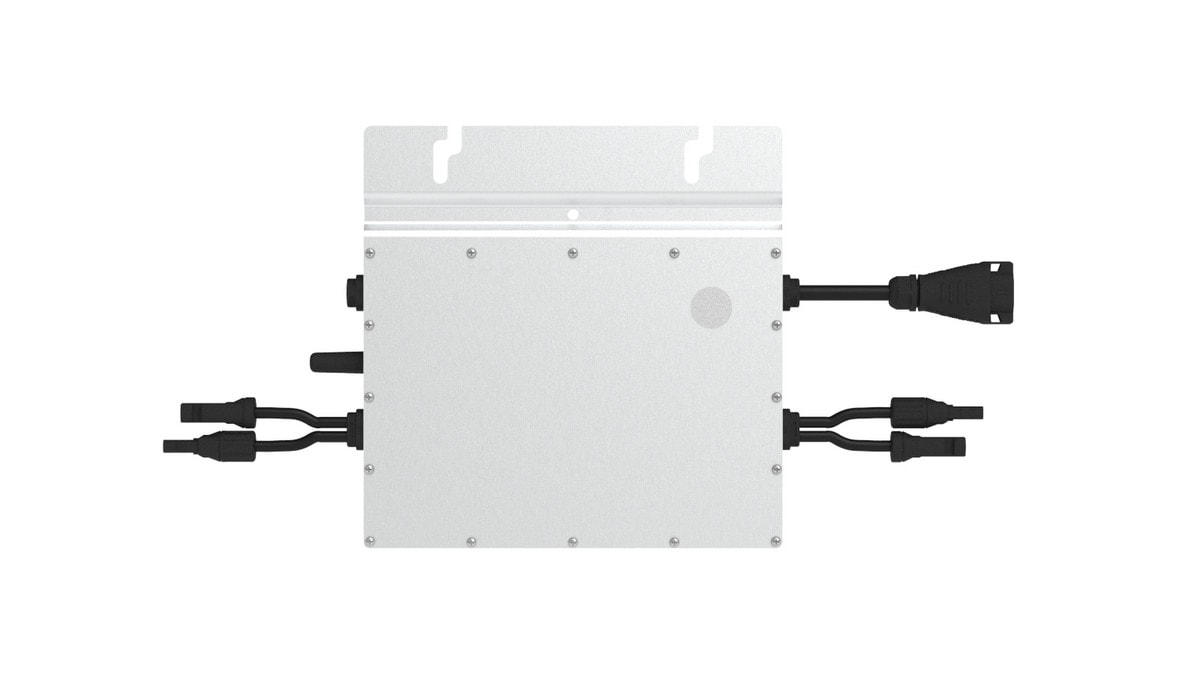

Hoymiles Power Electronics HM-600NT Series 600 VA Natural Convection Cooling Microinverter

Explore the Advanced Features of the Hoymiles HM-600NT Microinverter

Hoymiles 2-in-1 microinverter can connect up to 2 panels at once and maximize the PV production of your installation. With the maximum DC voltage of 60 V, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218.

Features

• Easy installation, just plug and play
• With reactive power control, compliant with CA Rule 21
• Compliant with U.S. NEC-2017&NEC-2020 690.12 rapid shutdown
• External antenna for stronger communication with DTU
• High reliability, NEMA 6 (IP67) enclosure, 6000 V surge protection

Specifications

• Series: HM-600NT
• Overall Length: 170 mm
• Overall Width: 250 mm
• Overall Depth: 28 mm
• Input Voltage: 60 V
• Power Rating: 600 VA
• Input Current: 11.5 A
• Amperage Rating: 2.46/2.84 A
• Efficiency: 99.8%
• Frequency Rating: 60/55-65 Hz
• Power Factor: 0.8
• Cooling Type: Natural Convection
• Temperature Rating: -40 to 65 deg F
• Output Voltage: 240/211-264, 208/183-229 V

Documents

• Specification Sheet

Innovative 600 VA Power Output

The Hoymiles HM-600NT microinverter delivers a robust 600 VA power capacity, designed to maximize energy conversion efficiency for residential and small commercial solar installations. Its advanced power rating ensures optimal performance, allowing solar panels to operate independently and contribute evenly to the grid. This microinverter adapts seamlessly with various solar modules, offering enhanced reliability and increased energy harvest. Its 600 VA output strikes a balance between efficiency and practicality, making it an excellent choice for users who require consistent and scalable solar power solutions.

Natural Convection Cooling for Enhanced Durability

One of the standout features of the Hoymiles HM-600NT microinverter is its natural convection cooling system. This passive cooling approach eliminates the need for fans, reducing noise, maintenance requirements, and potential failure points. By using convection, the microinverter maintains optimal operating temperatures even under high solar loads, ensuring greater longevity and consistent performance. The quiet and efficient cooling system makes the HM-600NT ideal for residential environments where low noise and reliability are crucial.

Smart Integration and Monitoring Capabilities

The Hoymiles HM-600NT microinverter supports sophisticated monitoring through compatible software platforms, allowing users to track energy production in real time. This intelligent integration enables quick diagnostics, performance optimization, and remote management, improving overall system reliability. Users can easily access detailed data to optimize their solar setups and troubleshoot potential issues early. Its smart features enhance user experience and provide valuable insights into system efficiency and energy savings, making this microinverter a forward-thinking choice for modern solar energy systems.
