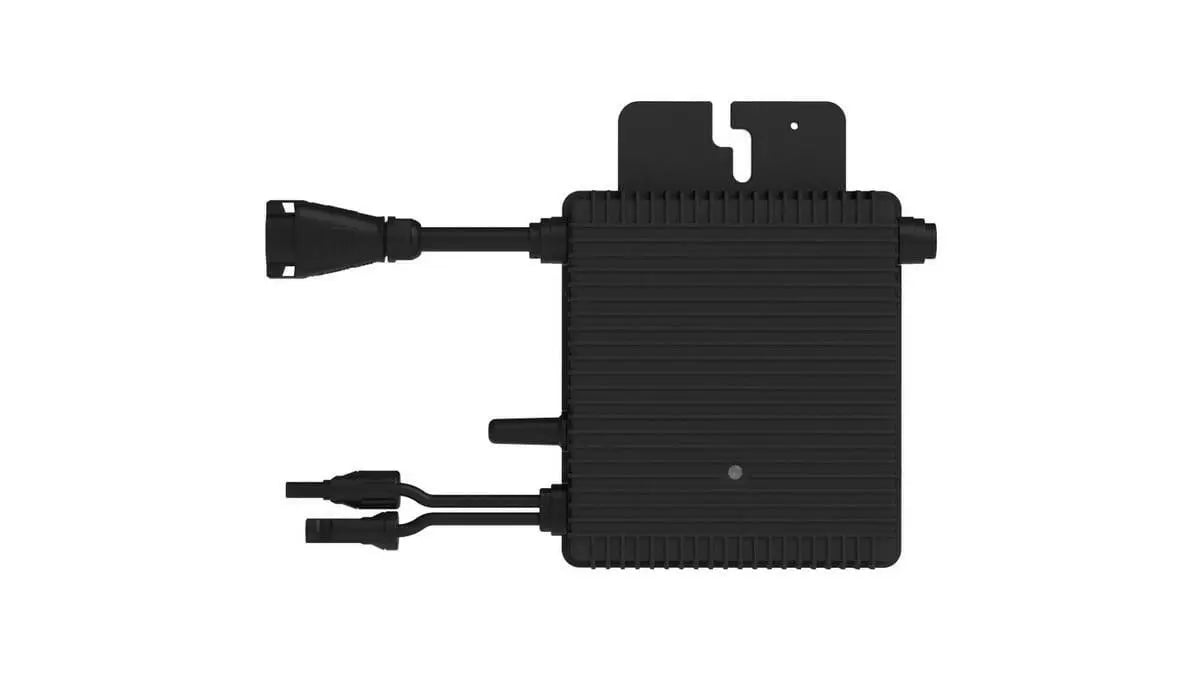

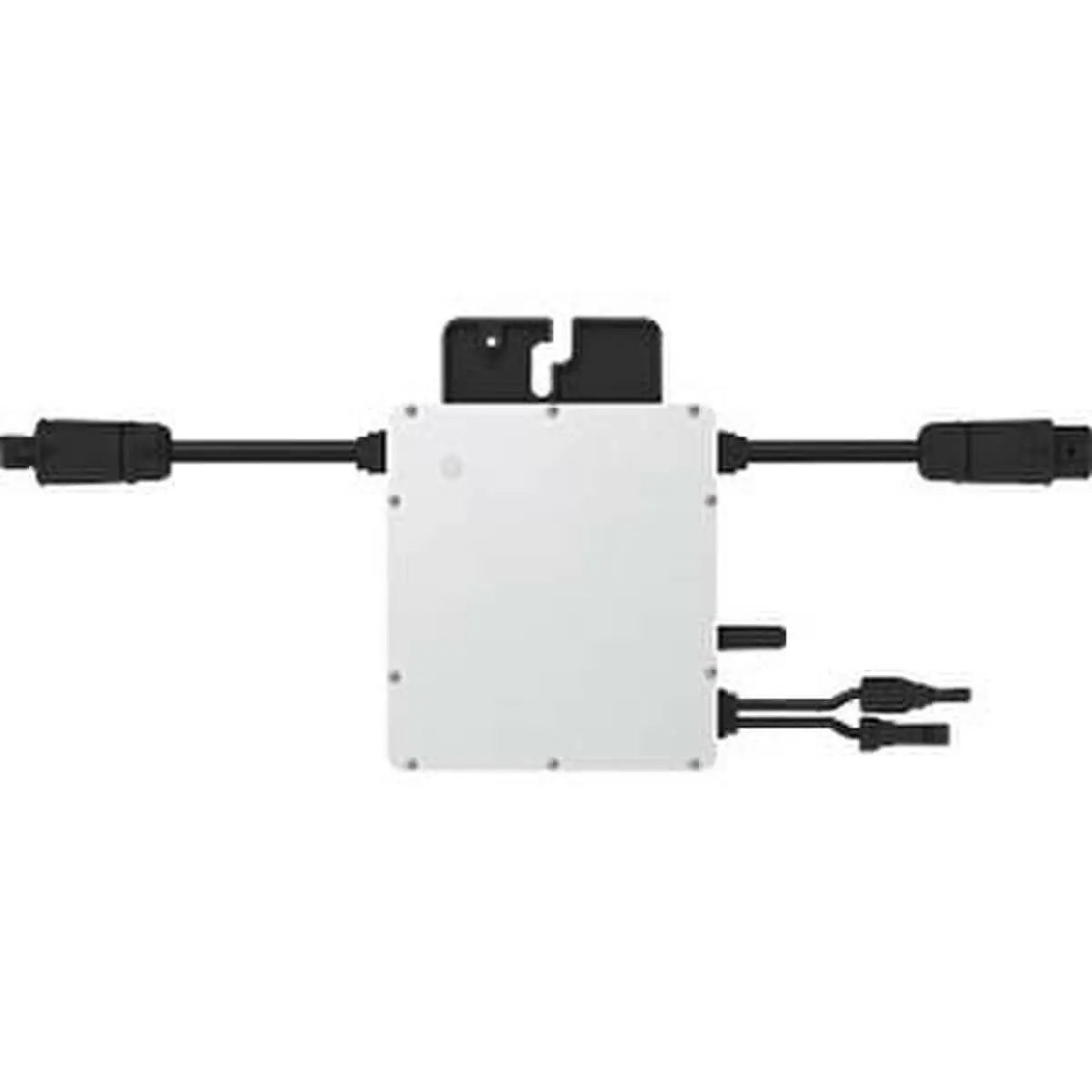

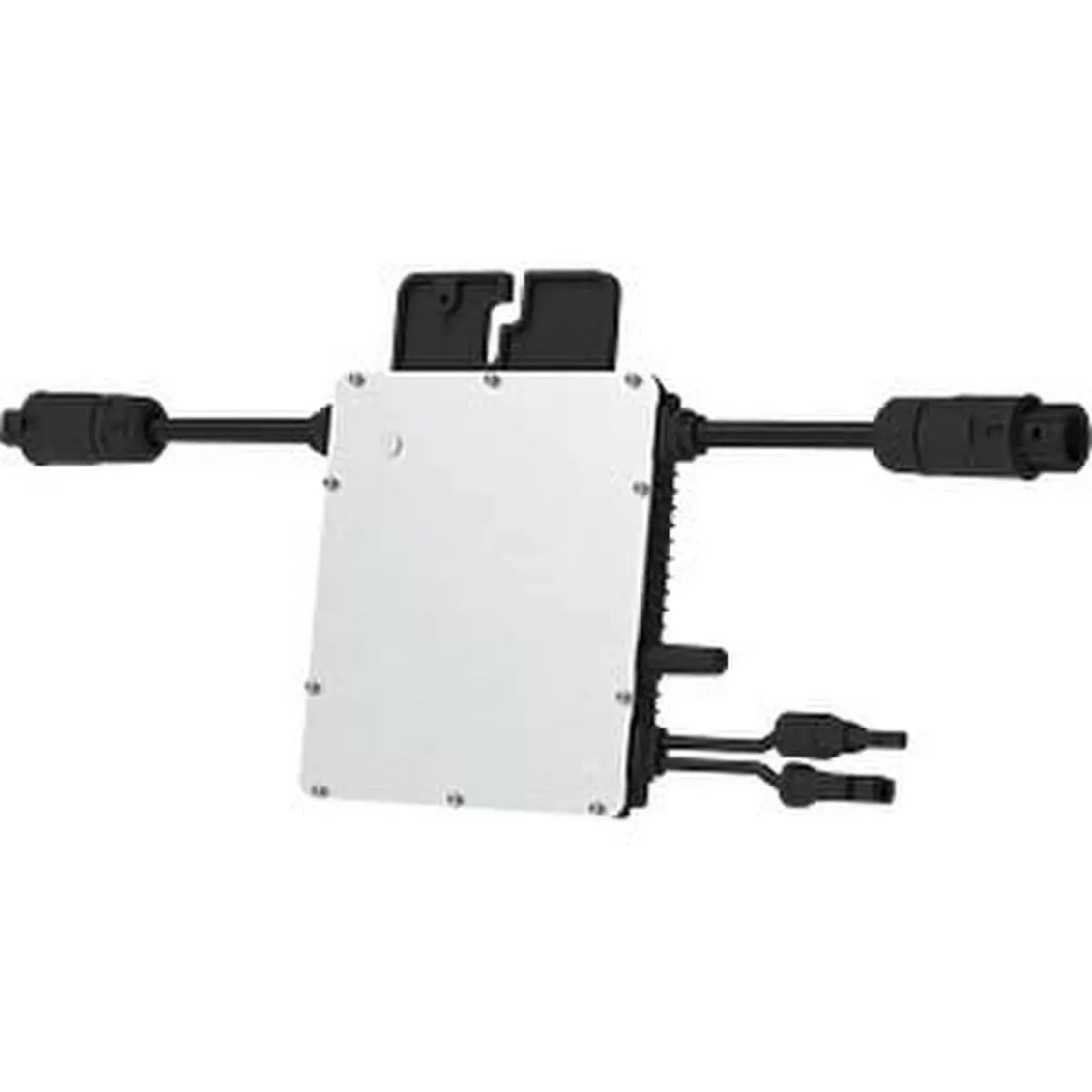

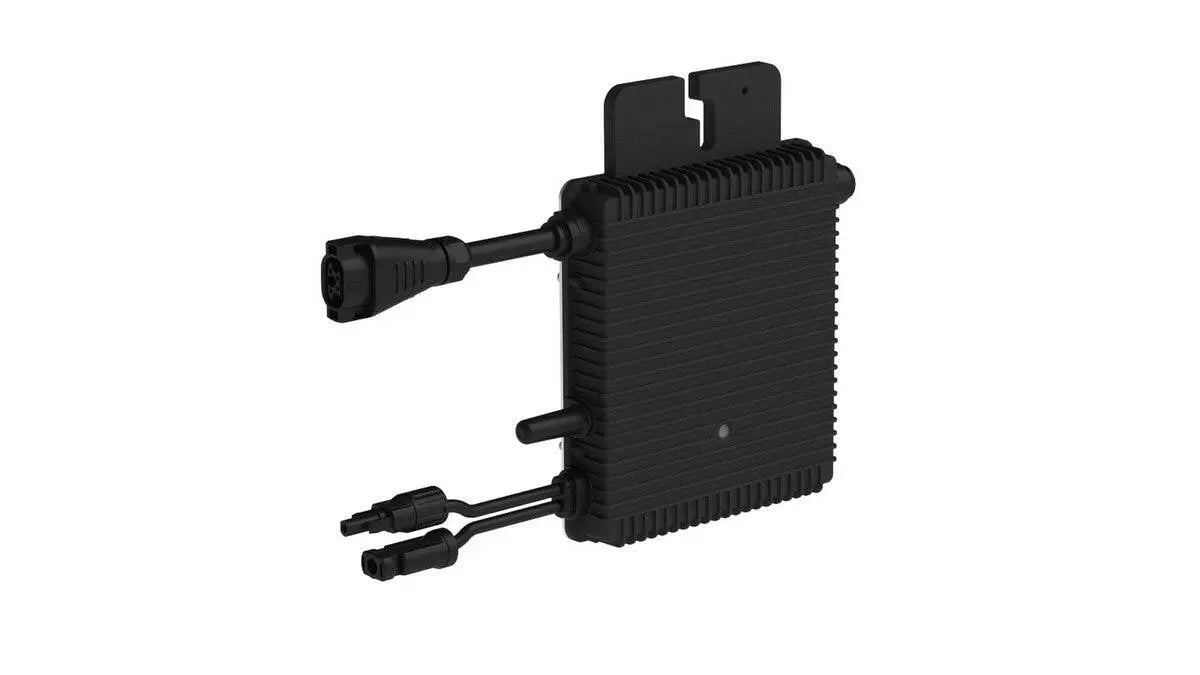

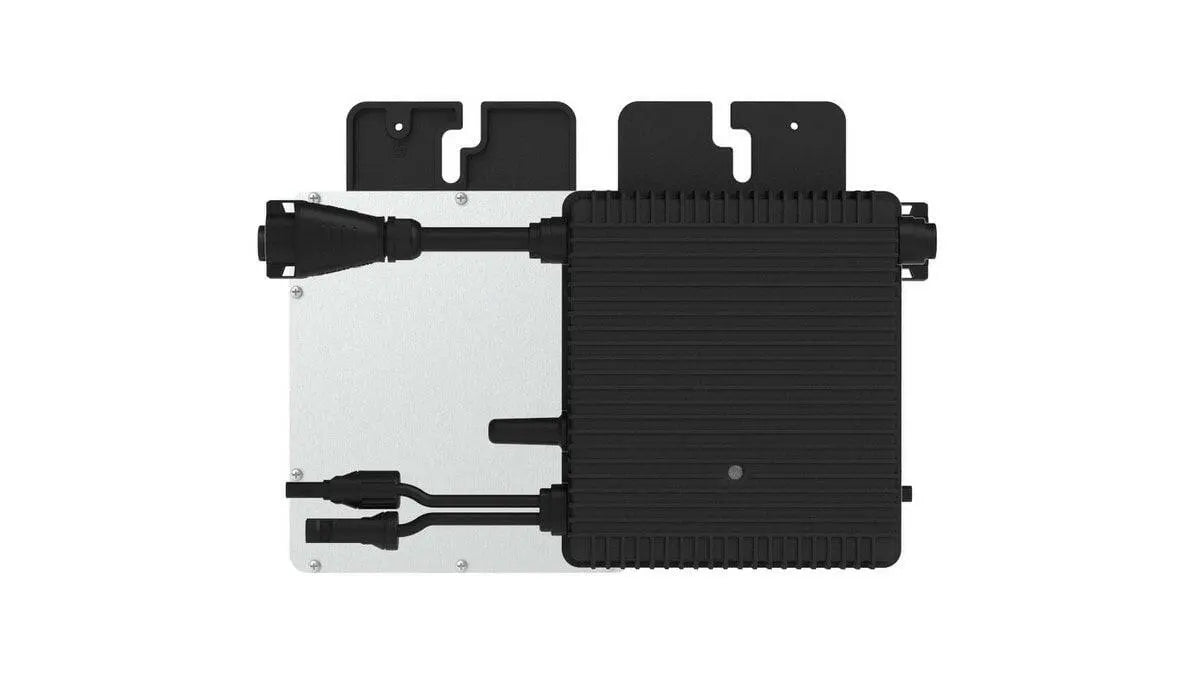

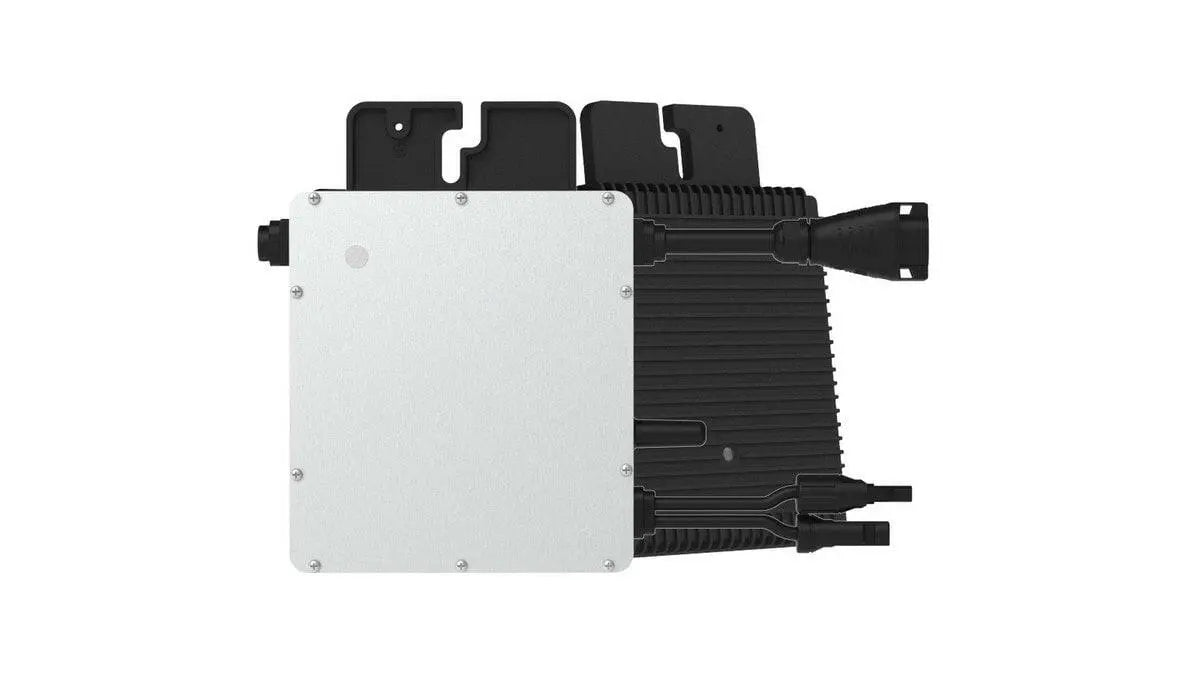

Hoymiles Power Electronics HM-300NT Series 300 VA Natural Convection Cooling Microinverter

Hoymiles 1-in-1 microinverter, which can be connected to one panel and used in various applications, is one of the most flexible solar solutions. With a maximum DC voltage of 60 V, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218.

Features

• Easy installation, just plug and play
• With reactive power control, compliant with CA Rule 21
• Compliant with U.S. NEC-2017&NEC-2020 690.12 rapid shutdown
• External antenna for stronger communication with DTU
• High reliability, NEMA 6 (IP67) enclosure, 6000 V surge protection


Specifications

• Series: HM-300NT
• Overall Length: 164 mm
• Overall Width: 182 mm
• Overall Depth: 29.5 mm
• Input Voltage: 60 V
• Power Rating: 300 VA
• Input Current: 11.5 A
• Amperage Rating: 1.23/1.42 A
• Efficiency: 99.8%
• Frequency Rating: 60/55-65 Hz
• Power Factor: 0.8
• Cooling Type: Natural Convection
• Temperature Rating: -40 to 65°F
• Output Voltage: 240/211-264 V, 208/183-229 V
