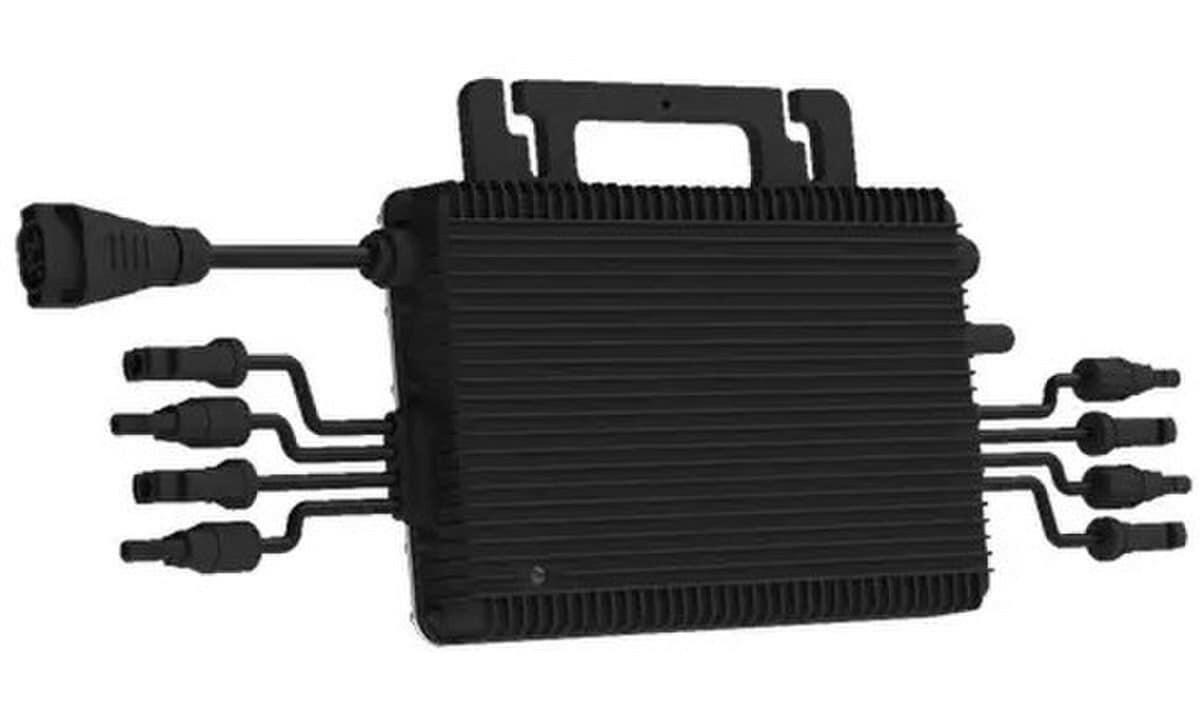

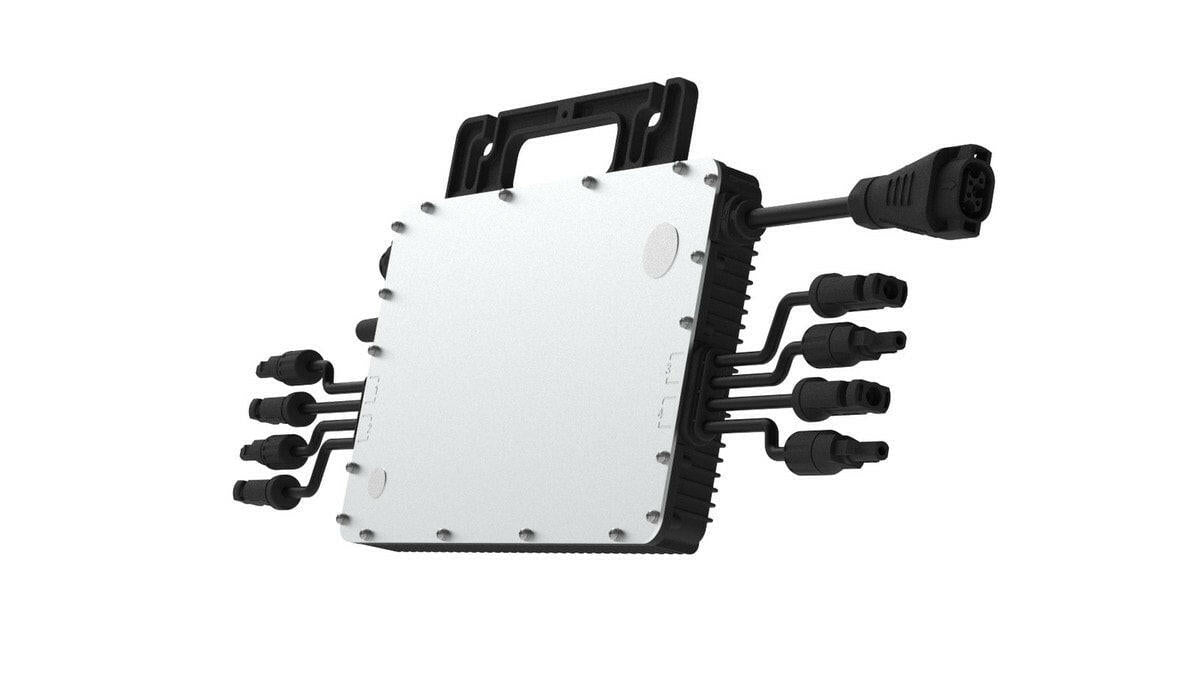

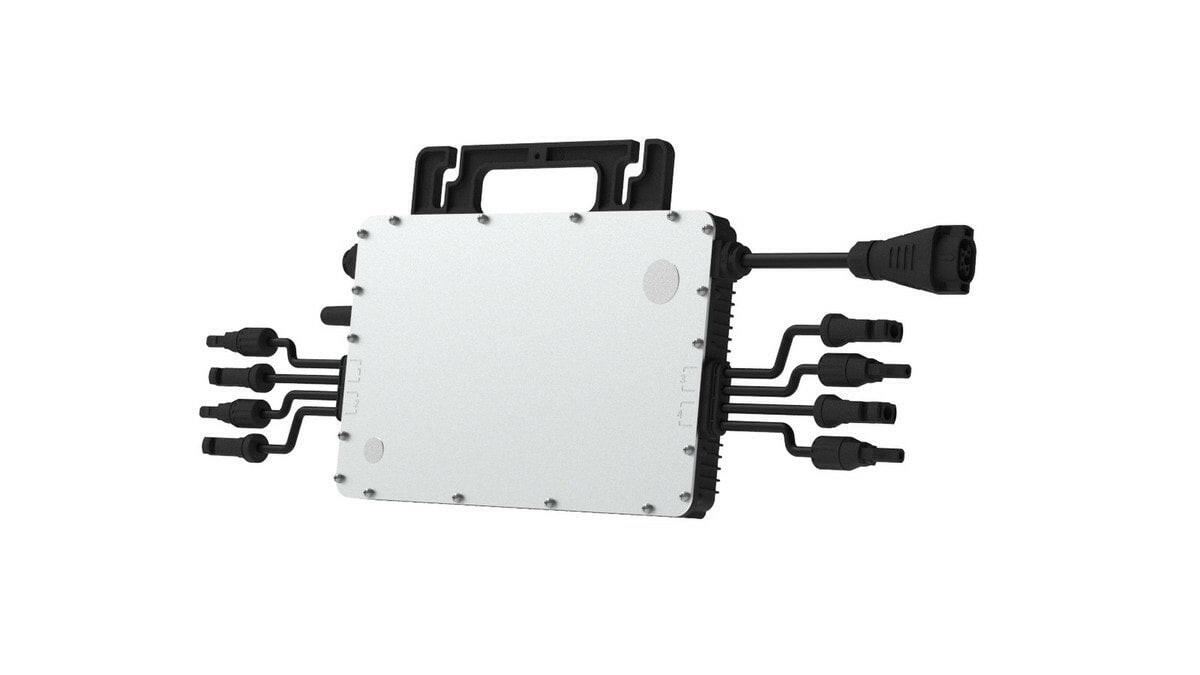

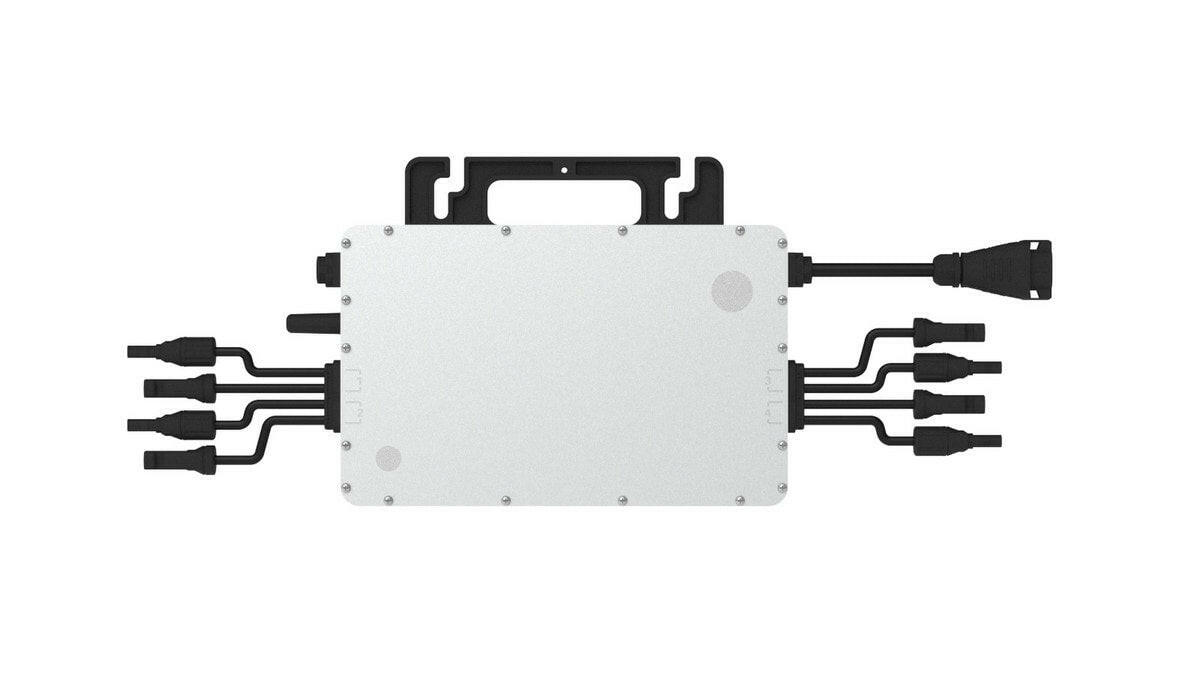

Hoymiles Power Electronics 4-in-1 Solar Micro Inverter 1500W Grid Tie
Regular price
$368.00
Sale price
$368.00
Regular price
Unit price
-
Estimated Delivery:Dec 01 - Dec 05
-
Free Shipping & Returns: On all orders over $75
Hoymiles Power Electronics 4-in-1 Solar Micro Inverter 1500W Grid Tie
Regular price
$368.00
Sale price
$368.00
Regular price
Unit price
Product description
Shipping & Return
Hoymiles 4-in-1 microinverter is one of the most cost-effective module-level solar solutions, as it can support up to 4 panels at once and maximize the PV production of your installation. With a maximum DC voltage of 60 volts, Hoymiles microinverter is a PV Rapid Shutdown Equipment and conforms with NEC-2017 and NEC-2020 Article 690.12 and CEC-2021 Sec 64-218.
Features
- Easy installation, just plug and play
- With reactive power control, compliant with VDE-AR-N 4105: 2018 & EN 50549-1: 2019
- Compliant with U.S. NEC-2017&NEC-2020 690.12 rapid shutdown
- External antenna for stronger communication with DTU
-
High reliability, NEMA 6 (IP67) enclosure, 6000 V surge protection
Specifications
- Series: HM-1500NT
- Overall Length: 176 mm
- Overall Width: 280 mm
- Overall Depth: 33 mm
- Input Voltage: 60 V
- Power Rating: 1500 VA
- Input Current: 4 A
- Amperage Rating: 5.99/6.91 A
- Efficiency: 99.8%
- Frequency Rating: 60 Hz
- Power Factor: 0.8
- Cooling Type: Natural Convection
- Temperature Rating: -40 to 65 deg F
- Output Voltage: 240/211-264, 208/183-229 V
