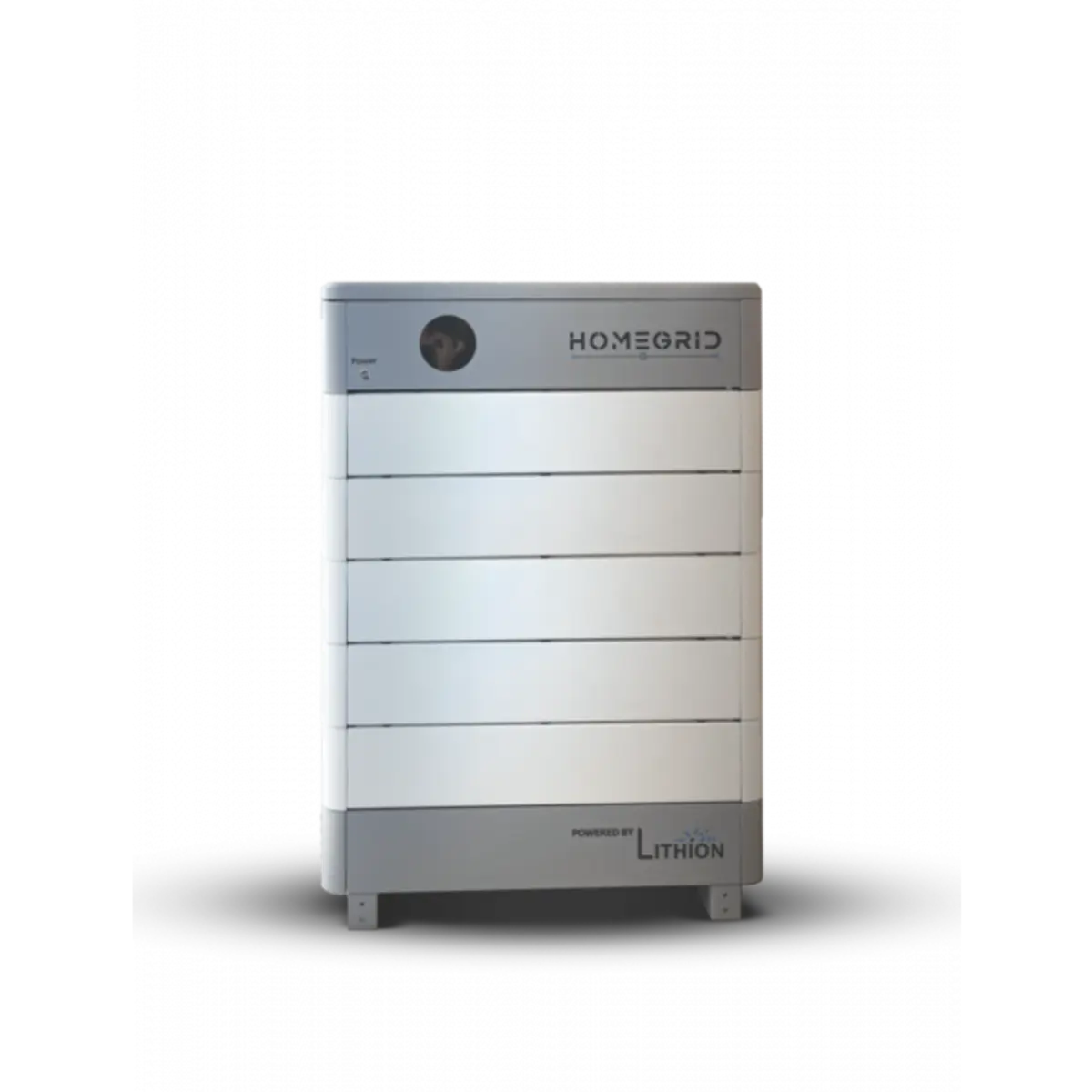

HomeGrid Stack'd Series LFP Batteries - 5 Stack of Batteries

With the highest output and capacity range available, the Stack'd Series battery is the right solution for residential and small commercial storage projects. From small off-grid cabins, to peak rate TOU (time-of-use) offset, family homes in suburbia, and small commercial projects, the HomeGrid Stack'd Series battery is the proven best choice.

Features

• High Capacity 38.4 kWh - Up to 15 units in parallel
• High power - 14.4 kW
• Live Communications - Real time display, mobile access, established closed-loop communications
• Modular Design - Each module has a capacity of 4.8 kWh, with each Stack supporting 2-8 modules


Specifications

• Series/Model: STACK'D
• Number of Modules: 5
• Capacity: 24 kWh
• Power Rating: 14.4 kW
• Surge (10 sec): 24 kW
• Battery Chemistry: Lithium Iron Phosphate
• Battery Capacity: 500 Ah
• Nominal DC Voltage: 48 V
• DC Voltage Range: 46-56 V
• Maximum Charge Current: 300 A
• Maximum Discharge Current: 300 A
• Maximum Pulse Current DC: 500 A for 10 sec
• Charge Temperature: 32-113°F
• Discharge Temperature: 14-140°F
• Enclosure Rating: IP55/NEMA 3R
• Mounting Type: Floor Standing
• Communication: CAN/RS485
• Efficiency: >98%
• Scalability: 15 Units in Parallel (576 kWh)
• Compatible Inverters: Sol-Ark, Schneider, SMA, Victron, Outback
• Battery Module Start Heating Temperature: 37.4°F
• Battery Module Stop Heating Temperature: 42.8°F
• Battery Module Heating Power: 150 W
• Standards: UL 1642, UL 1973, UN 38.3, UL 9540, UL 9540a, CEC, SGIP, OGPe
• Dimensions: 29 in (L) x 15.75 in (W) x 41 in (H)
• Weight: 628 lb


Documents

•  Specification Sheet
