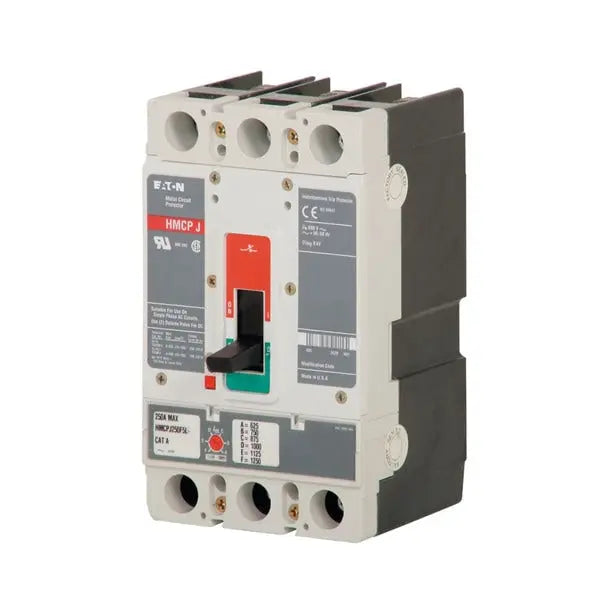

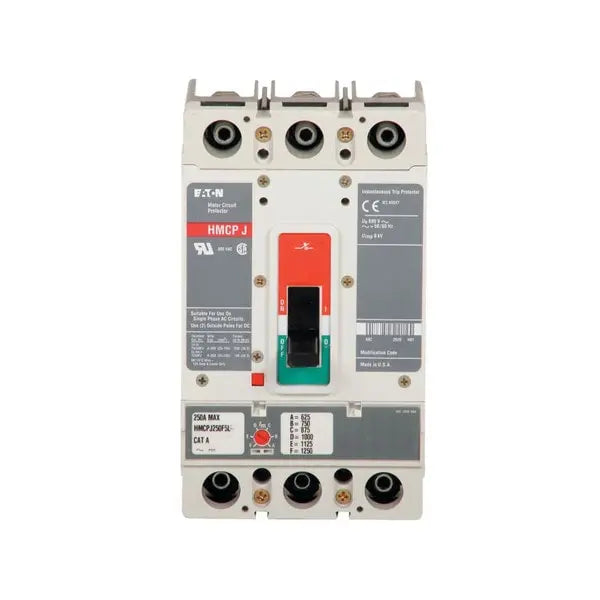

HMCPJ250G5L - Eaton Molded Case Circuit Breaker Accessory Motor Protection

The Eaton Motor Circuit Protector is engineered to provide adjustable protection for motors in industrial applications. This 250A, three-pole unit offers flexibility with adjustable current settings, ensuring robust protection against overloads and short circuits. It is compatible with Frame JG and supports system voltages of up to 600V, ensuring durability and reliability in demanding environments. Part of Eaton’s Series G, it integrates seamlessly with related systems.

Key Features:

• Adjustable protection for motor applications
• Rated at 250A with a three-pole configuration
• Supports system voltages up to 600V
• Designed for use with Frame JG and Eaton Series G systems
• Non-aluminum construction for enhanced durability

This unit is an ideal solution for safeguarding motors in high-demand electrical systems.

Documents:

Application notes
Application of Tap Rules to Molded Case Breaker Terminals

Brochures
Power metering and monitoring with Modbus RTU product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Flex shaft handle installation tutorial
