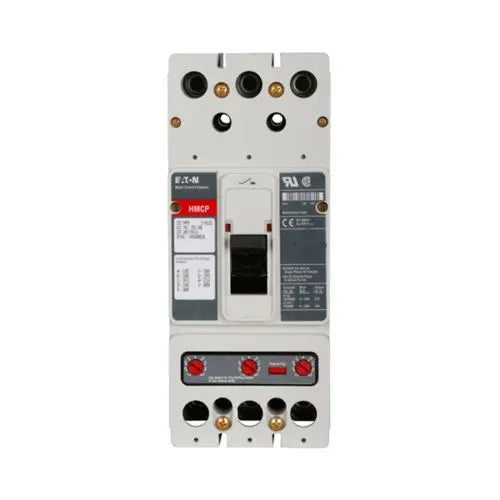

HMCP250W5C - Eaton Molded Case Circuit Breaker Accessory Motor Protection

Eaton Molded Case Circuit Breaker Accessory Motor Protection is designed to provide comprehensive protection for motors in various industrial and commercial applications. This Motor Circuit Protector is ideal for safeguarding motors from overloads, short circuits, and other potential hazards. With a 250 A rating and a three-pole configuration, it is compatible with Eaton's J-K frame circuit breakers. It supports voltages up to 600 V AC and 250 V DC, ensuring broad versatility for different power systems.

Key Features:

• Rated for 250 A, offering optimal protection for motor circuits
• Three-pole configuration for effective motor protection
• Compatible with J-K frame circuit breakers, supporting 1250-2500 A
• Rated for 600 V AC and 250 V DC for a wide range of applications
• Non-aluminum construction for durability and reliability

This Eaton Motor Circuit Protector ensures reliable motor protection, making it a perfect choice for applications requiring high-performance and safety standards.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers

Brochures
Current limiting Series C molded case circuit breakers product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Flex shaft handle installation tutorial

Specifications and datasheets
Series C G-Frame molded case circuit breakers time current curves

Series C G-Frame molded case circuit breakers time current curves
