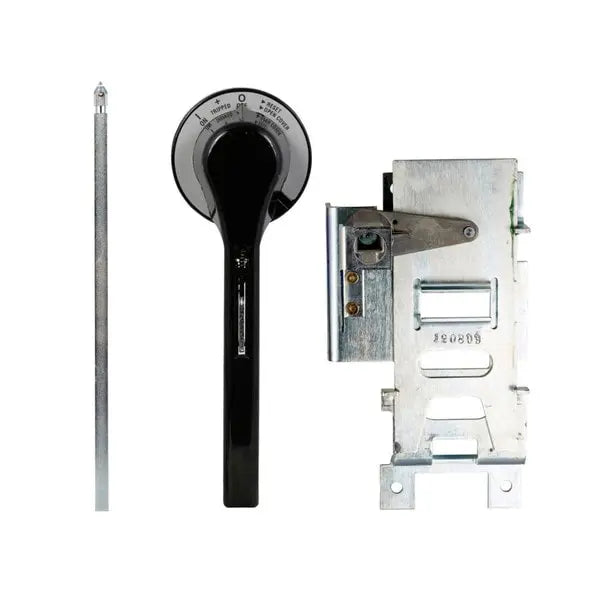

HM5R16X - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

Eaton Molded Case Circuit Breaker Accessory Handle Mechanism is a through-the-door rotary handle mechanism specifically designed for N-frame circuit breakers. Compatible with Frame J-K and part of the Series C line, it ensures dependable performance for load applications. With a 16-inch length, this handle mechanism offers convenient external access and secure breaker operation in demanding environments.

Key Features:

• Handle Type: Through-The-Door Rotary
• Frame Compatibility: N-Frame, Frame J-K
• Series: Series C
• Length: 16 In
• Application: Load

This solution provides enhanced control and safety for circuit breakers in industrial and commercial enclosures.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
UL listed 100%-rated molded case circuit breakers

Brochures
Motor protection circuit breakers product aid
Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Flex shaft handle installation tutorial

Specifications and datasheets
MOEM MCCB product selection guide
