HM1R24X - Eaton Molded Case Circuit Breaker Accessory Handle Mechanism

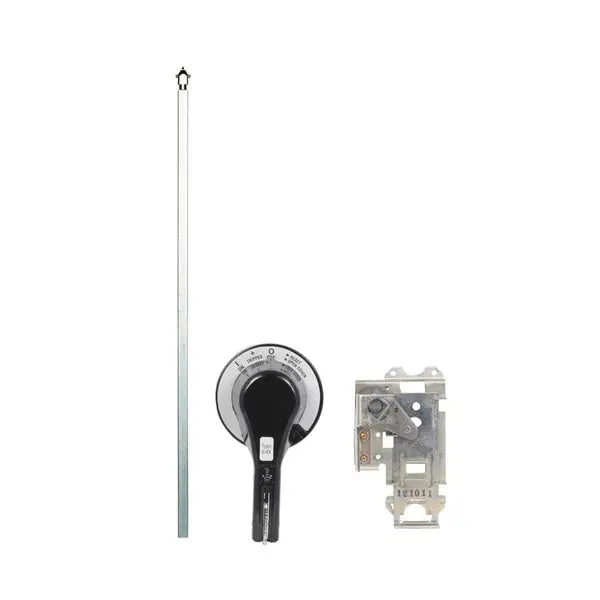

Eaton Molded Case Circuit Breaker Accessory Handle Mechanism is a through-the-door rotary handle mechanism designed for F-frame circuit breakers. Part of Eaton’s Series C, this handle mechanism provides easy control and operation, ensuring reliable performance in load applications. With a 24-inch length, it is ideal for installations where access to the breaker is required from outside the enclosure.

Key Features:

• Handle Type: Through-The-Door Rotary
• Frame Compatibility: F-Frame
• Series: Series C
• Length: 24 In
• Application: Load

This handle mechanism is engineered for efficient operation and is designed for use in various industrial and commercial settings.

Documents:

Application notes
Application of Multi-Wire Terminals for Molded Case Circuit Breakers
Application of Tap Rules to Molded Case Breaker Terminals

Brochures
StrandAble terminals product aid

Catalogs
Circuit Protection, Molded Case Circuit Breakers, Volume 4, Tab 2

Multimedia
Flex shaft handle installation tutorial

Specifications and datasheets
Eaton Specification Sheet - HM1R24X
